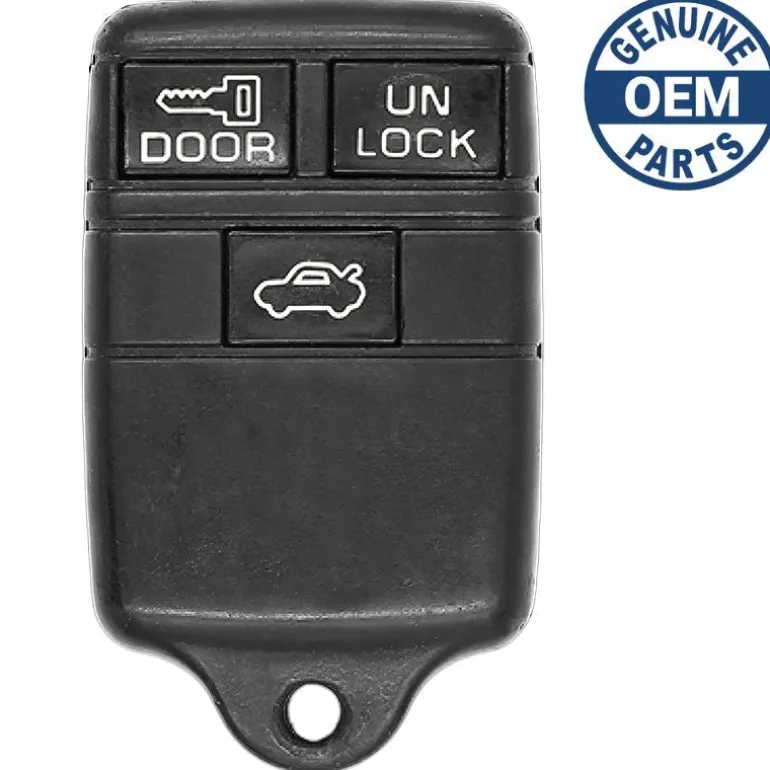

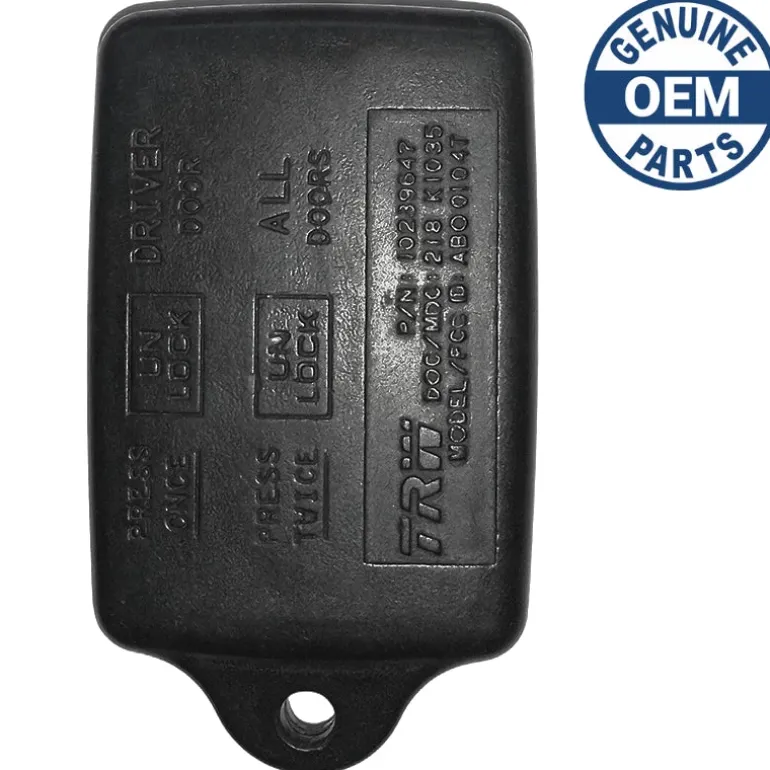

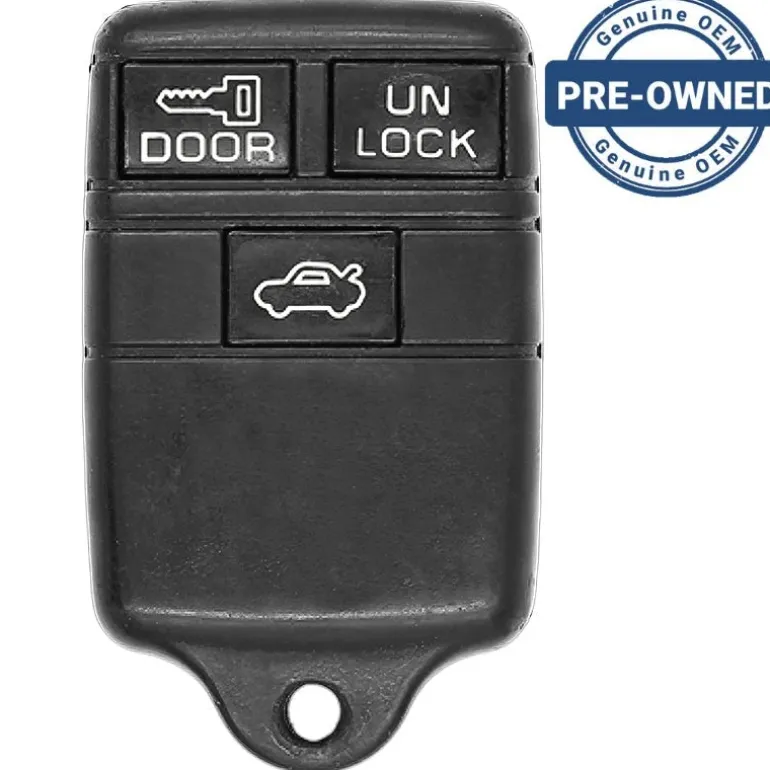

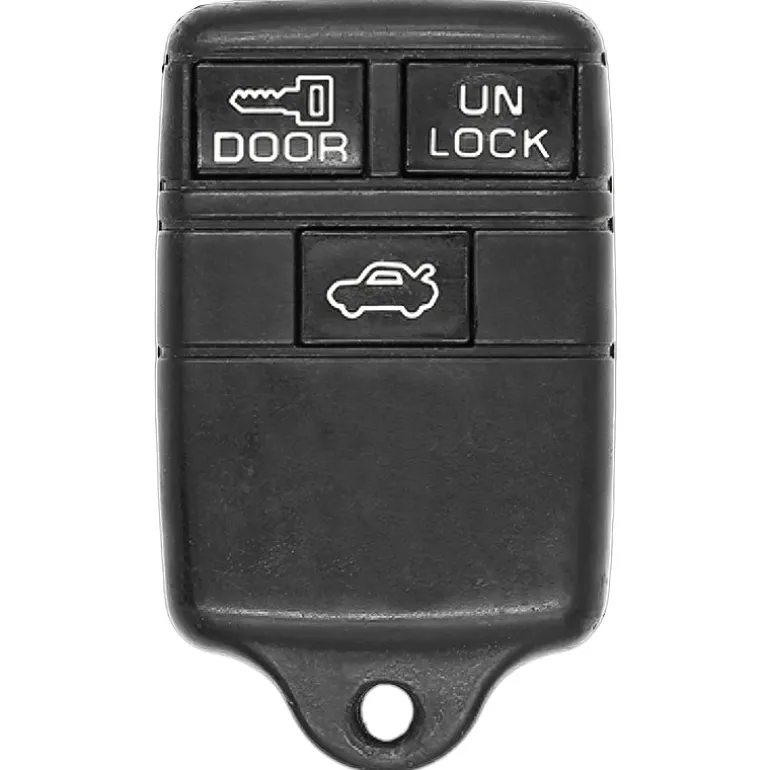

1990 Pontiac Bonneville Remote

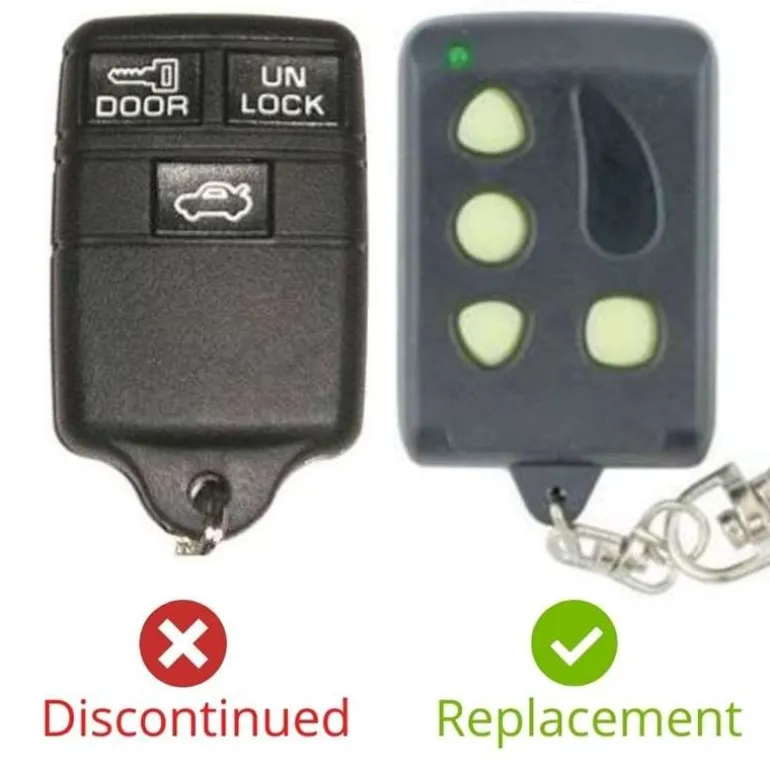

Important:Please make sure that your smart key fob looks identical and matches any of the part numbers or FCC IDs listed below. Contact Us with your VIN if you don’t have an existing remote for comparison.

Part Numbers: 88959920, 10205241, 10205239, 10205240, 12522338, 10063533, 10205239, 12522337, 12522339, 12522356, 10097895, 10097894, 10205674, 10092854, 10097894, 10063534, and 10178738

FCC ID: ABO0103T, GQ43VT1, ABO0104T, and ABO0116T

Buttons: Lock, Unlock, and Trunk

Frequency: 315 Mhz

Remote Programming:

Battery: CR2032 (included)

1. Make sure ignition is in the OFF position.
2. Locate the programming connector behind the passenger side instrument panel (accessed by opening the glove box and looking to the top left side, where it is held in place by a clip). It is a plastic connector with two wires leading up to it. The connector is not plugged into anything. You will have to pull out the inner tray of the glove compartment to access the connector.
3. The programming connector has two terminals. Connect both terminals with a suitable jumper wire. The keyless entry module will cycle the door lock motors once. Make sure the jumper wire remains connected throughout the procedure.
4. Press the unlock button on the first remote. In response the keyless entry module will cycle the door lock motors again.
5. If a second remote is to be programmed (including your old one), press the unlock button on the second remote. Door locks cycle again.
6. Remove jumper wire.
