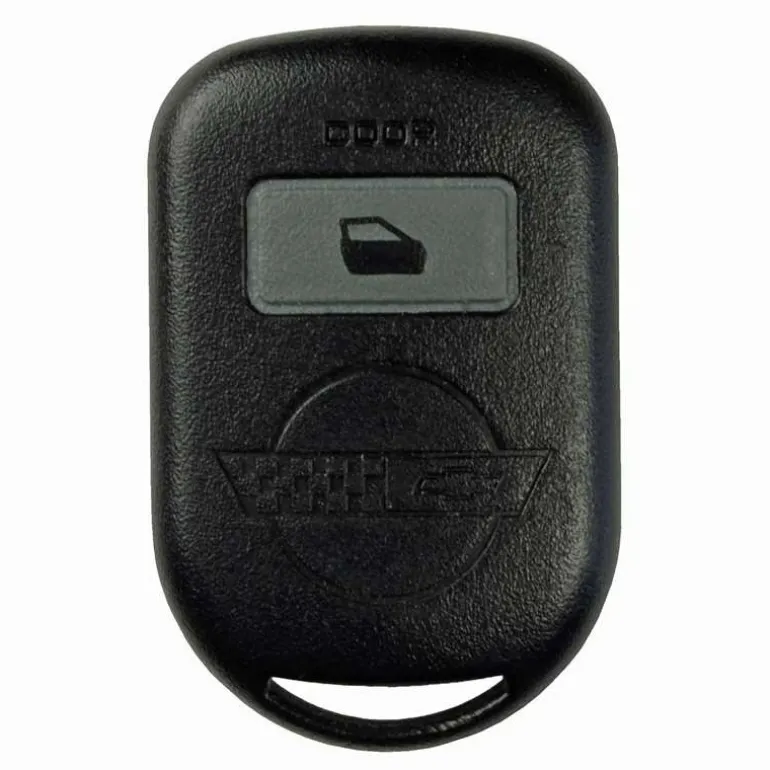

1993 Chevrolet Corvette Remote FCC ID: PNZ0202T, PN: 88960924

Important:Please make sure that your smart key fob looks identical and matches any of the part numbers or FCC IDs listed below. Contact Us with your VIN if you don’t have an existing remote for comparison.

Part Numbers: 88960924

FCC ID: PNZ0202TBO0202T

Buttons:

Frequency:

Remote Programming:

Battery: (included)

1. Move all remotes out of range.
2. Make sure the radio is off.
3. Turn the ignition to the Run position (as far as it goes without starting the engine.)
4. Press and release the TRIP ODO button.
5. Again press the TRIP ODO button and hold it down for 5 seconds and release.
6. Within 5 seconds push and hold the FUEL INFO button for 10 seconds. The passive keyless entry telltale lamp will come on continuously.
7. Turn the ignition to the LOCK position. The passive keyless entry telltale lamp will now start to flash.
8. Up to 3 remotes can be programmed. The lamp will flash the number of the remote to be programmed. It will flash once for the first remote, twice for the second remote, and three times for the third.) When a remote is within range a code is stored, the lamp will be illuminated continuously as long as the remote remains within reception range. When a remote that has been programmed already is brought back into range the lamp will flash until a new remote is brought into range. Once the three remotes have been programmed and the third remote is out of range the lamp will not illuminate. It is important to move a programmed remote out of range before programming the next one.
9. Remove key from ignition.
