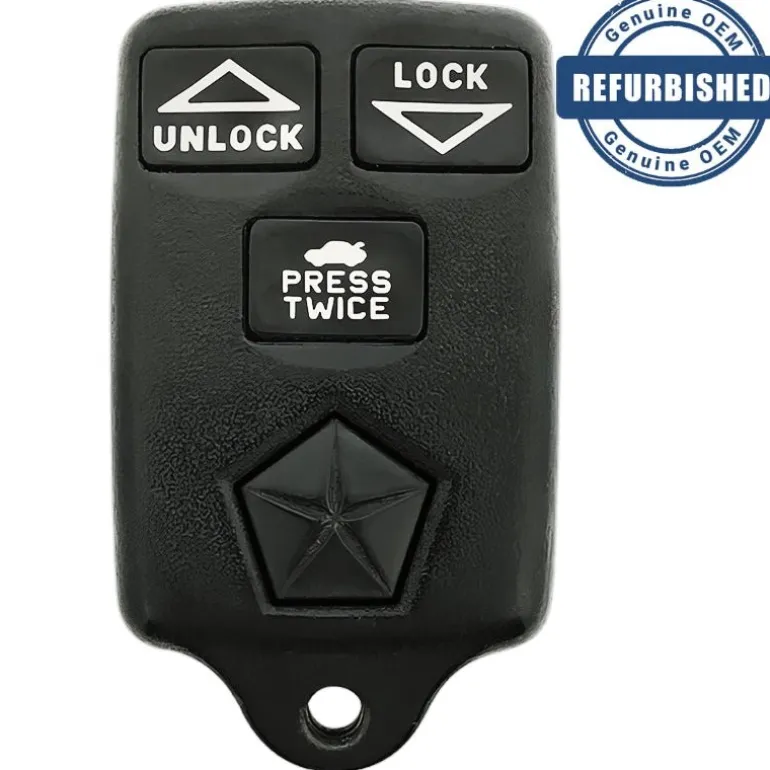

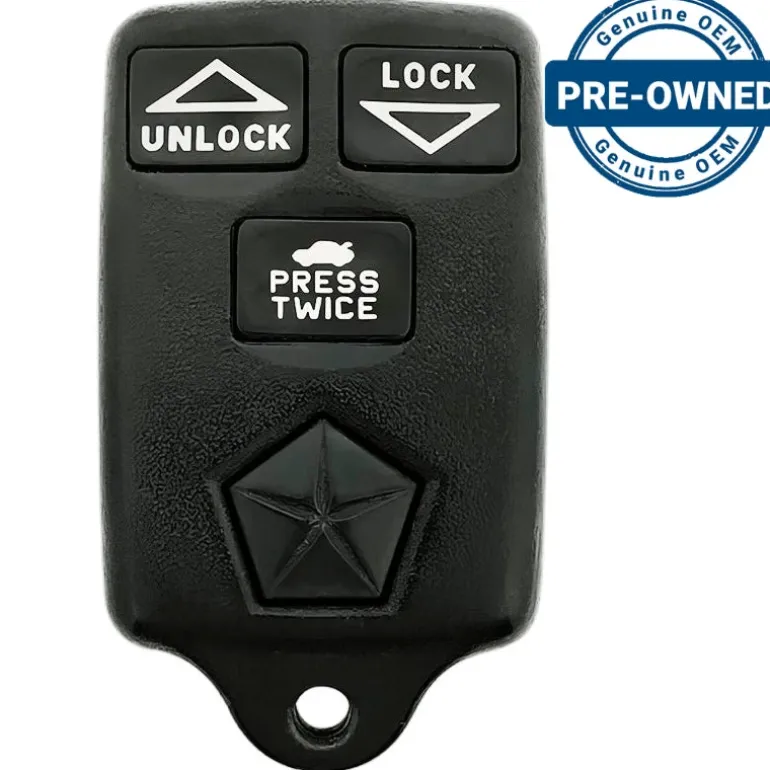

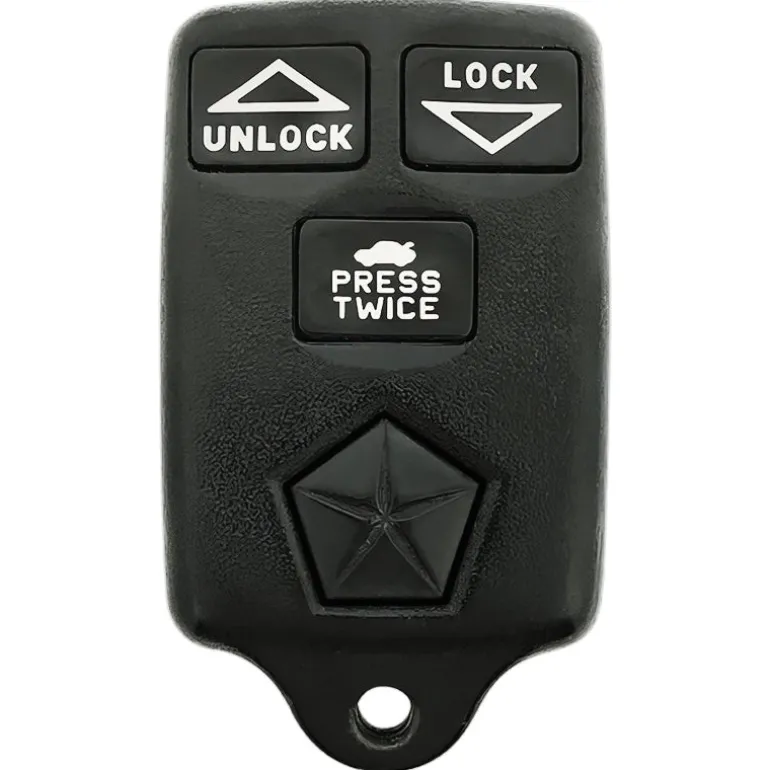

1993 Chrysler Imperial Remote GQ43VT5T GQ43VT7T

Important:Please make sure that your smart key fob looks identical and matches any of the part numbers or FCC IDs listed below. Contact Us with your VIN if you don’t have an existing remote for comparison.

Part Numbers: 4688527, 04759136AB, 4759136, 04469341AB, and 4469341

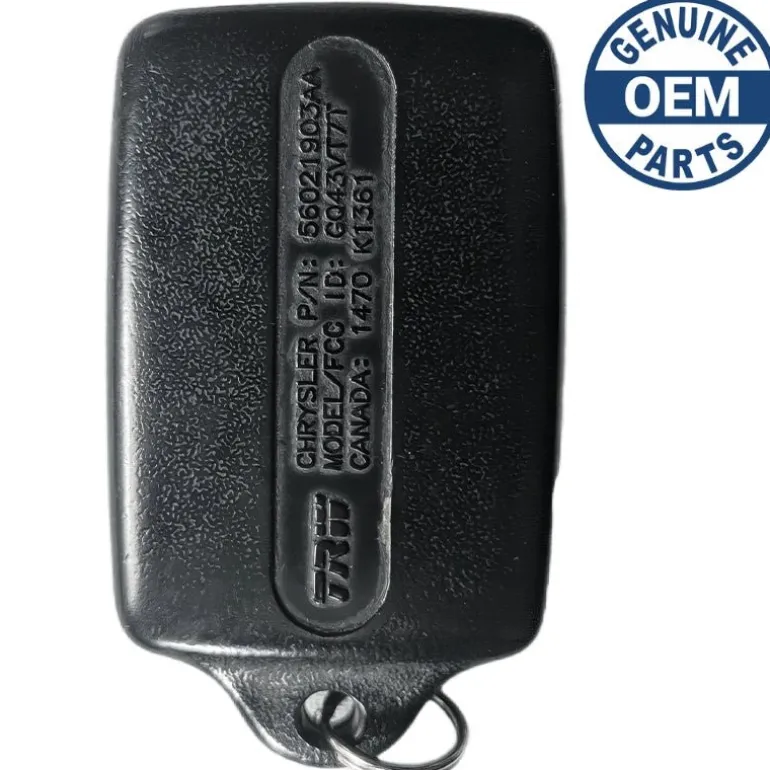

FCC ID: GQ43VT5T and GQ43VT7T

Buttons: Lock, Unlock, and Trunk

Frequency: 315 MHz

Remote Programming:

Battery: CR2016 (included)

1. Locate the keyless entry program line – a dark green wire with a molded plastic insulator on the end. The program line is located under the left side of the instrument panel. The wire is taped back to the harness (left of the steering column near the floor) and terminated with a black rubber mold.
2. Connect the program line from the Remote Keyless Entry Module to ground with a suitable jumper wire.
3. Insert key in ignition and turn to the ON position.
4. Press any button on the remote to be programmed. If there is a second remote to be programmed then press a button on that remote. The locks will cycle each time a remote is added.
5. Disconnect the programming line from ground, turn ignition off and remove key.
