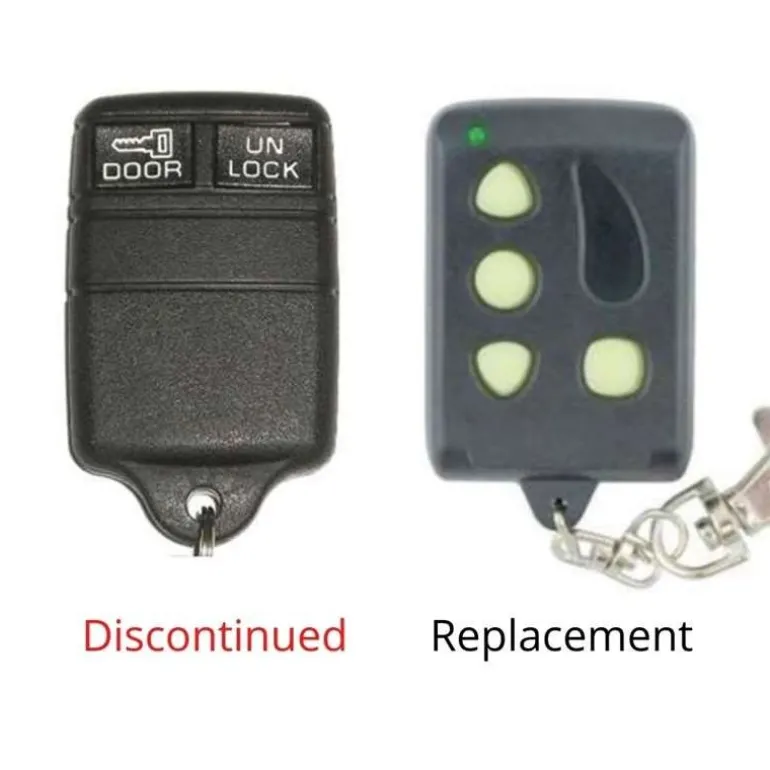

1994 GMC Sonoma 15725422 Remote ABO0104T

Important:Please make sure that your smart key fob looks identical and matches any of the part numbers or FCC IDs listed below. Contact Us with your VIN if you don’t have an existing remote for comparison.

Part Numbers: 15725422 and 15955701

FCC ID: ABO0104T

Buttons:

Frequency:

Remote Programming:

Battery: (included)

1. Insert the key in ignition and leave in the OFF position.
2. Locate the Data Link Connector (DLC) under driver’s side dashboard. Use the figure below to find the A and G pins.
3. Connect pins A and G of the DLC with a suitable electric wire. Receiver will respond by locking and unlocking doors within 2 seconds.
4. Press the UNLOCK button on the first remote to be programmed. Vehicle will respond by locking and unlocking the doors.
5. Press UNLOCK button on second remote to be programmed. Vehicle will respond by locking and unlocking the doors.
6. Disconnect jumper wire between pins A and G.
