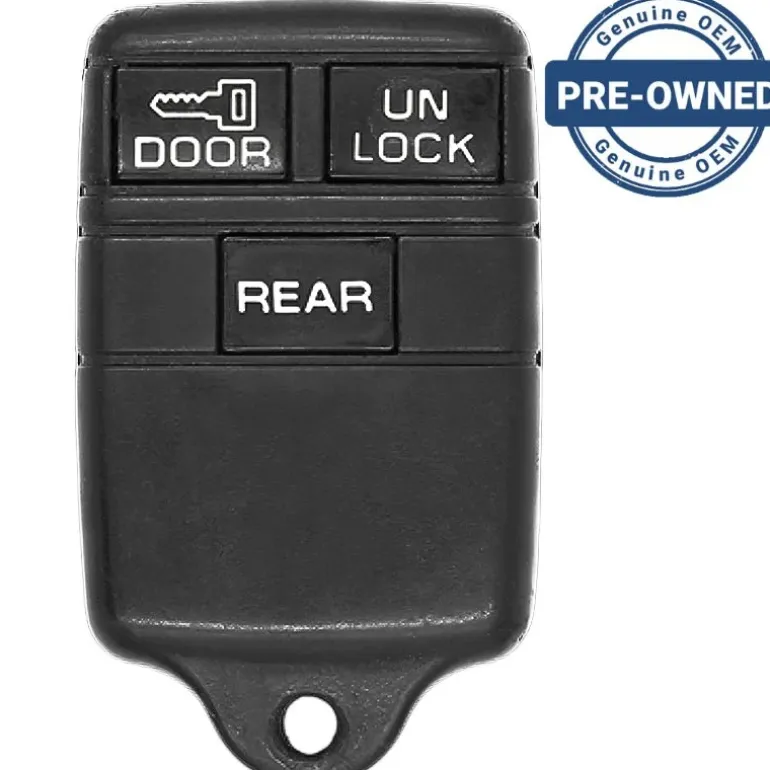

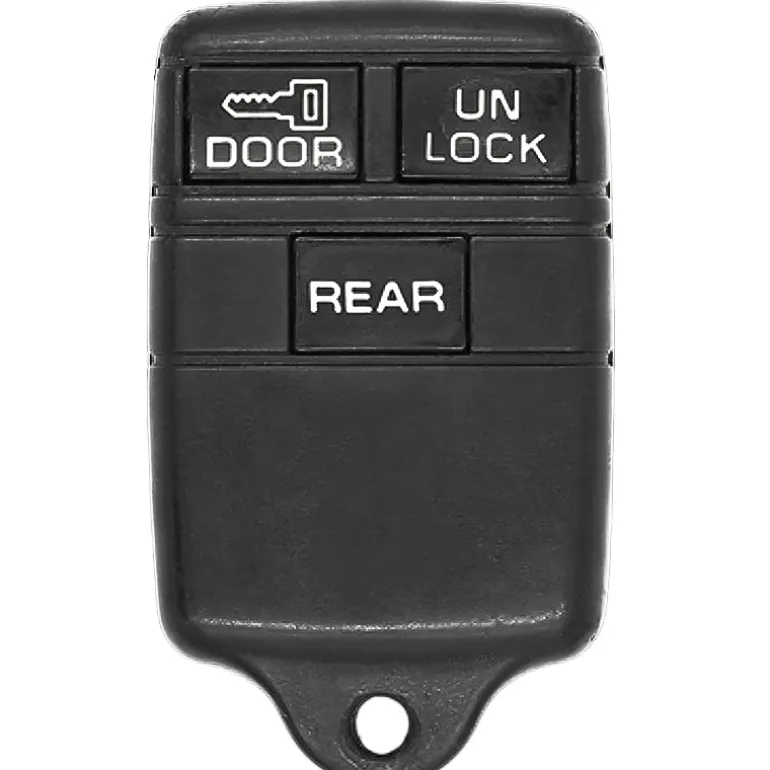

1994 Oldsmobile Bravada Remote PN: 15725423 10239647

Important:Please make sure that your smart key fob looks identical and matches any of the part numbers or FCC IDs listed below. Contact Us with your VIN if you don’t have an existing remote for comparison.

Part Numbers: 15692636, 15955515, 15955516, 25609144, 25555951, 15692336, 10239647, 25559364, 25609144, 15657587, 15955702, 15725423, and 15731442

FCC ID: ABO0103T and ABO0104T

Buttons:

Frequency:

Remote Programming:

Battery: (included)

1. Locate the Data Link Connector (DLC) underneath the driver’s side dashboard. Use diagram to the right as a map for your DLC (they usually aren’t lettered). The view in the picture is looking straight into the cavities of the DLC.
2. Ground pin G of fre Data Link Connector (DLC) with suitable electrical wire. Receiver will respond by locking and unlocking doors within 2 seconds.
3. Press any button of the first transmitter to be programmed. The control module will respond by locking/unlocking doors and activating rear window release.
4. Press any button of the second transmitter to be programmed (if used). The control module will respond by locking/unlocking doors and activating the rear window release.
5. Remove the ground applied to pin G of the Data Link Connector (DLC).
