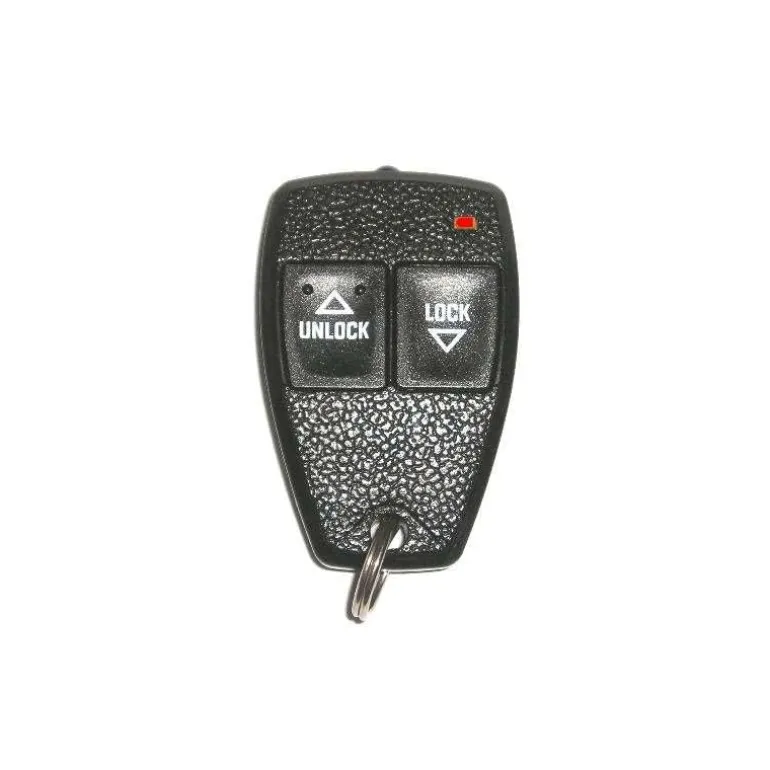

1995 Jeep Grand Cherokee Infrared Remote 2 Button

Important:Please make sure that your smart key fob looks identical and matches any of the part numbers or FCC IDs listed below. Contact Us with your VIN if you don’t have an existing remote for comparison.

Part Numbers: 56009031

FCC ID:

Buttons:

Frequency:

Remote Programming:

Battery: (included)

1. Open the driver’s door of the vehicle. Leave it open through the programming procedure.
2. Move the driver’s door mechanical door lock lever – not the power lock switch – to the lock position.
3. Insert the ignition key and turn it to the RUN position (as far as it goes without cranking the engine.)
4. Within 20 seconds, aim a remote at the receiver dome and press the LOCK button for at least 5 seconds. Once the receiver accepts the programming code the driver’s door will unlock.
5. Once the first remote has been programmed, additional remotes up to four may be programmed. Within 20 seconds of the previous remote programming, move the mechanical door lock lever to the LOCK position. Aim the next remote at the receiver dome and press LOCK for at least 5 seconds. The door lock will cycle again.
6. The ignition must be turned off and back on within 20 seconds of the last remote for all programming to be saved. At that time all previously programmed remotes will be unprogrammed if you didn’t program them just before.
