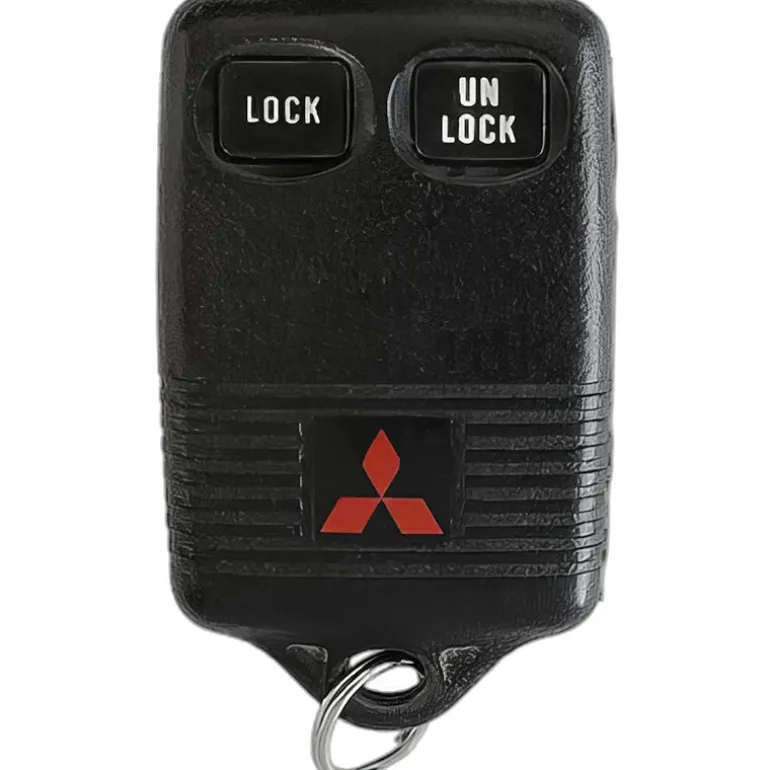

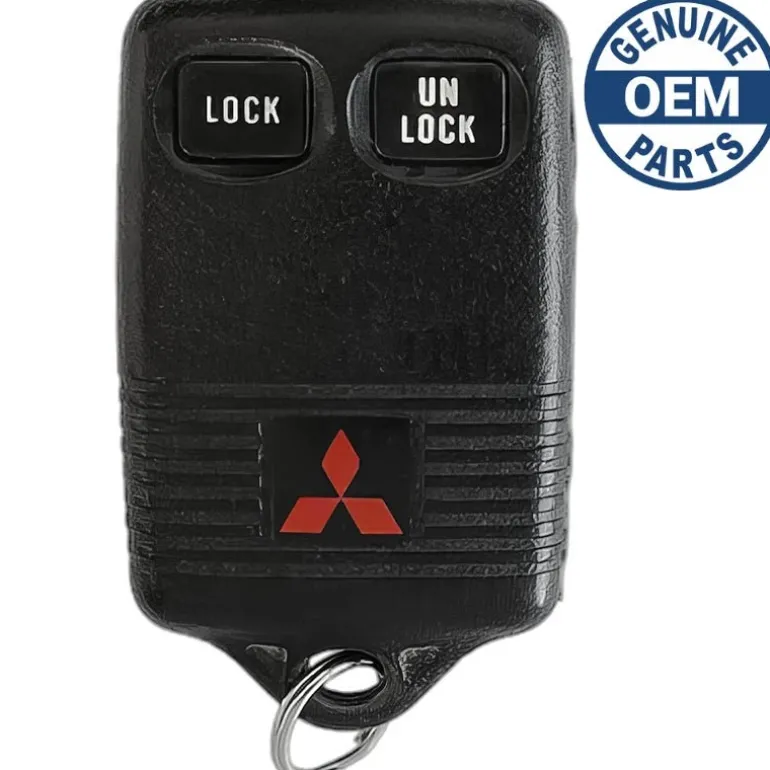

1995 Mitsubishi Galant Remote PN: A993NC1X03

Important:Please make sure that your smart key fob looks identical and matches any of the part numbers or FCC IDs listed below. Contact Us with your VIN if you don’t have an existing remote for comparison.

Part Numbers:

FCC ID:

Buttons:

Frequency:

Remote Programming:

Battery: (included)

1. Locate the Prograrn Connector near the keyless entry module using the reference chart below for the appropriate location. The Prograrn Connector is a white plastic connector with two terminals that is NOT plugged into anything.
2. Jumper the two program connector terminals with a suitable jumper wire. The system will respond by locking and then unlocking all doors or chrping the horn.
3. Press the LOCK button on the frst transmitter. All doors wil lock and then unlock, or the horn will chirp, to verfy transmitter signal acceptance.
4. Repeat step 3 for the second transmitter (if any).
5. Remove the jumper wire from the connector.

Receiver Module Locations:

Diamante: Near glove box

Eclipse/Montero: Behind knee bolster on driver’s side

Galant: On blower motor, above glove box
