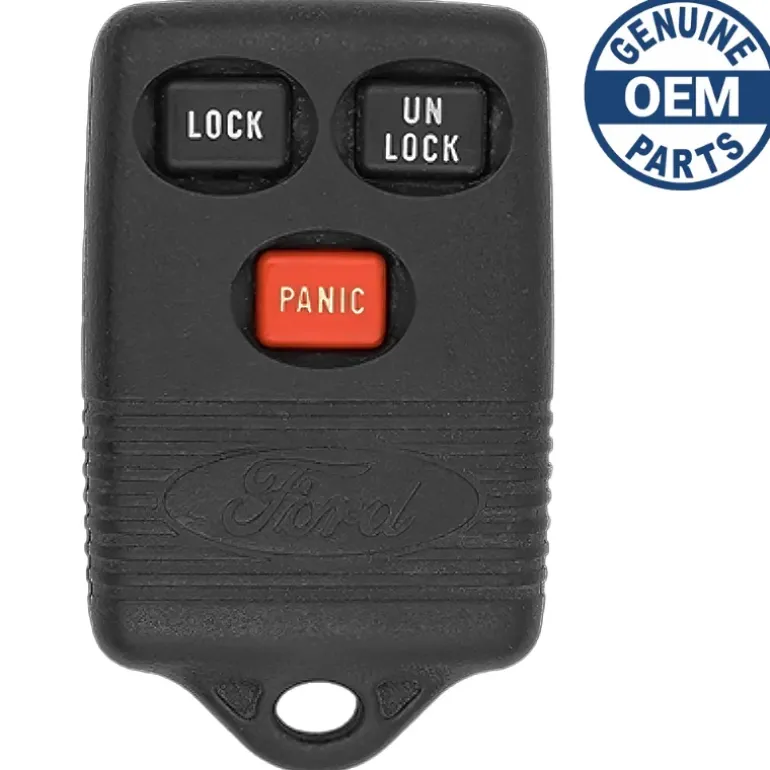

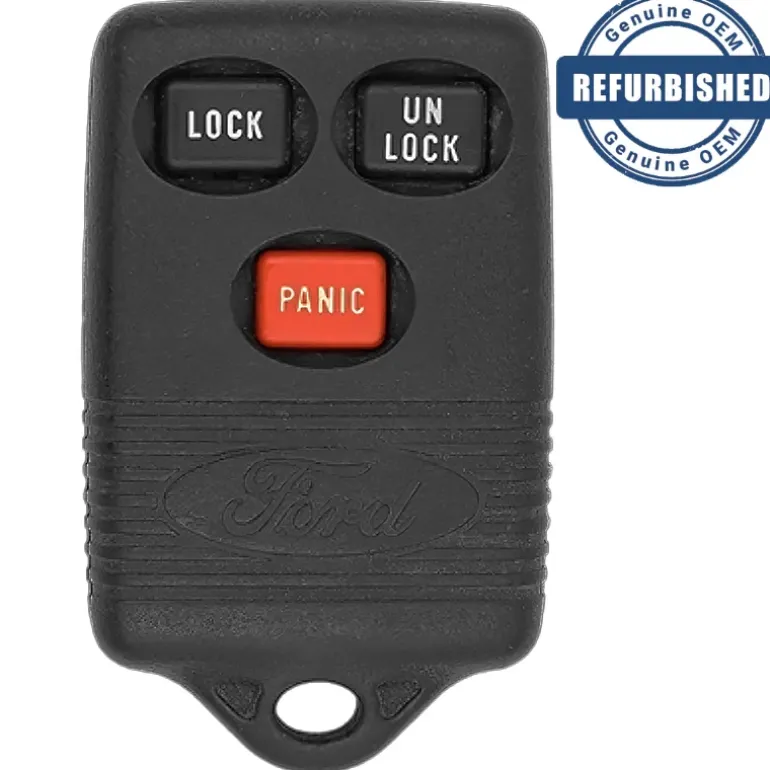

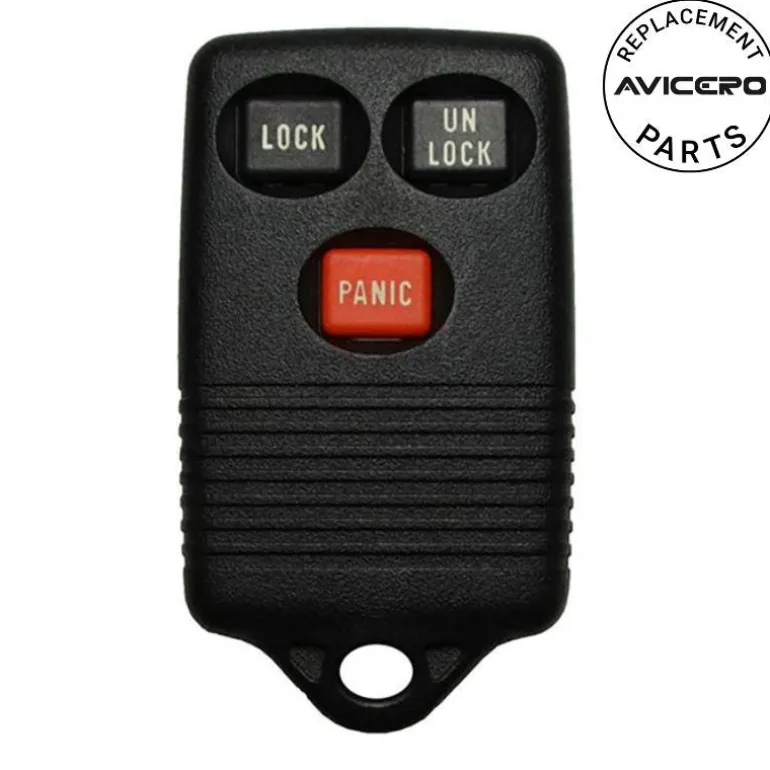

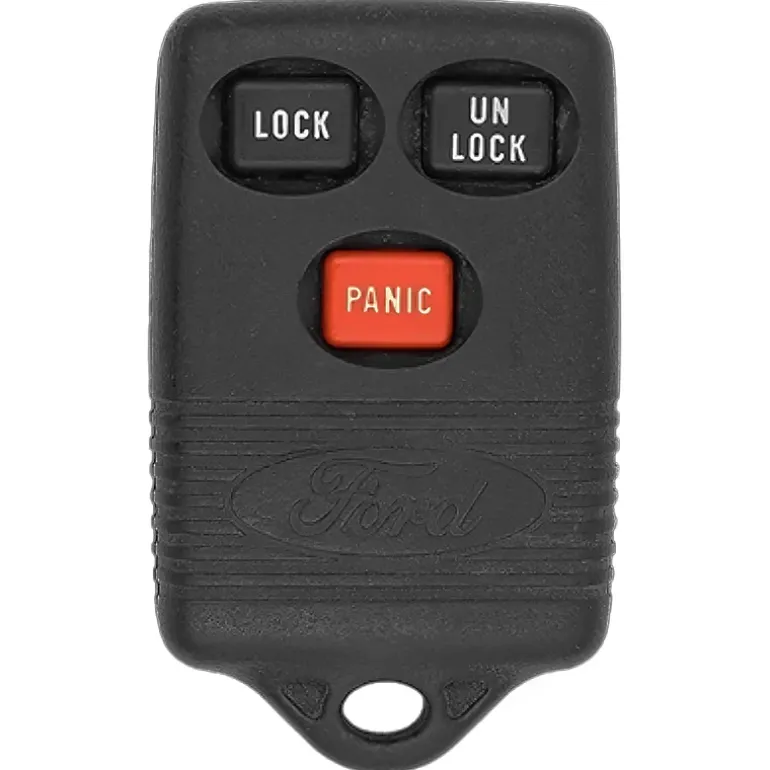

1996 Ford F-150 Remote PN: F6UZ-15K601-AB

Important:Please make sure that your smart key fob looks identical and matches any of the part numbers or FCC IDs listed below. Contact Us with your VIN if you don’t have an existing remote for comparison.

Part Numbers: 3165189 and F6UZ-15K601-AB

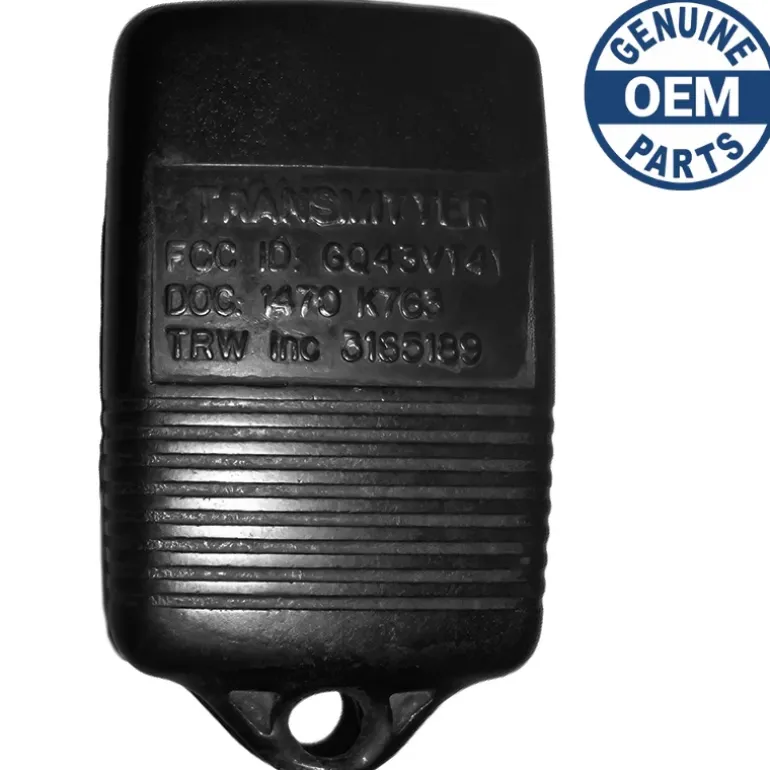

FCC ID: GQ43VT4T

Buttons: Lock, Unlock, and Panic

Frequency: 315 Mhz

Remote Programming: Onboard

Battery: (included)

Note: The programming connector is taped to the wire assembly leading to the keyless entry receiver module (approximately 6 inches from the receiver,) which is located on the driver’s side of the lower instrument panel to the right of the steering column, just above the driver’s right foot. It’s a white or light gray plastic connector with two terminals that is not plugged into anything.

1. Put the ignition to RUN or ACC and momentarily jump the two program connector terminals with a suitable jumper wire. The system will respond by locking and then unlocking all doors.
2. Press any button on the first remote. All doors will lock and unlock to verify programming of that remote.
3. Press any button on each additional remotes (including your old ones) allowing a pause for the door locks to cycle after each remote. The keyless entry system will allow up to four remotes to be programmed.
4. Turn the ignition to OFF. All doors will lock then unlock.
