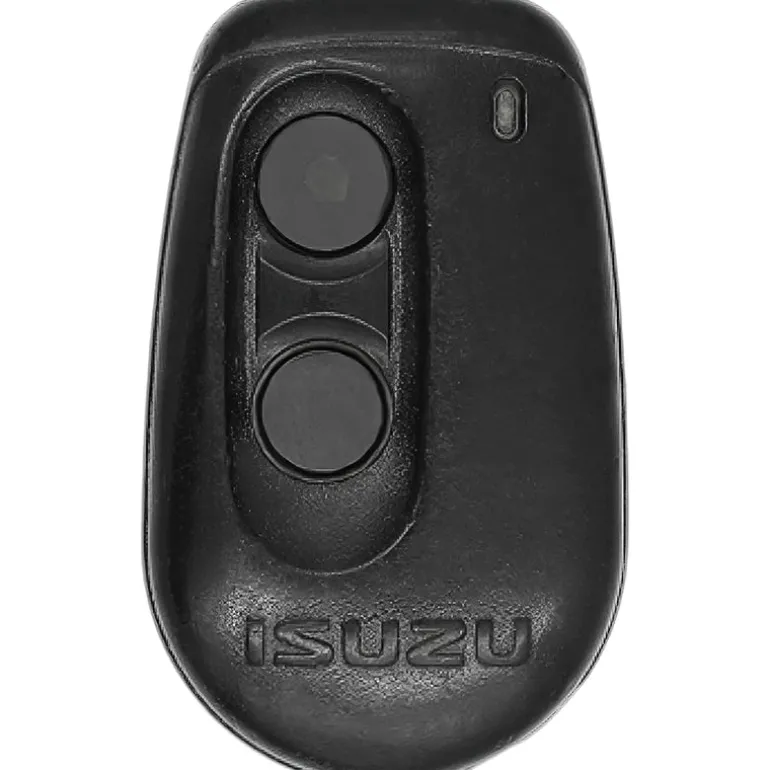

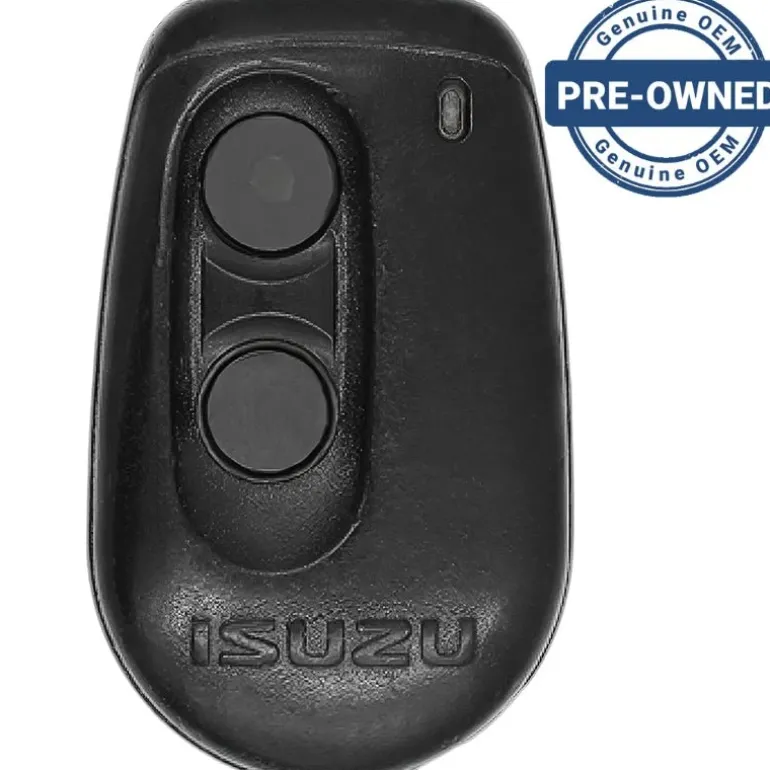

1996 Isuzu Rodeo Isuzu Remote BAB237131-013

Important:Please make sure that your smart key fob looks identical and matches any of the part numbers or FCC IDs listed below. Contact Us with your VIN if you don’t have an existing remote for comparison.

Part Numbers:

FCC ID:

Buttons:

Frequency:

Remote Programming:

Battery: (included)

1. Move the driver’s seat forward and locate the security system control unit mounted on the floor underneath the seat.
2. Turn the ignition switch to ON.
3. Press and hold the green programming button on the side of the control unit with a pencil point. You will be poking through a hole about the diameter of a pencil on the side of the unit. When the system security system LED on the instrument panel comes on, release the programming button. (steps 3 and 4 must be done within 5 seconds of each other.)
4. Press and release the top button of the remote. Check that the LED goes out, the siren chirps once, and the front marker lights flash to confirm.
5. If you have other remotes then repeat steps 3 and 4.
6. Turn the ignition to OFF to exit programming mode.
