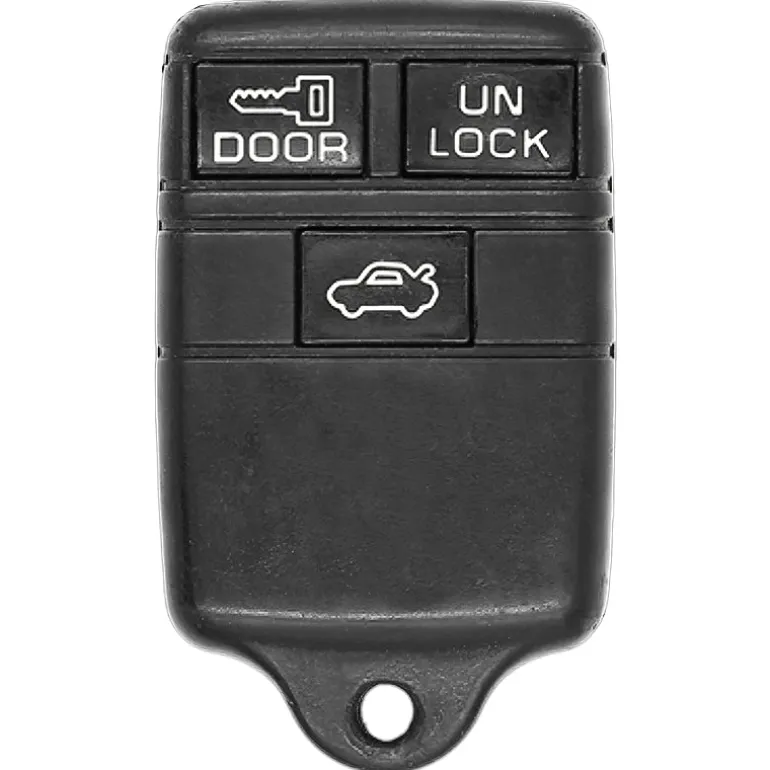

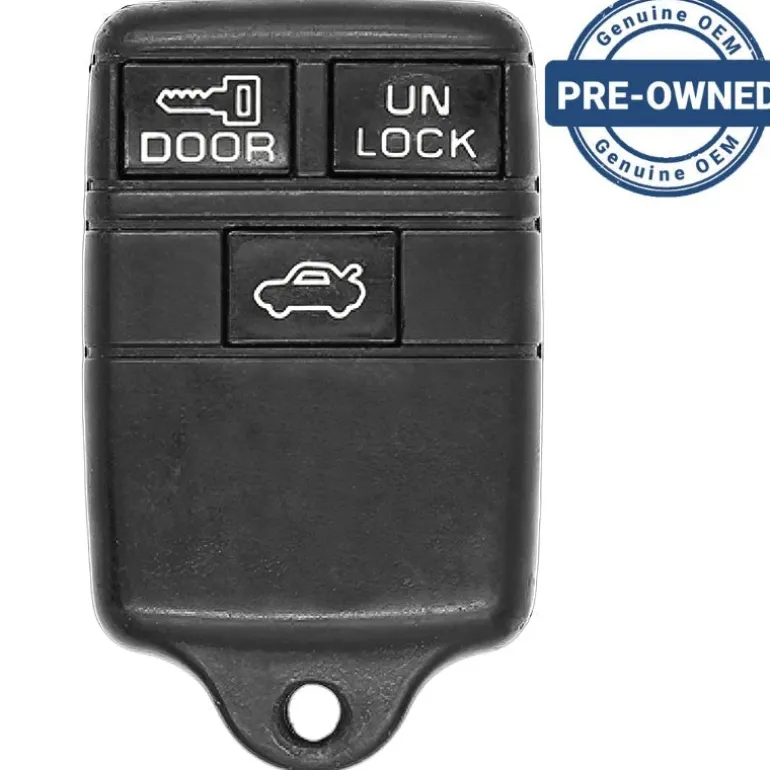

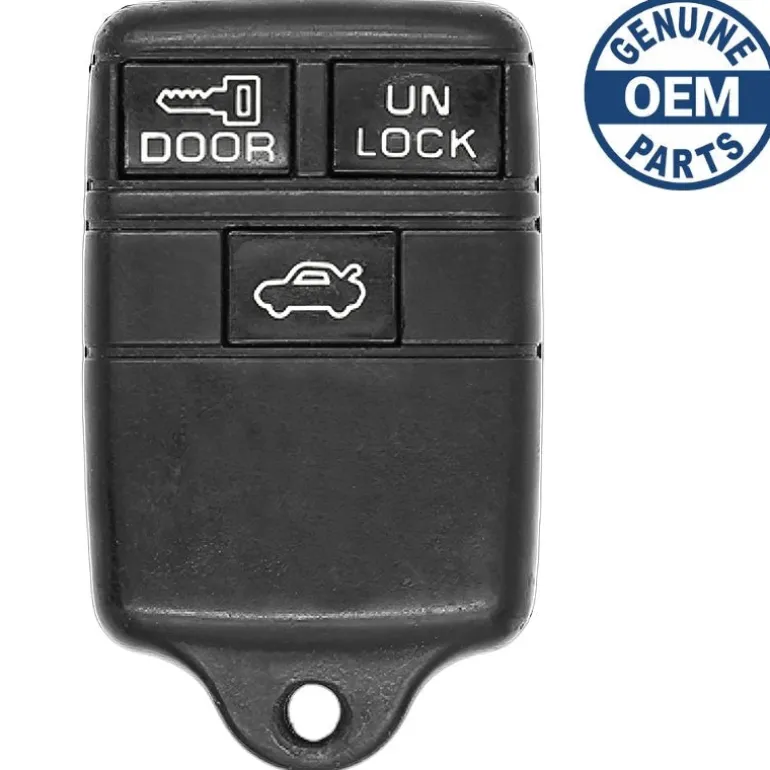

1996 Pontiac Sunfire Remote

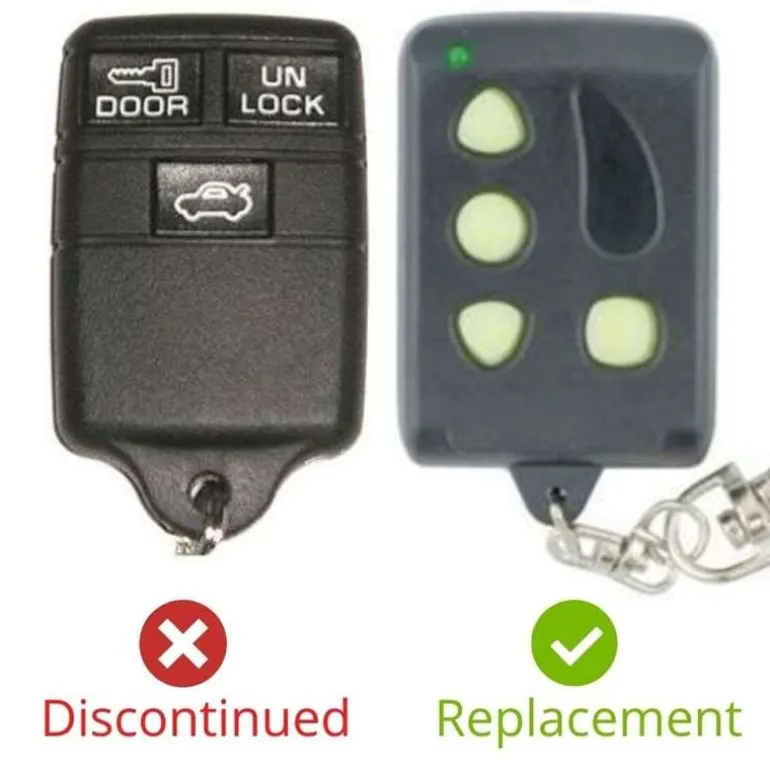

Important:Please make sure that your smart key fob looks identical and matches any of the part numbers or FCC IDs listed below. Contact Us with your VIN if you don’t have an existing remote for comparison.

Part Numbers: 88959920, 10205241, 10205239, 10205240, 12522338, 10063533, 10205239, 12522337, 12522339, 12522356, 10097895, 10097894, 10205674, 10092854, 10097894, 10063534, and 10178738

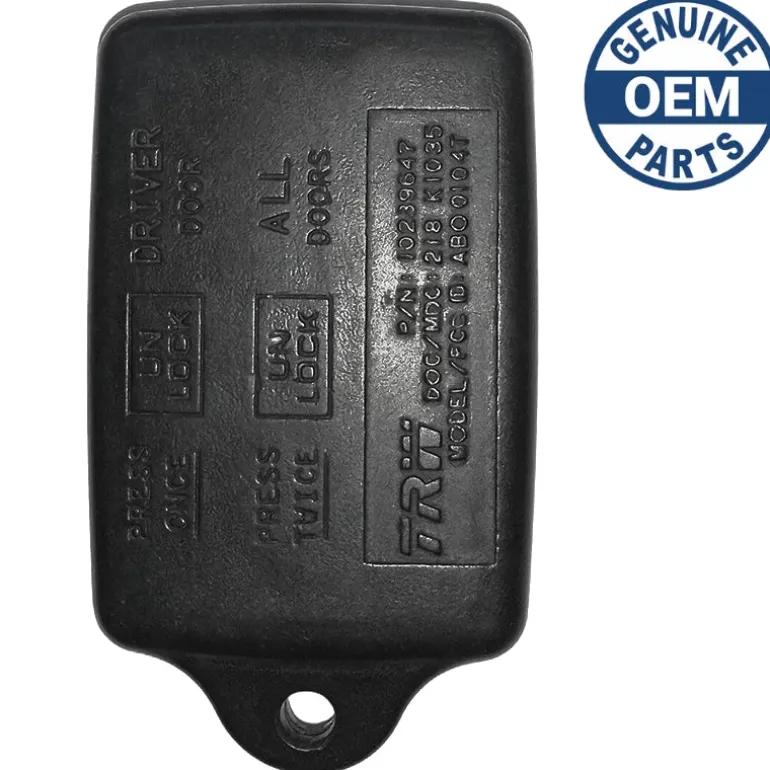

FCC ID: ABO0103T, GQ43VT1, ABO0104T, and ABO0116T

Buttons: Lock, Unlock, and Trunk

Frequency: 315 Mhz

Remote Programming:

Battery: CR2032 (included)

1. Make sure the ignition is in the OFF position.
2. Locate the programming connector in the drivers side trunk. It is a plastic connector with 2 wires leading to it. It is not plugged into anything.
3. The programming connector has two terminals. Connect the terminals with a suitable jumper wire. The locks will cycle to confirm programming mode. Keep the jumper wire connected.
4. Press the LOCK and UNLOCK buttons on the remote simultaneously. The door locks will cycle to confirm the remote has been learned. Your new remote has been programmed and all previous remotes have been erased.
5. Repeat the previous step for every remote (including old ones).
6. Remove jumper wire.
