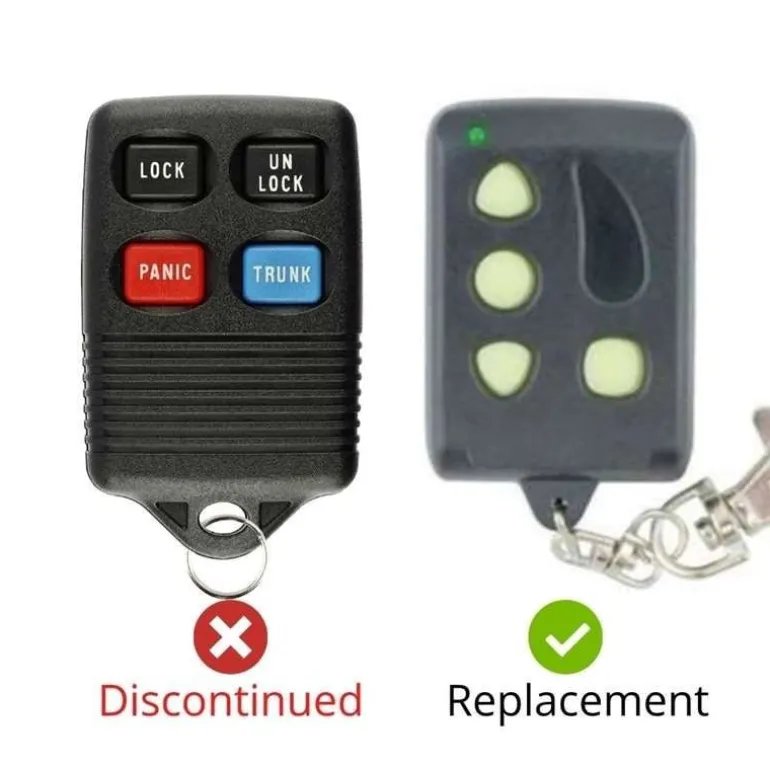

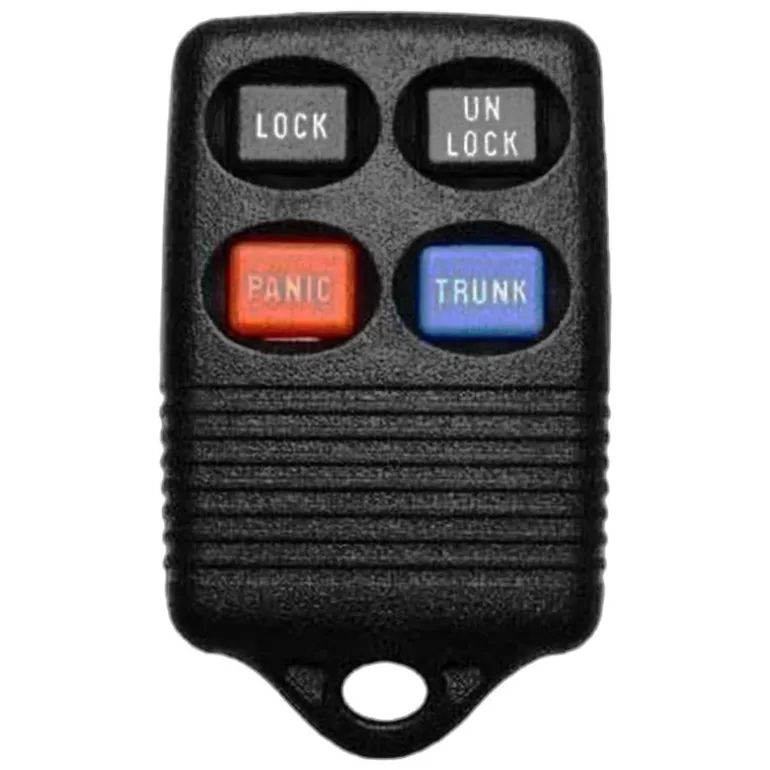

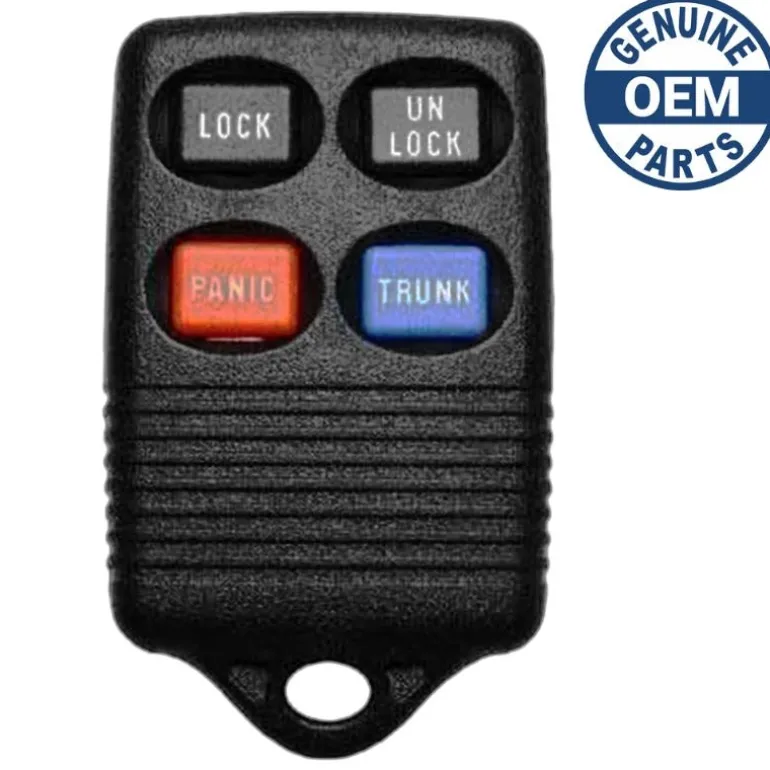

1997 Mercury Cougar Remote PN: F5DZ-15K601-B

Important:Please make sure that your smart key fob looks identical and matches any of the part numbers or FCC IDs listed below. Contact Us with your VIN if you don’t have an existing remote for comparison.

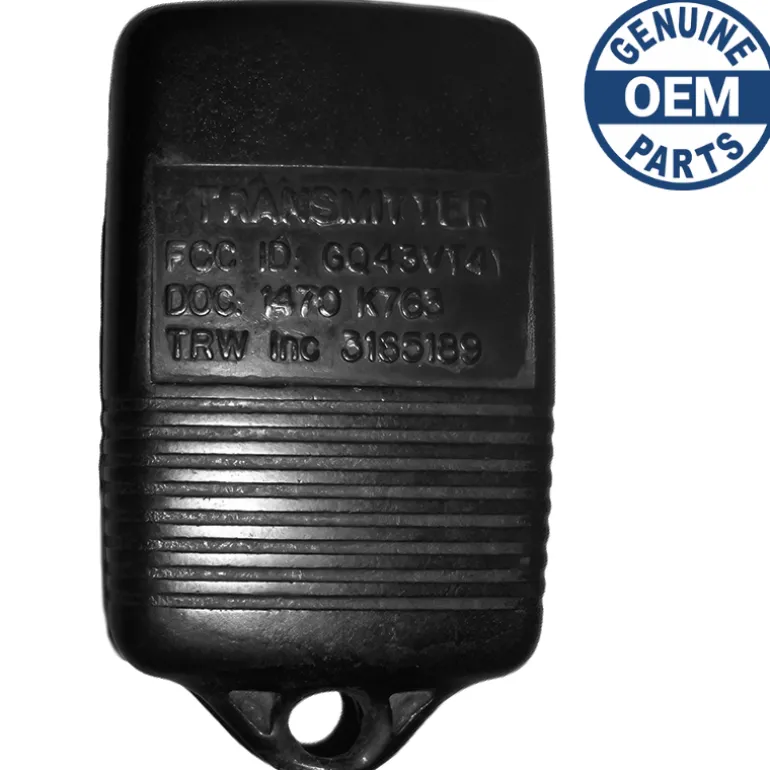

Part Numbers: 3165189 and F5DZ-15K601-B

FCC ID: GQ43VT4T

Buttons: Lock, Unlock, Panic, and Trunk

Frequency: 315 MHz

Remote Programming:

Battery: CR2016 (included)

NOTE: The program connector is located in the trunk, behind the rear left hand side access panel, taped to the wiring harness between the left tail light and the rear left wheel well. It is a plastic connector that is NOT plugged into anything.

1. Put the ignition switch in “RUN” or “ACC” and momentarily jumper the two program connecter terminals with a suitable jumper wire. The system will respond by locking and unlocking all of the doors.
2. Press any button on the transmitter. All doors will lock and then unlock to verify transmitter signal acceptance.
3. Repeat step 2 for each transmitter (including your old ones) in order to program the remote keyless entry module to accept up to four transmitter signals.
4. Turn the ignition switch to “OFF”. All of the doors will then lock and unlock.
