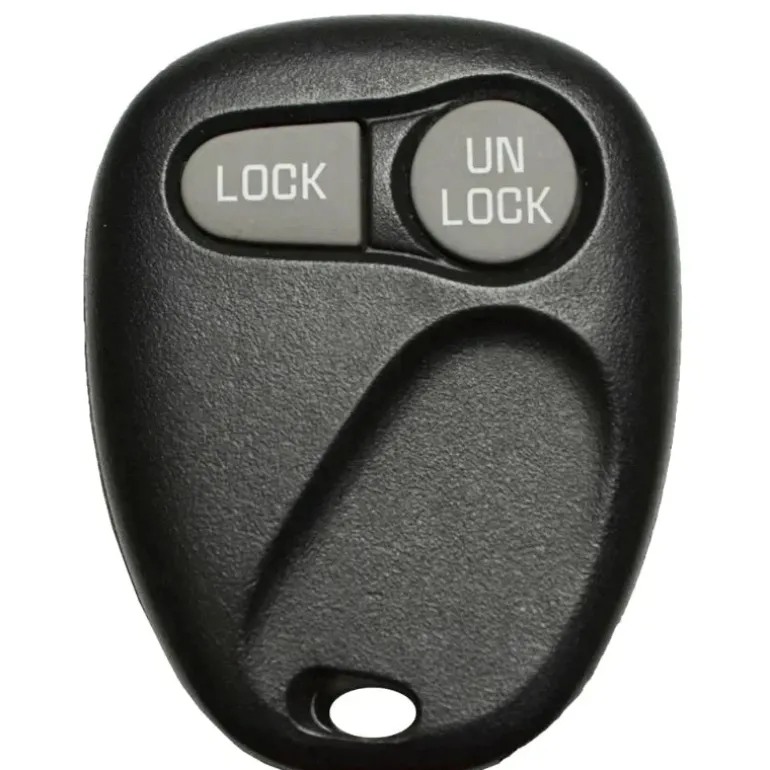

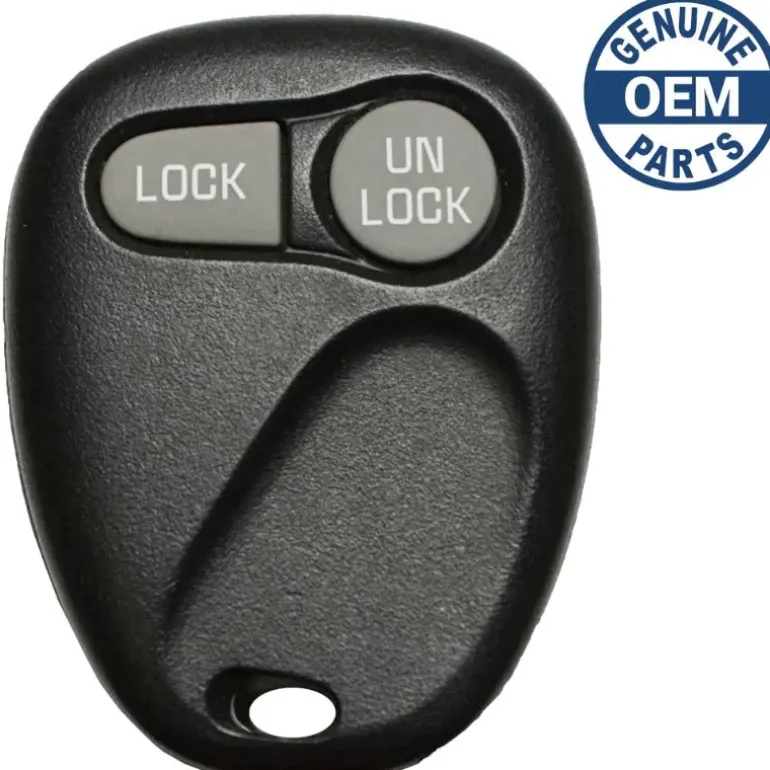

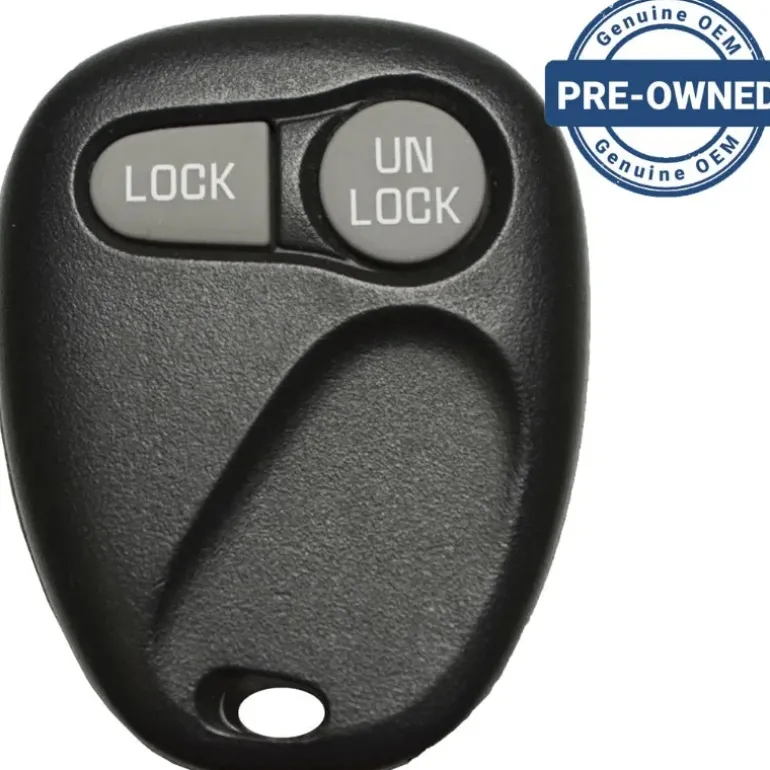

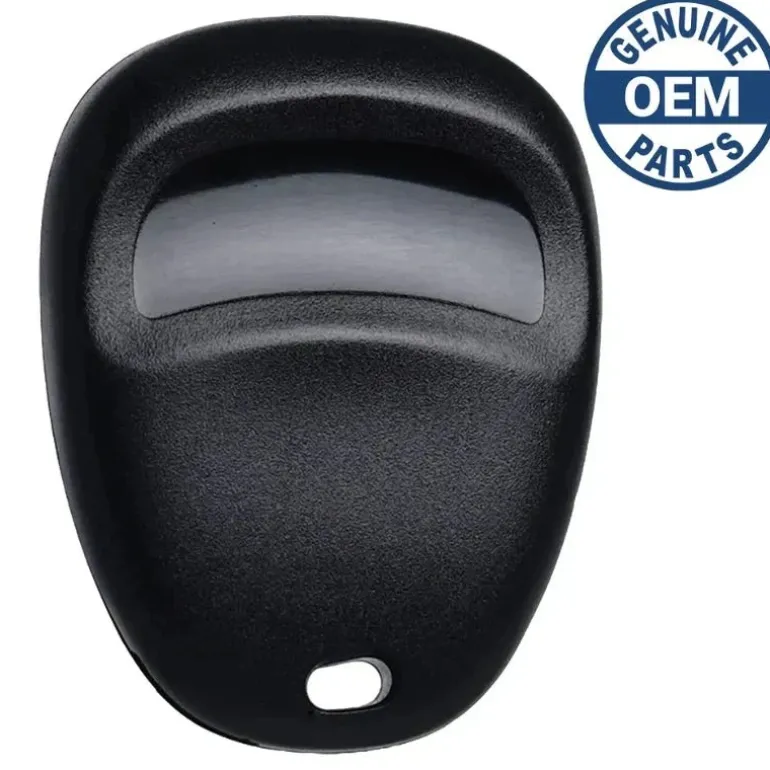

1997 Oldsmobile Silhouette Remote PN: 10245950

Important:Please make sure that your smart key fob looks identical and matches any of the part numbers or FCC IDs listed below. Contact Us with your VIN if you don’t have an existing remote for comparison.

Part Numbers: 10245950

FCC ID: ABO0204T

Buttons: Lock and Unlock

Frequency: 315 MHZ

Remote Programming: Onboard

Battery: CR2032 (included)

1. Remove the ignition key from the ignition lock cylinder.
2. Remove the “BCM PRGRM” fuse from the fuse panel, accessed by opening the front passenger door. Use the legend on the fuse panel to properly locate the “BCMPRGRM” fuse.
3. Close all of the doors.
4. Close the liftgate.
5. Insert keys into the ignition, and turn the ignition lock cylinder to ACC (one click towards you – the opposite direction from starting the engine).
6. Turn the ignition lock cylinder to OFF, and then back to ACC within 1 second.
7. Open and close any vehicle door. A chime will be heard when the system enters the programming mode.
8. Press and hold the transmitter LOCK and UNLOCK buttons simultaneously for 14 seconds. IMPORTANT: After 7 seconds, a chime may be heard confirming successful synchronization. It is necessary to wait approximately 14 seconds for a second chime that will confirm successful programming. Your new remote has been accepted and all existing remote codes have been erased.
9. Repeat the previous step on each additional transmitter to be programmed (including any existing transmitters).
10. Remove the ignition key from the ignition lock cylinder.
11. Install the “BCM PRGRM” fuse back into the fuse panel.
