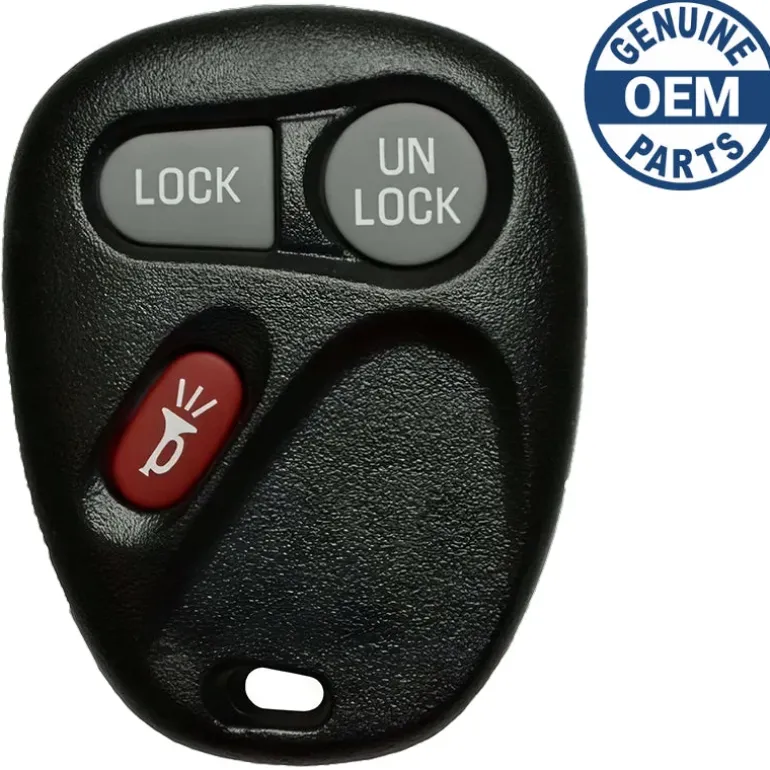

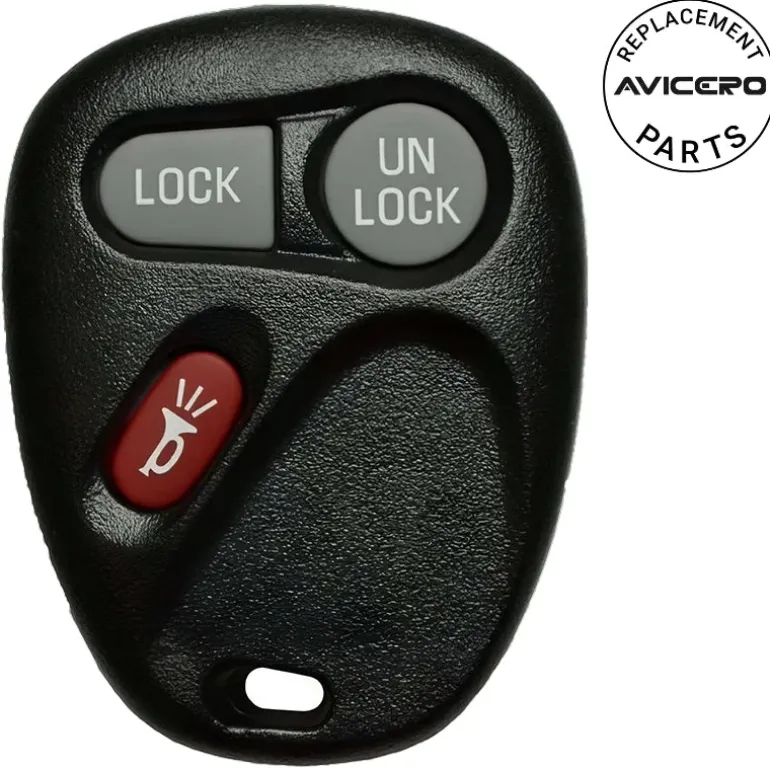

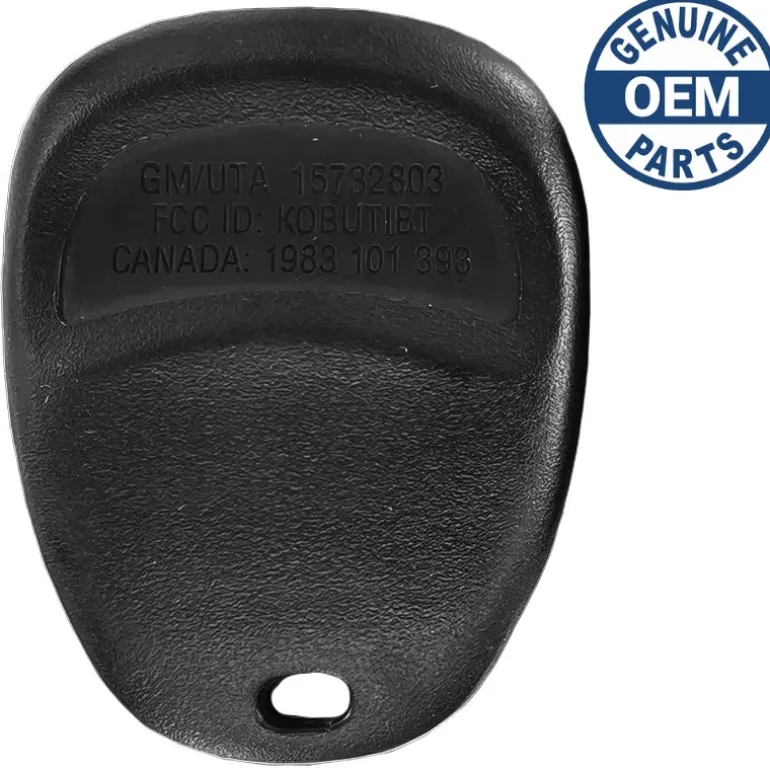

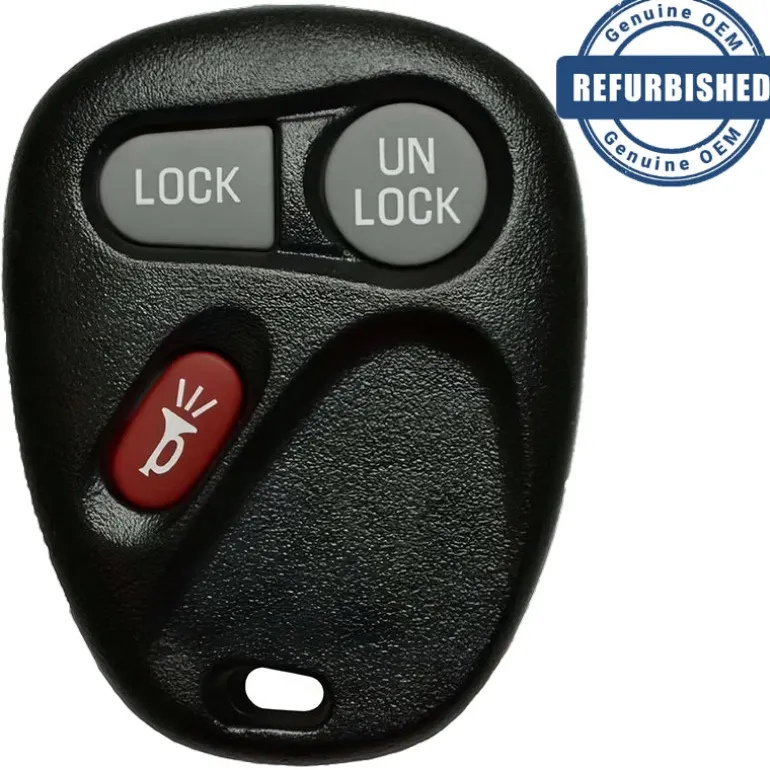

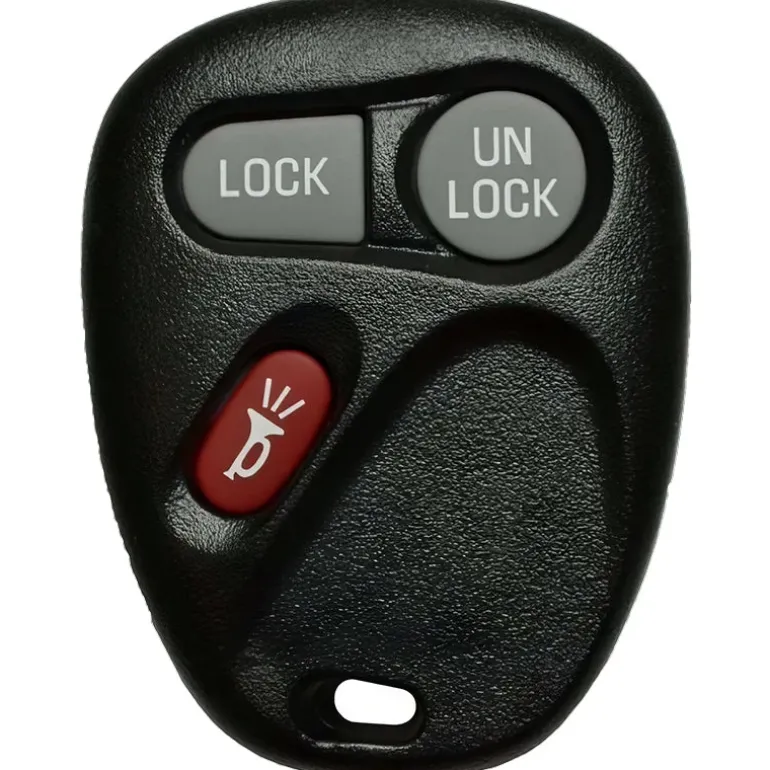

1999 GMC Sonoma Remote PN: 15732803 FCC ID: KOBUT1BT

Important:Please make sure that your smart key fob looks identical and matches any of the part numbers or FCC IDs listed below. Contact Us with your VIN if you don’t have an existing remote for comparison.

Part Numbers: 15732803

FCC ID: KOBUT1BT

Buttons: Lock, Unlock, and Panic

Frequency: 315 mhz

Remote Programming: Onboard

Battery: CR2032 (included)

IMPORTANT: Before entering programming mode, have in possession all of the transmitters you will be using on the vehicle. Once you program the transmitter, all previous codes will be erased from the memory. The other transmitters will not be functional until you program the transmitters again.

1. Close all vehicle doors, windows closed, wait for dome light to go off.
2. Insert the key into the ignition.
3. Hold down the power UNLOCK button on the driver’s door panel-continue to hold down until instructed to release in step 9.
4. Perform steps 5 through 8 in fairly rapid succession.
5. Turn the ignition switch to the ON position (as far as you can go without starting the engine).
6. Turn the ignition switch to the OFF position.
7. Turn the ignition switch to the ON position.
8. Turn the ignition switch to the OFF position.
9. Release the power unlock button on the door panel. The vehicle will lock and unlock the doors automatically.
10. Hold down the LOCK and UNLOCK buttons on the transmitter simultaneously until the door locks and unlocks. This step may take up to 30 seconds.
11. Repeat step 10 for each additional transmitter (including any existing transmitters).
12. Turn the ignition switch to the ON position in order to exit the transmitter programming mode.
