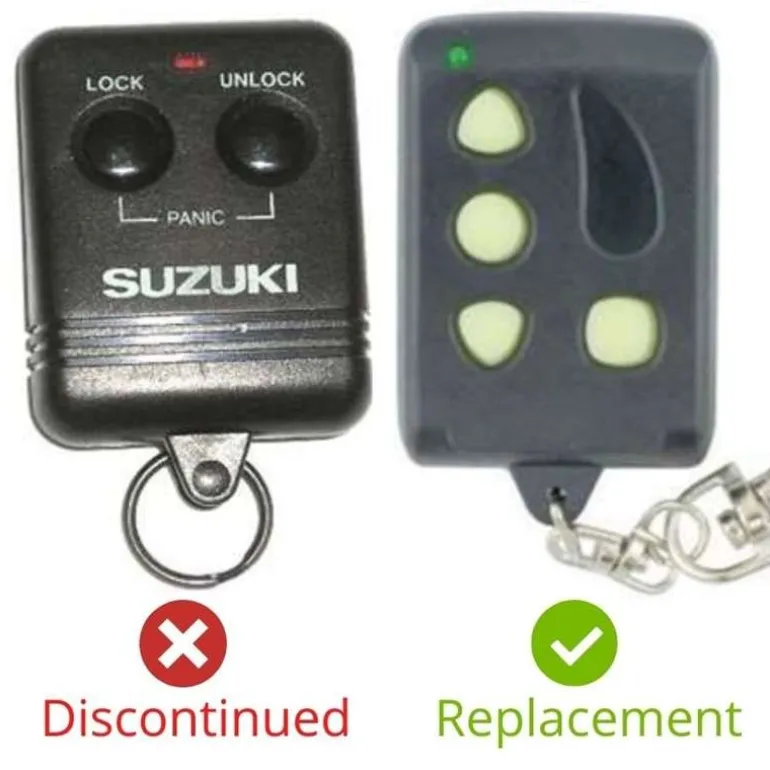

2000 Suzuki Grand Vitara Dealer Keyless Entry Remote B23AT54

Important:Please make sure that your smart key fob looks identical and matches any of the part numbers or FCC IDs listed below. Contact Us with your VIN if you don’t have an existing remote for comparison.

Part Numbers: XT-54A

FCC ID: B23AT54

Buttons:

Frequency:

Remote Programming:

Battery: (included)

1. Find the keyless entry module located underneath the driver’s side dash.
2. Using a small diameter object push down on the push switch located next to the red LED, until the LED begins to flash indicating that the vehicle is in programming mode.
3. Press and release the LOCK button on the remote. The red LED will respond by lighting solid momentarily. After a few seconds the LED will begin to flash again.
4. Within 5 seconds repeat step 3 on the second remote (if any, including old remotes.)
