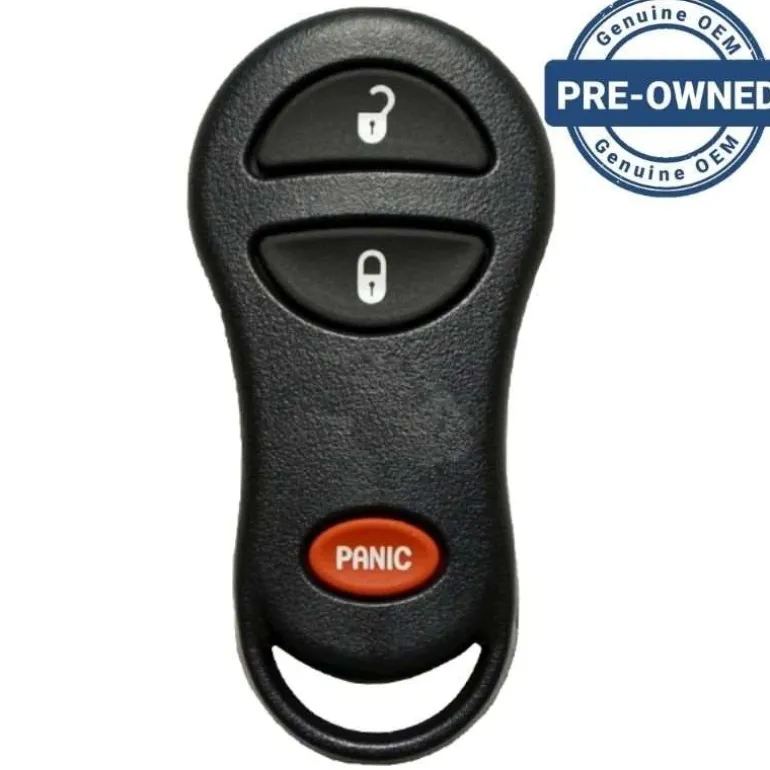

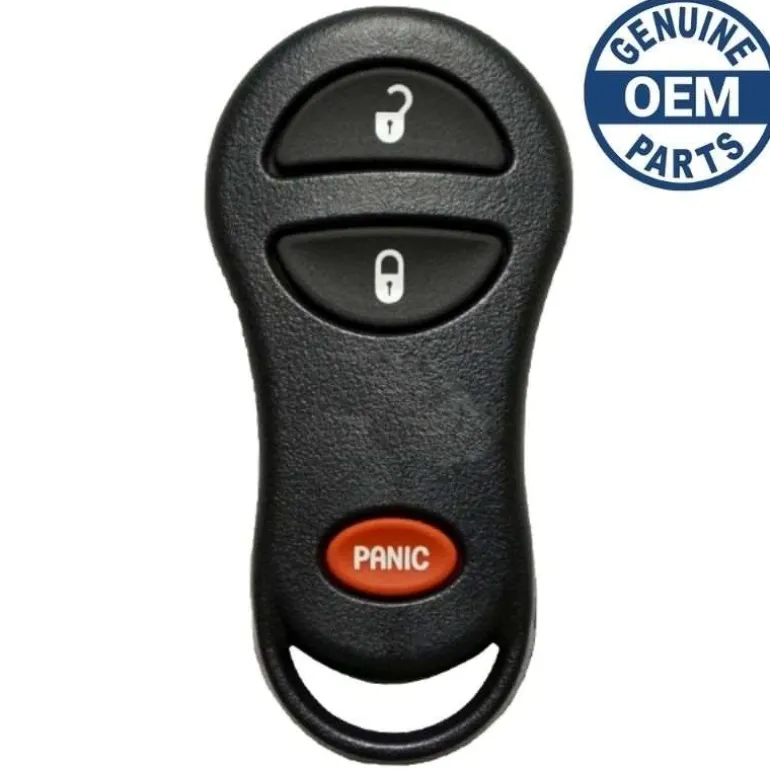

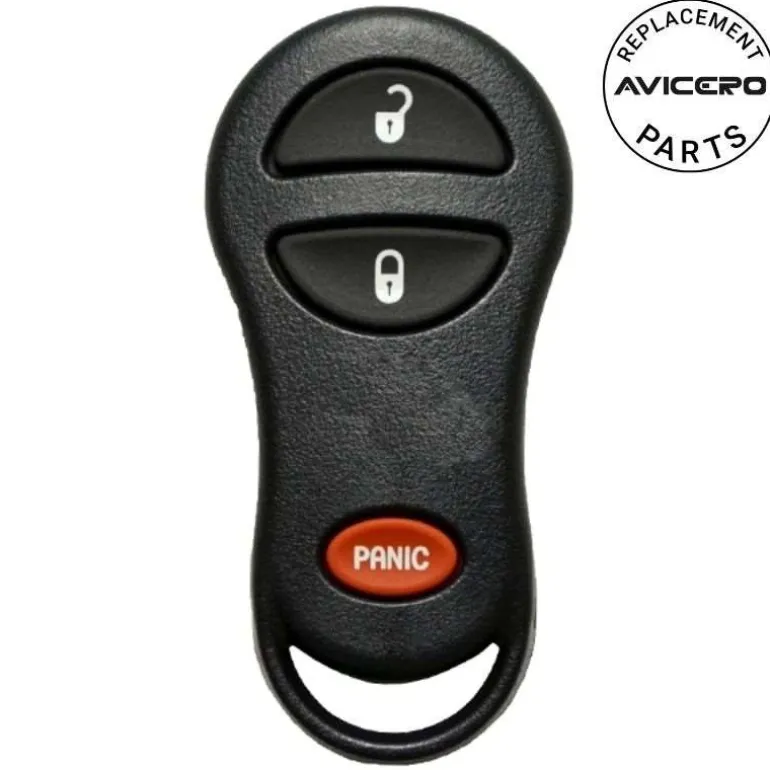

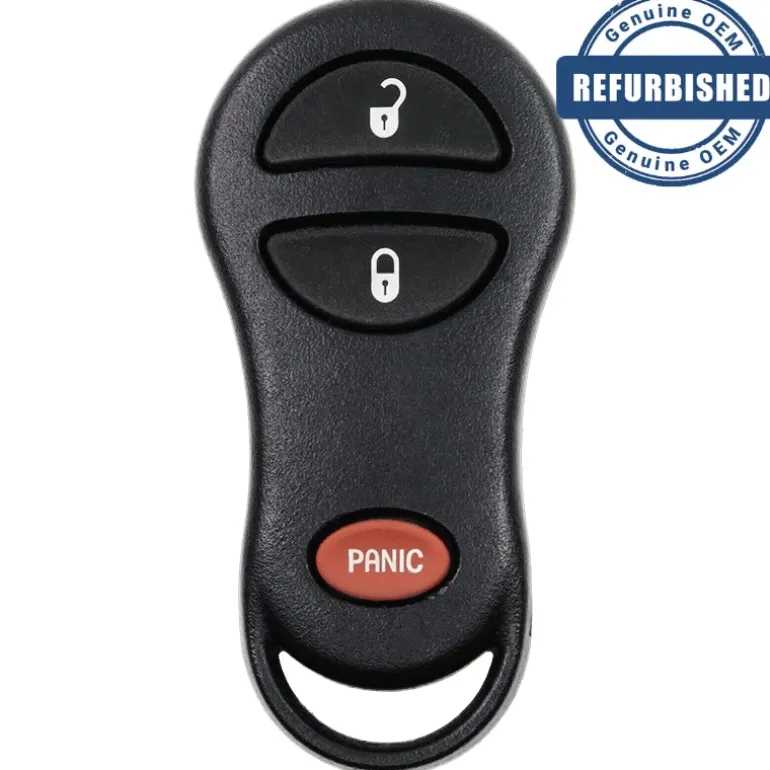

2003 Chrysler PT Cruiser Remote PN: 4671641AE

Important:Please make sure that your smart key fob looks identical and matches any of the part numbers or FCC IDs listed below. Contact Us with your VIN if you don’t have an existing remote for comparison.

Part Numbers: 04671641AE, 04671641AB , and 04671641AD

FCC ID: GQ43VT13T

Buttons:

Frequency:

Remote Programming:

Battery: (included)

1. Press [LOCK] button 5 times at 2 second intervals to resynchronize transmitter.
2. Turn ignition to the run position (Allow ignition chimes to stop).
3. Using original transmitter, press and hold the [UNLOCK] button on the transmitter for between 4 and 10 seconds.
4. Continue to hold the [UNLOCK] button and press the [PANIC] button. A chime will sound to indicate that the transmitter programming mode has been entered (Allow 3 seconds for chime to sound).
5. Press a button on all transmitters to be programmed into the system including any previously programmed transmitters; a chime will sound when each transmitter has been programmed.
6. Turn the ignition to OFF position to exit the transmitter programming mode.
