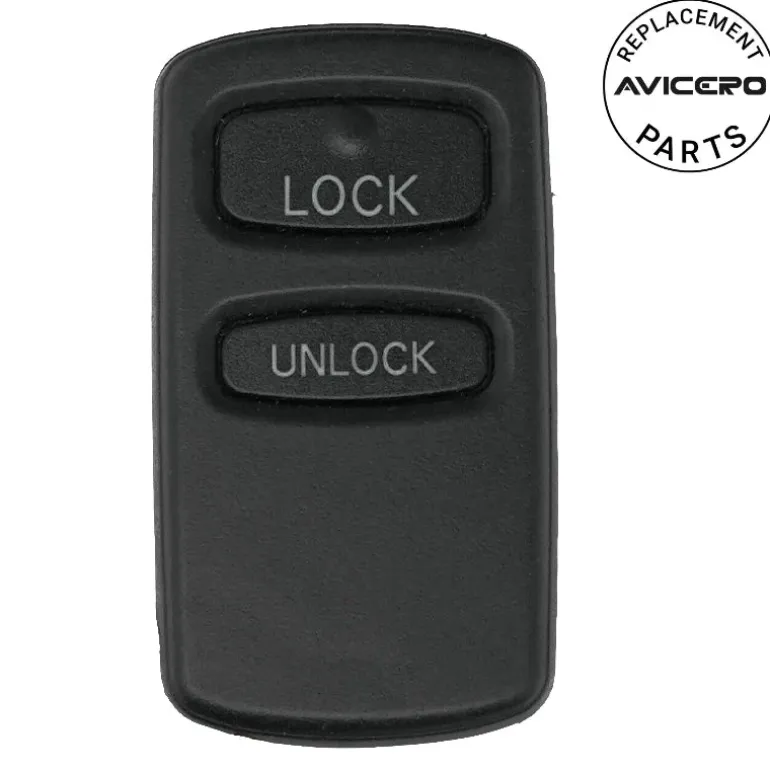

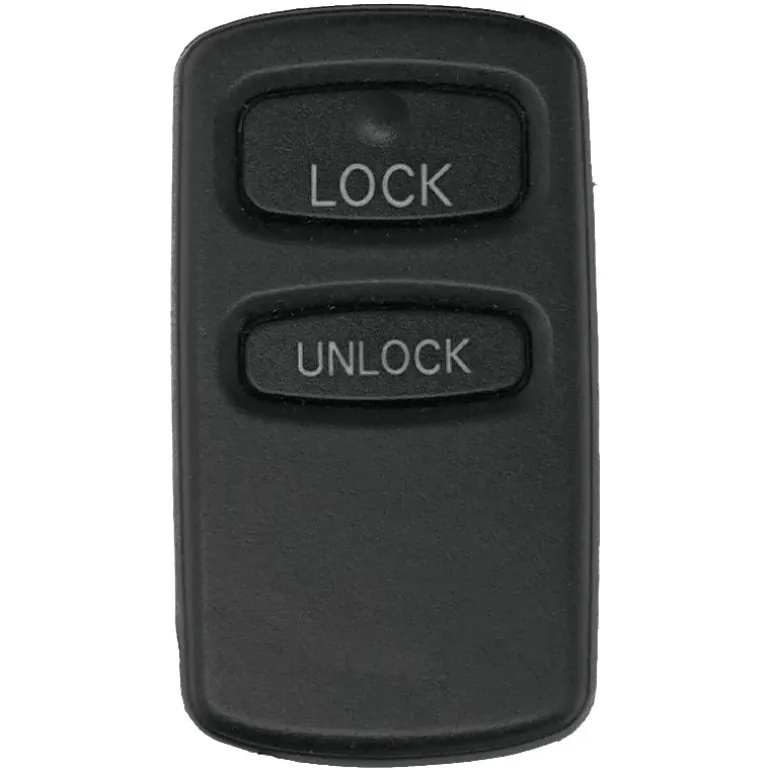

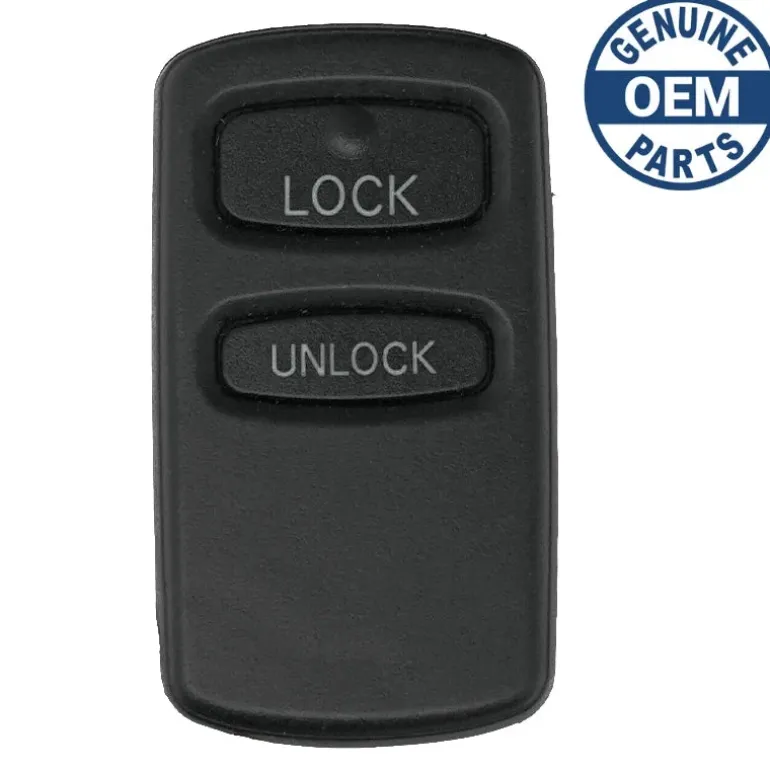

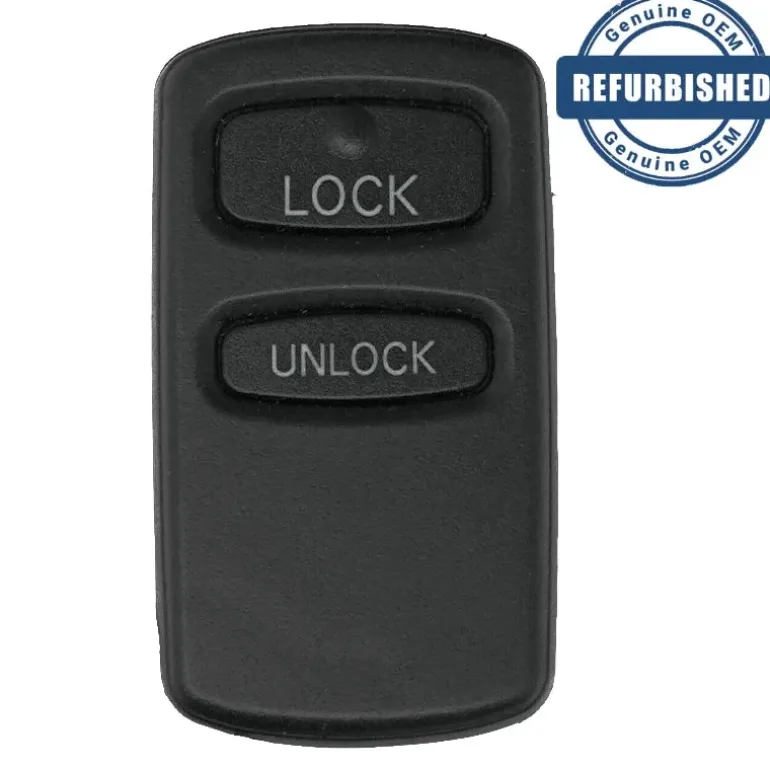

2003 Mitsubishi Galant Remote OUCG8D-525M-A 2 Button

Important:Please make sure that your smart key fob looks identical and matches any of the part numbers or FCC IDs listed below. Contact Us with your VIN if you don’t have an existing remote for comparison.

Part Numbers: MR587983

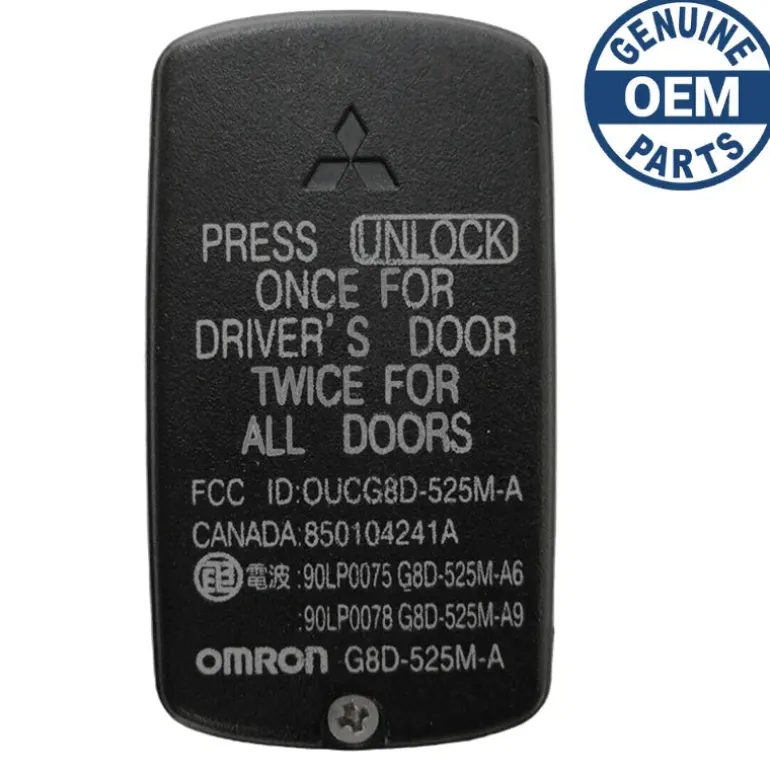

FCC ID: OUCG8D-525M-A

Buttons:

Frequency:

Remote Programming:

Battery: (included)

1. Locate the Data Line Connector (DLC) underneath the driver’s side dashboard. The DLC is typically located either to the left or the right of the steering column base. Use the figure to the side as a map for your DLC (they usually aren’t numbered). The view in figure b, is looking straight into the cavities of the DLC. Notice how the DLC is tapered on both ends: we will be working on the wider row of cavities (1 through 8 in figure b.).
2. Insert keys in ignition and leave in the OFF position.
3. Make sure there are metal contact pins in terminals 1 and 4 and connect the Data Line Connector (DLC) terminal 1 to terminal 4 with a suitable jumper wire (leave the jumper wire connected throughout the programming procedure). Make sure you know which terminals are 1 and 4.
4. Within 10 seconds after connecting the jumper wire, press the Hazard Switch 6 times. The doors will automatically lock and unlock once indicating that the system is in the programming mode.
5. Press either the LOCK or UNLOCK button on the transmitter to be registered three times within 10 seconds. Upon successful programming, the door will lock and unlock once.
6. If there is a second transmitter, press the LOCK or UNLOCK button three times within one minute and the doors will lock and unlock once to confirm successful programming.
7. Disconnect the programming wire and remove the keys from the ignition.
