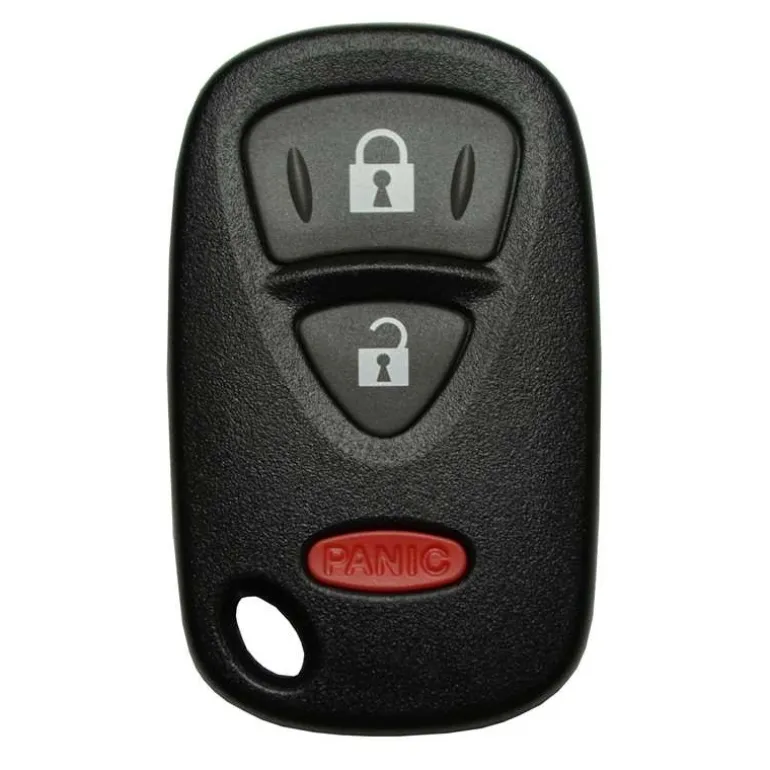

2005 Suzuki Grand Vitara Remote FCC ID: OUCG8D-246S-A PN: 37182-50J10

Extended warranty is available on the checkout page.

Suzuki Part Number: 37182-50J10

FCC IDs: OUCG8D-246S-A

Condition:New Replacement

Brand: Avicero

Programming Instructions:

• 4 remotes can be programmed into the receiver. If a 5th remote is programmed it will erase the 1st. If you want to delete a remote then program a remote 4 times. Confirm that all the doors are closed and the key is not in the ignition.
• Open the driver door.
• Perform these steps within 10 seconds. Insert the key into ignition and turn to ON position, then back to OFF and remove key.
• Within 20 seconds close and open the driver door 3 times.
• Within 10 seconds insert key into ignition and turn to ON position then back to OFF and remove key.
• Press and hold both LOCK and UNLOCK on the remote to be programmed for at least 5 seconds and then release.
• Within 5 seconds press the LOCK button on the same remote and release. All doors will automatically lock and unlock to confirm that remote has been learned.
• Test remote.
• Repeat the whole procedure for additional remotes up to four total.

Works on:
Suzuki XL7 (2004-2007), Grand Vitara (2004-2005), Aerio (2005-2007)
