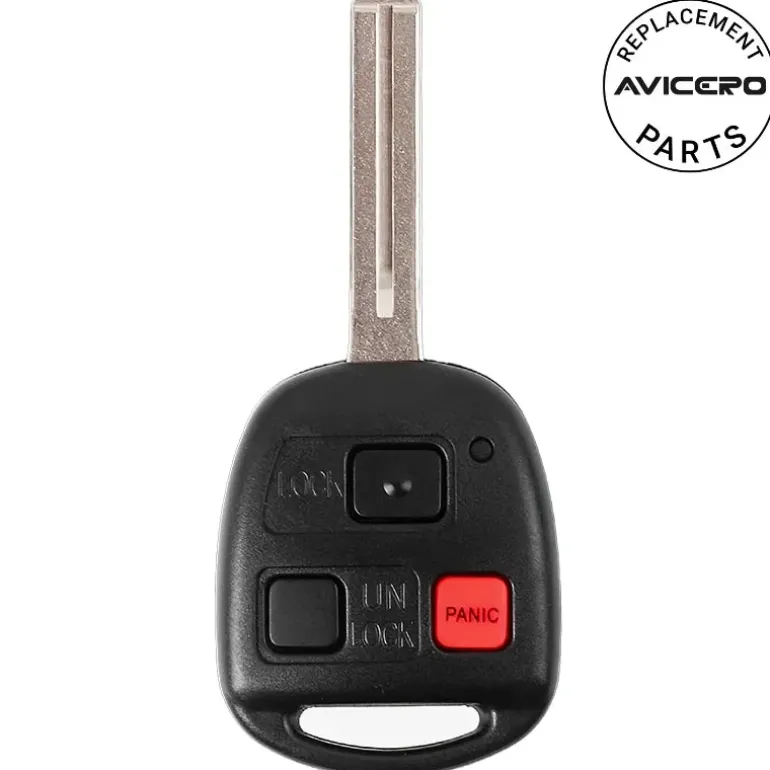

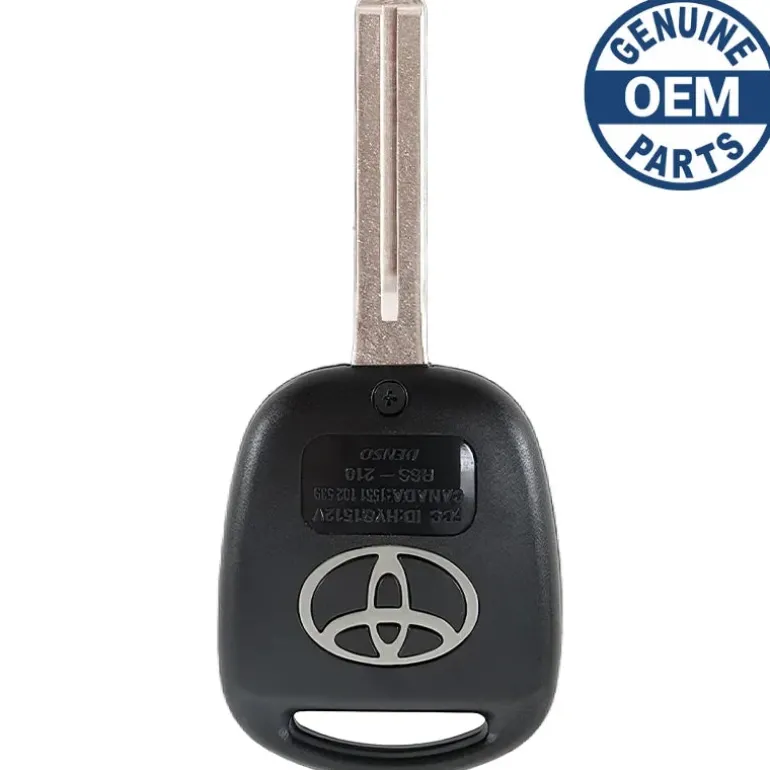

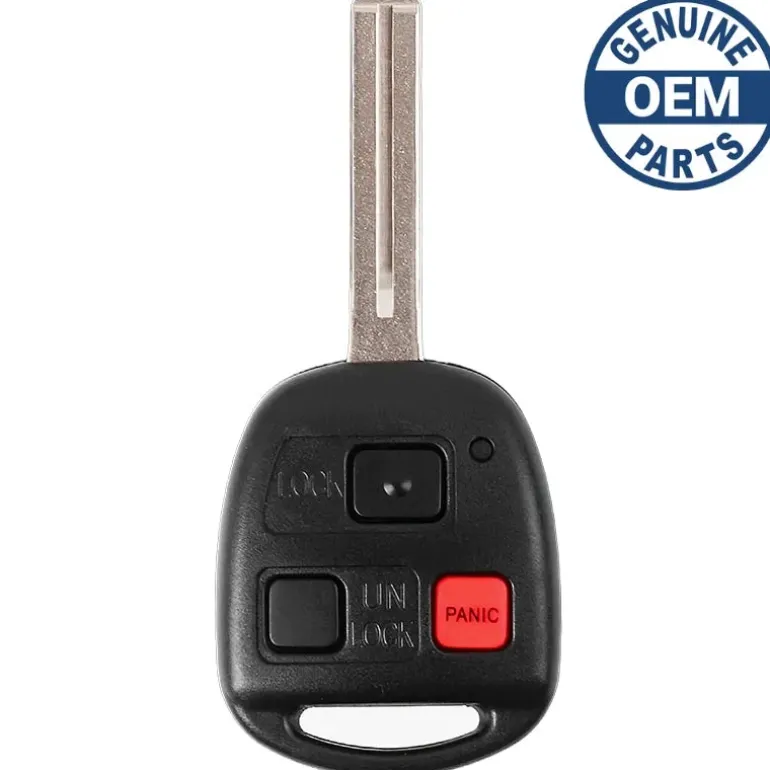

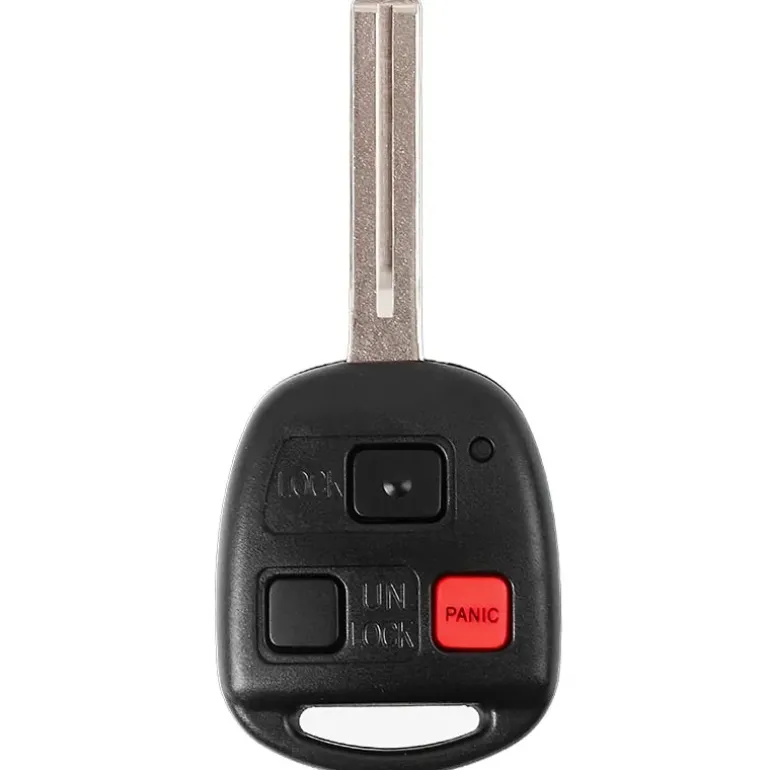

2005 Toyota Land Cruiser Remote Head Key PN: 89070-60750

FCC ID : HYQ12BBT
Part Number : 89070-60750
Brand : Avicero
Condition : New

Programming Procedure :
1. Start with the following conditions:
a. Key is out of the ignition
b. Driver door is open (all other doors are closed)
c. Driver door is unlocked (other door locks don?? matter).
2.1. Toyota Land Cruiser 2003: Insert the key into the ignition (don?? turn it) and pull it out.
2.2. Toyota Land Cruiser 2004-2005: Perform the next two steps within 5 seconds:
a. Insert the key into the ignition (don?? turn it) and pull it out.
b. Insert the key into the ignition (don?? turn it) and pull it out.
3.1. Toyota Land Cruiser 2003: Perform these steps within 40 seconds:
a. Using the power lock/unlock switch on the driver?? door, perform 5 lock/unlock cycles
starting with lock. A lock/unlock cycle consists of pressing the power lock switch, followed
by pressing the power unlock switch on the driver?? door panel. Use an even pace and try
to go relatively fast.
b. Close, then open the drivers door.
3.2. Toyota Land Cruiser 2004-2005: Perform these steps within 40 seconds:
a. Close then open the driver?? door.
b. Close then open the driver?? door.
c. Insert the key into the ignition (don?? turn it) and pull it out.
4.1. Toyota Land Cruiser 2003: Perform these steps within 40 seconds:
a. Using the power lock/unlock switch on the driver?? door, perform 5 lock/unlock cycles
starting with lock (just as you did previously).
b. Insert Key in ignition.
c. Turn the ignition to ON (as far as you can go without cranking your engine), then back to
OFF two times.
d. Remove the key from the ignition.
4.2. Toyota Land Cruiser 2004-2005: Perform these steps within 40 seconds:
a. Close then open the driver?? door.
b. Close then open the driver?? door.
c. Close the driver?? door.
d. Insert the key into the ignition.
e. Turn the ignition to ON (as far as you can go without cranking your engine) then back to
OFF.
f. Remove the key from the ignition.
5. Within 3 seconds, the power door locks should cycle (lock then unlock) automatically indicating
successful entry into programming mode. Return to Step 1 if the locks do not cycle at this point.
6. Perform these steps within 40 seconds:
a. Press the LOCK and UNLOCK buttons on the first transmitter simultaneously for 1 second
and release.
b. Immediately after letting go of the LOCK and UNLOCK buttons, press the LOCK button by
itself and release. Within 3 seconds, the door locks should cycle (lock then unlock) once
indicating successful programming. If the door locks don?? cycle, or cycle twice, repeat
steps 6a and 6b as the remote has not been accepted.
c. Within 40 seconds repeat steps 6a and 6b for each transmitter that will operate the vehicle, including any old transmitters.
7.1. Toyota Land Cruiser 2003: Close driver door.
7.2. Toyota Land Cruiser 2004-2005: Open the driver door.
8. Test the transmitter(s) for function.

Works on :
Toyota Land Cruiser (2003-2005).
