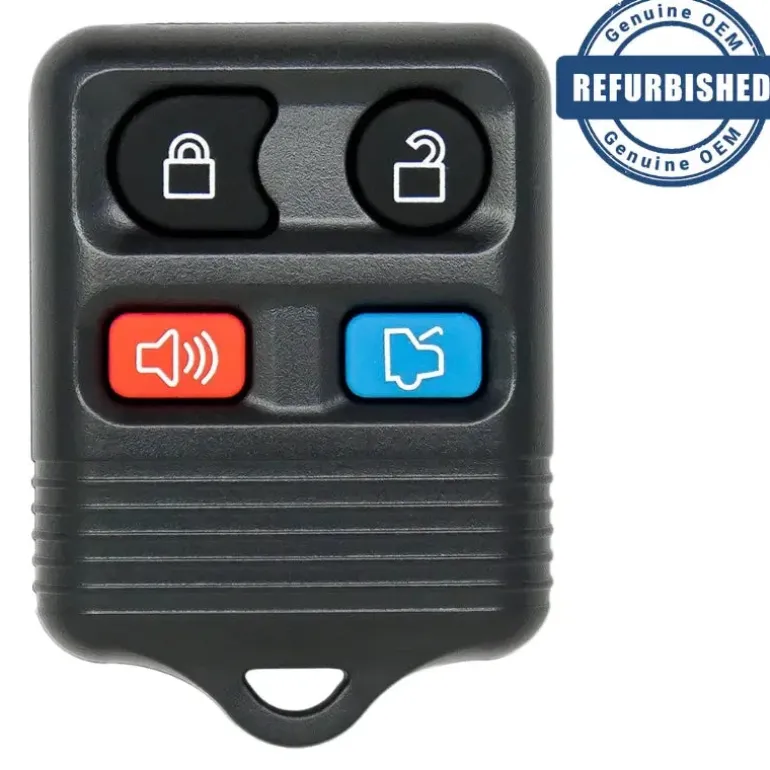

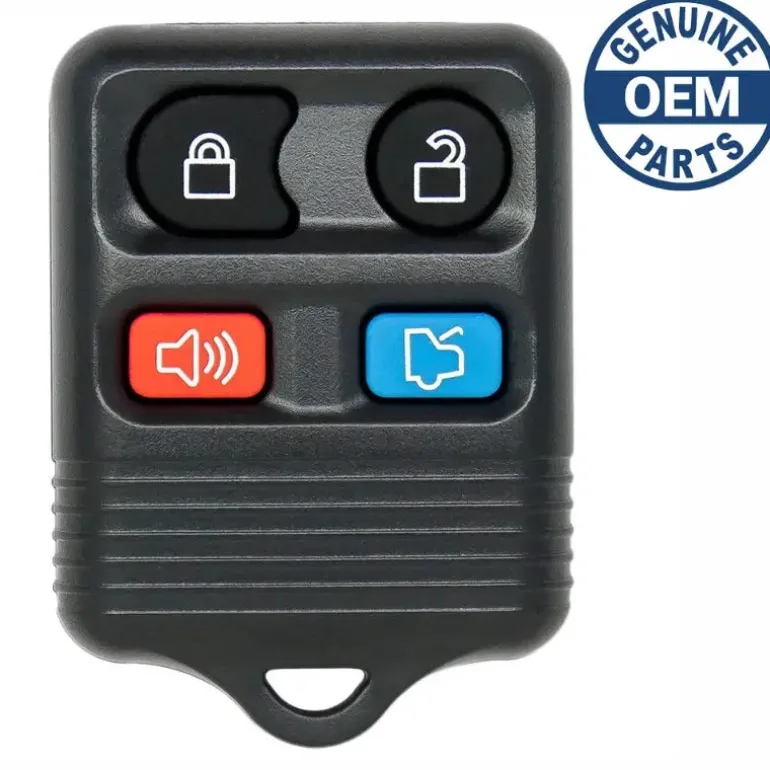

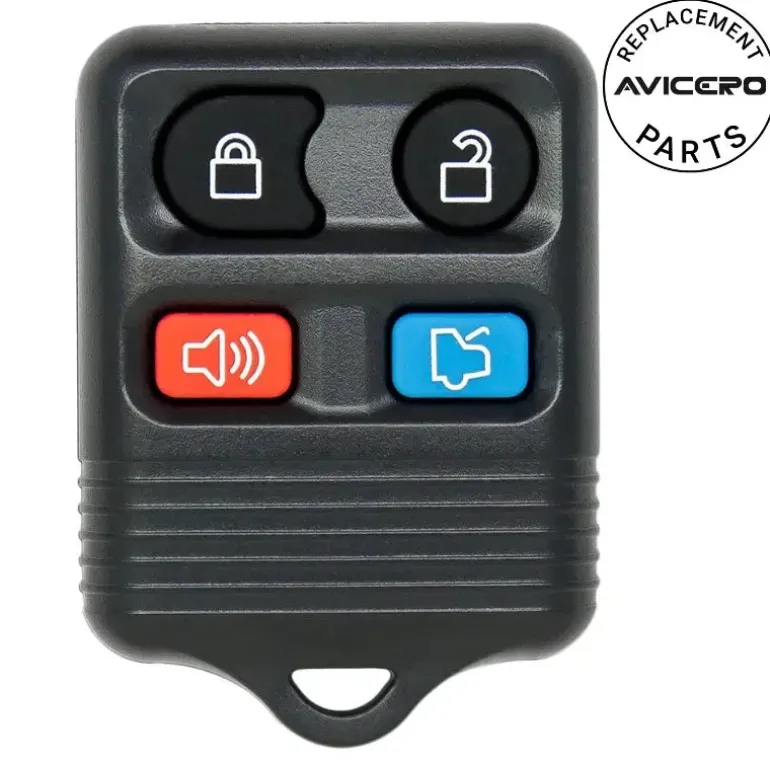

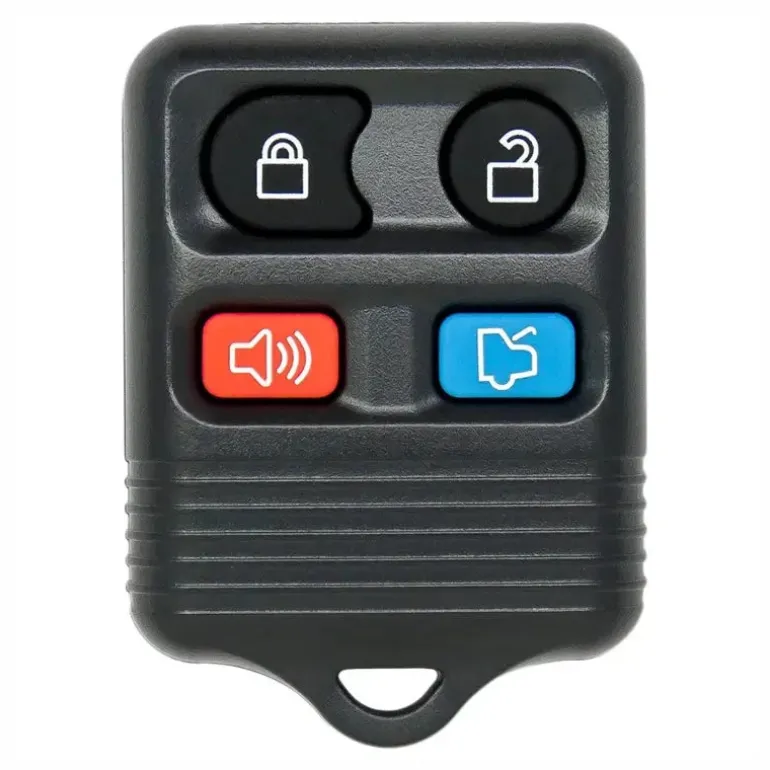

2006 Ford Focus Remote PN: 8S4Z-15K601-A, 8S4T-15K601-AA

Important:Please make sure that your smart key fob looks identical and matches any of the part numbers or FCC IDs listed below. Contact Us with your VIN if you don’t have an existing remote for comparison.

Part Numbers: 8S4Z-15K601-A, 8S4T-15K601-AA, 2S4T-15K601-AB, 2S4Z-15K601-AA, 2L2Z-15K601-BA, 1L2T-15K601-AA, 2L2T-15K601-BA, and 2L3T-15K601-AA

FCC ID: CWTWB1U345, CWTWB1U331, and CWTWB1U322

Buttons: Lock, Unlock, Trunk, and Panic

Frequency: 315 mhz

Remote Programming: Onboard

Battery: CR2032 (included)

Note: When the first keyless entry remote is programmed, all existing remotes lose their programming. Therefore, if you have an original remote remaining you will need to program it along with the new remote(s).

1. Turn the ignition from position 1 to position 3 four times in six seconds, ending in position 1. A chime will sound.
2. Press and hold any button on the remote until a chime sounds. This indicates the remote has been learned.
3. Within 10 seconds, repeat step 2 for each remote. A chime will sound after each remote has been learned.
4. Turn the ignition to position 3 to end programming.
