2006 Toyota Sequoia Port-Installed Keyless Entry Remote ELVATDD ELVAT1B

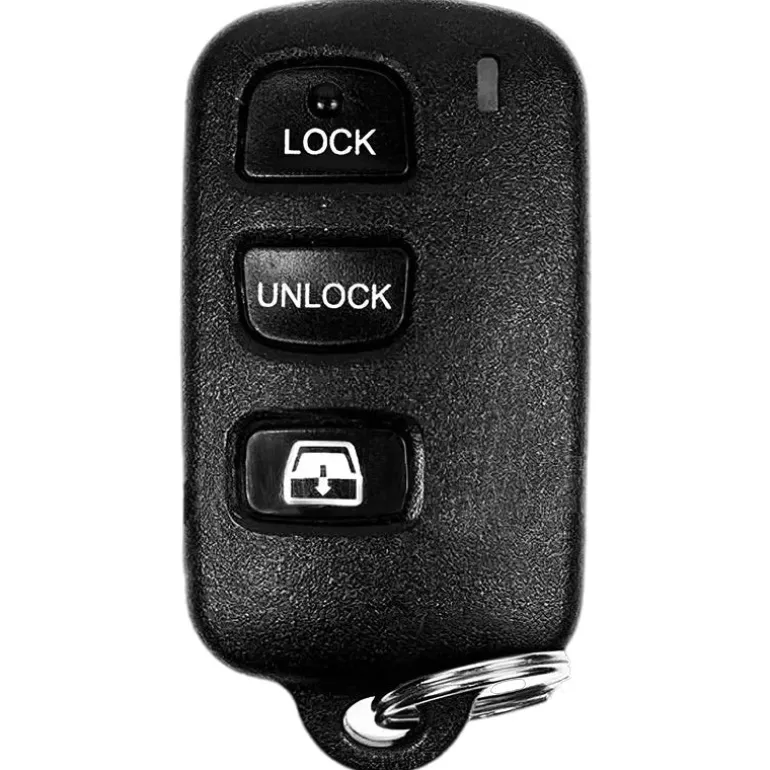

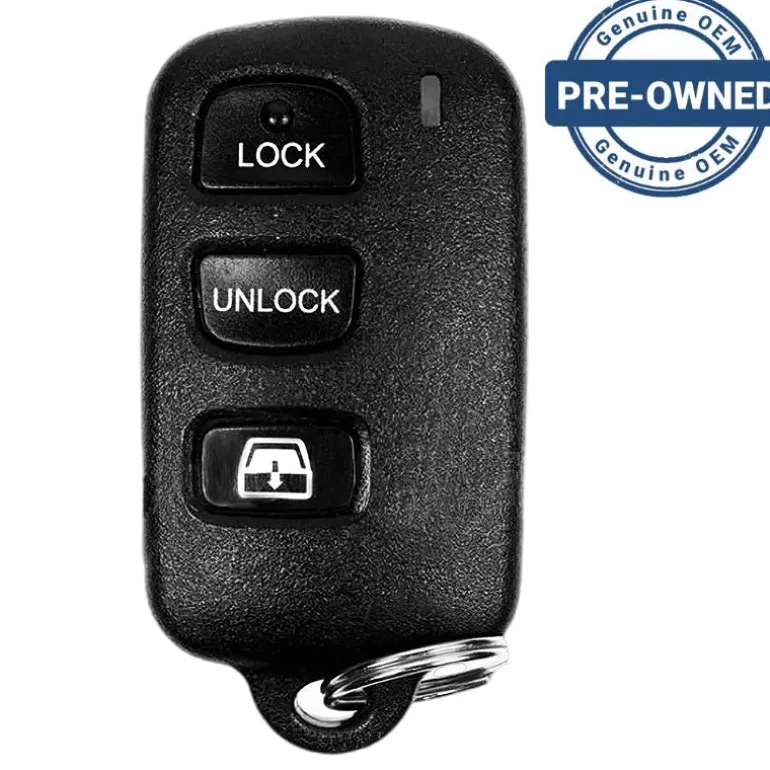

This remote works on 2003-2007 Toyota Sequoia models with the”Port-Installed System” rather than the “Factory-Installed System.” The remotes for the two systems look similar but are not compatible. This port installed remote is wider and has agreen LED light that lights up when buttons are pushed. The remote could either have anFCC ID ofELVATDDor ELVAT1B. Remotesare tested on a keyless entry tester for radio signal strength, battery strength, and proper functioning before shipping to you. This remote has 4 butons which are LOCK, UNLOCK, REAR GLASS, and PANIC. The signals are sent on a frequency of 434MHz.

PROGRAMMING INSTRUCTIONS:

This process will allow you to add new remotes to your system and delete lost remotes:

1. Enter driver seat then close driver door and lockall doorswith the driver’s power door lock.

2. Insert the key in the ignition and turn from OFF to ON 7 times ending in OFF. Do the key turningin less than 10 seconds.

3. Press and hold the LOCK button on remote for up to 5 seconds. A chime indicates the system accepted the remote.

4. Repeat step 3 for every remote you wish to be working on the car including old ones.

5. Remove key from ignition to exit programming mode.
