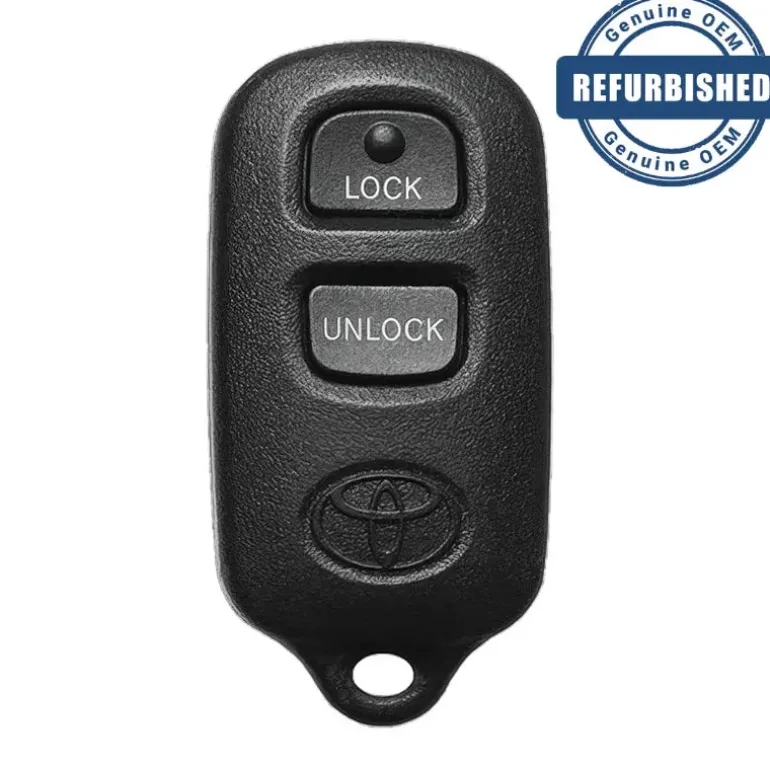

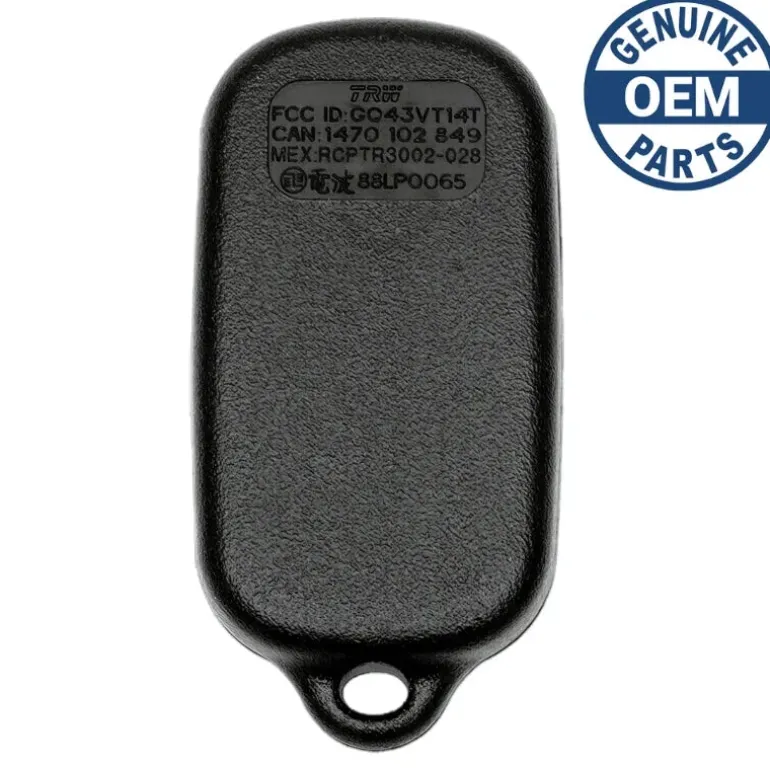

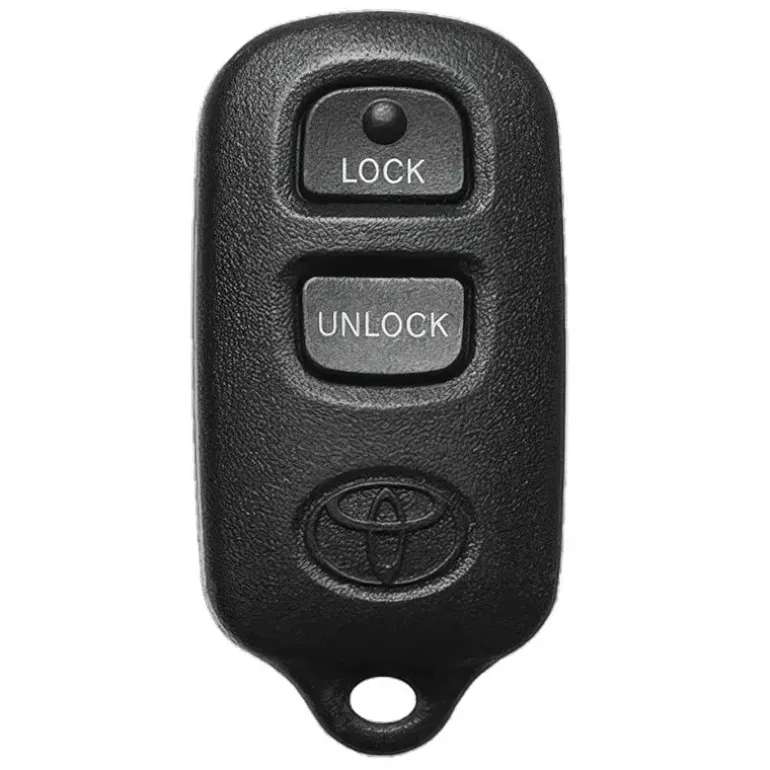

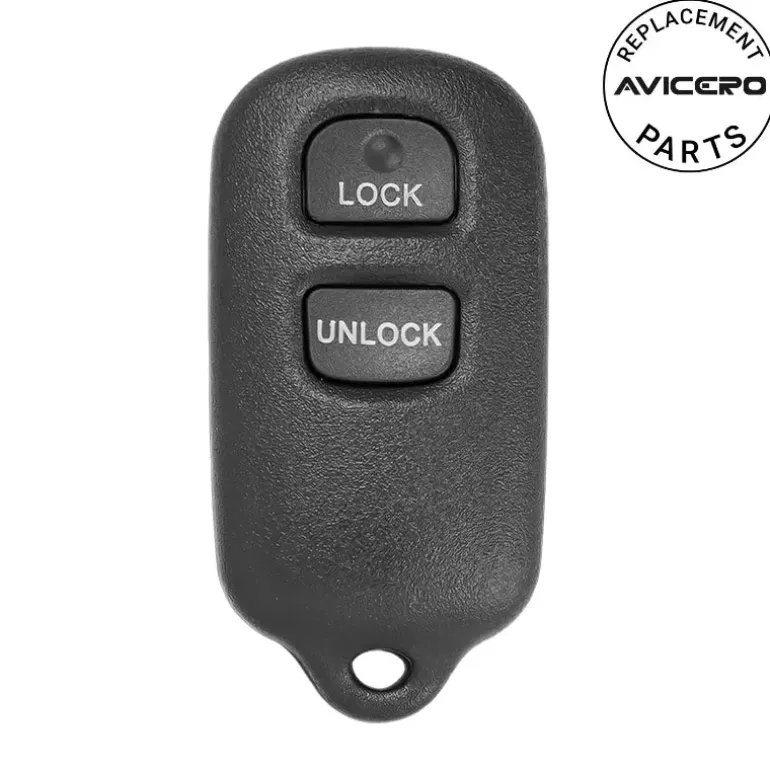

2008 Toyota FJ Cruiser Remote HYQ12BAN HYQ12BBX 89742-42120 3 Button

Important:Please make sure that your smart key fob looks identical and matches any of the part numbers or FCC IDs listed below. Contact Us with your VIN if you don’t have an existing remote for comparison.

Part Numbers: 89742-20200 BAN, 89742-0C020 BAN, and 89742-42120 BBX

FCC ID: HYQ12BAN and HYQ12BBX

Buttons:

Frequency: 315 mhz

Remote Programming: Onboard

Battery: (included)

1. Start with the following conditions:
1. Key is out of the ignition
2. Driver door is open (all other doors are closed)
3. Driver door is unlocked (other doors don’t matter).
2. Perform the next two steps within 5 seconds:
1. Insert the key into the ignition (don’t turn it) and pull it out.
2. Insert the key into the ignition (don’t turn it) and pull it out.
3. Perform these steps within 40 seconds:
1. Close then open the driver’s door.
2. Close then open the driver’s door.
3. Insert the key into the ignition (don’t turn it) and pull it out.
4. Perform these steps within 40 seconds:
1. Close then open the driver’s door.
2. Close then open the driver’s door.
3. Close the driver’s door.
4. Insert the key into the ignition.
5. Turn the ignition to ON (as far as you can go without cranking your engine) then back to OFF.
6. Remove the key from the ignition.
5. Within 3 seconds, the power door locks should cycle (lock then unlock) automatically indicating successful entry into programming mode. Return to Step 1 if the locks do not cycle at this point.
6. Perform these steps within 40 seconds:
1. Press the lock and unlock buttons on the transmitter simultaneously for 1 second and release.
2. Immediately after releasing the lock and unlock buttons, press the lock button by itself and release. Within 3 seconds, the door locks should cycle (lock then unlock) once indicating successful programming. If the door locks cycle twice, repeat steps 6a and 6b for this remote as it has not been accepted.
7. Open driver’s door.
