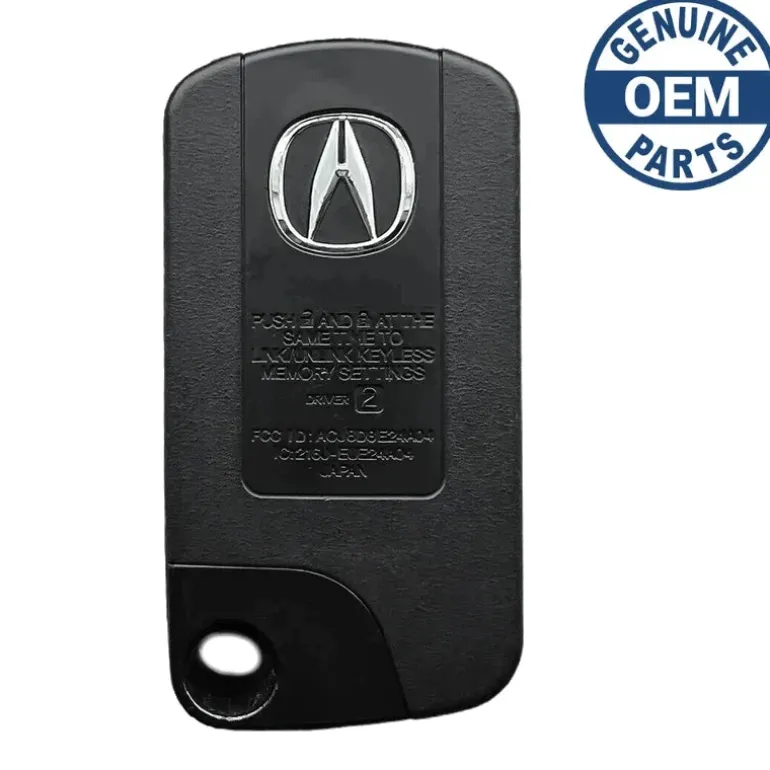

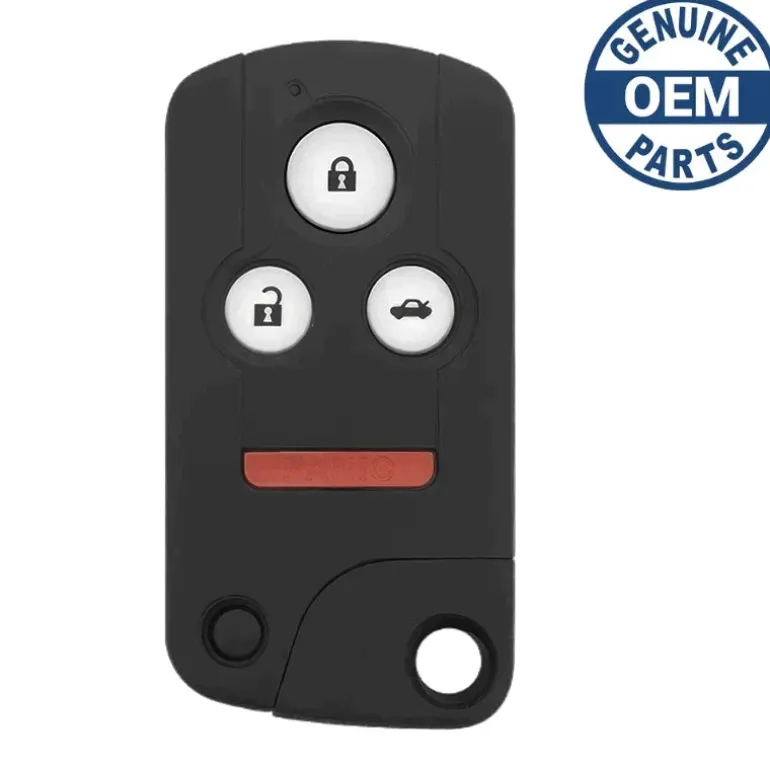

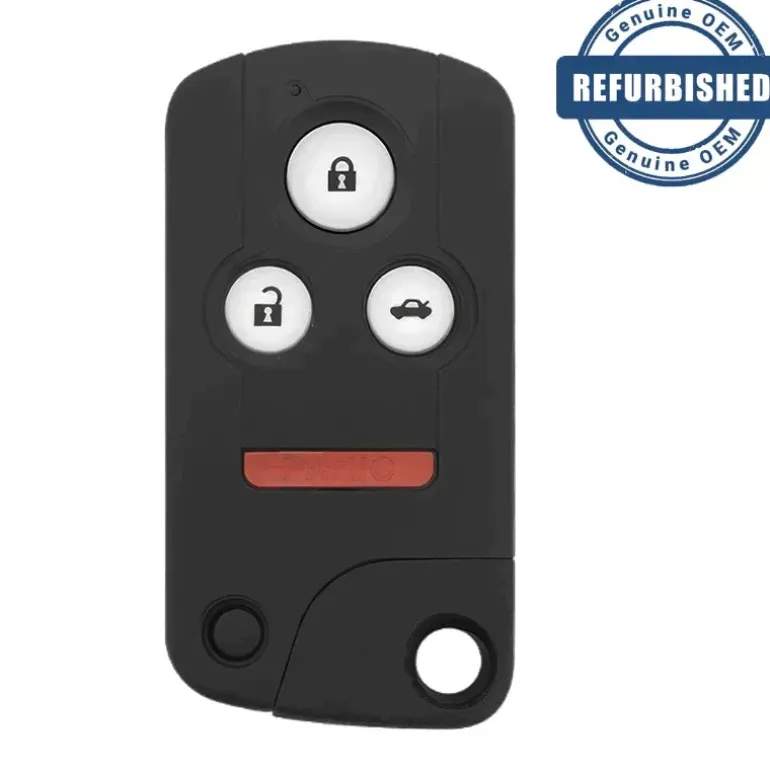

2010 Acura RL Smart Key Memory: Driver 2 FCC ID: ACJ8D8E24A04 PN: 72147-SJA-A11

Part Numbers: 72147-SJA-A11

FCC ID: ACJ8D8E24A04

Buttons:

Frequency:

Remote Programming:

Transponder Programming:

Chip ID:

Battery: (included)

Emergency Key: (included)

Keyless Entry Remote Programming:

IMPORTANT: Entering the programming mode cancels all learned remote codes, so no previously programmed remotes will work. You must program all remotes, including existing ones now. Separate your ignition key from remotes on keychain.

1. Start with your key in your right hand and any remote in your left hand. Keep all additional remotes easily accessible to your left hand. Insert the key into the ignition.
2. Perform these steps within 5 seconds.
1. Turn the ignition to the ON position (where the instrument panel lights are turned on without starting the engine.)
2. Press the UNLOCK button on the remote and release.
3. Turn the ignition back to LOCK (the position where the key is inserted) and leave the key in the ignition.
4. Turn the ignition to the ON position (where the instrument panel lights are turned on without starting the engine.)
5. Press the UNLOCK button on the remote and release.
6. Turn the ignition back to LOCK (the position where the key is inserted) and leave the key in the ignition.
7. Turn the ignition to the ON position (where the instrument panel lights are turned on without starting the engine.)
8. Press the UNLOCK button on the remote and release.
9. Turn the ignition back to LOCK (the position where the key is inserted) and leave the key in the ignition.
3. Within 5 seconds turn the ignition to ON.
4. Press the UNLOCK button on the same remote and release. The power door locks will cycle to confirm the system is in programming mode.
5. Within 10 seconds press the UNLOCK button on the same remote again and release. The door locks will cycle to confirm that the system accepted this remote.
6. Repeat step 5 for second or third remotes.
7. Turn the key back to LOCK and remove from ignition to exit programming mode.

Transponder Key Programming:

Use the websites below or your local yellow pages to locate a local automotive locksmith.

An automotive locksmith will cut the key and program your vehicle to start with new keys by hooking up an expensive scan tool to your vehicle, making the vehicle learn the new transponder chip.
