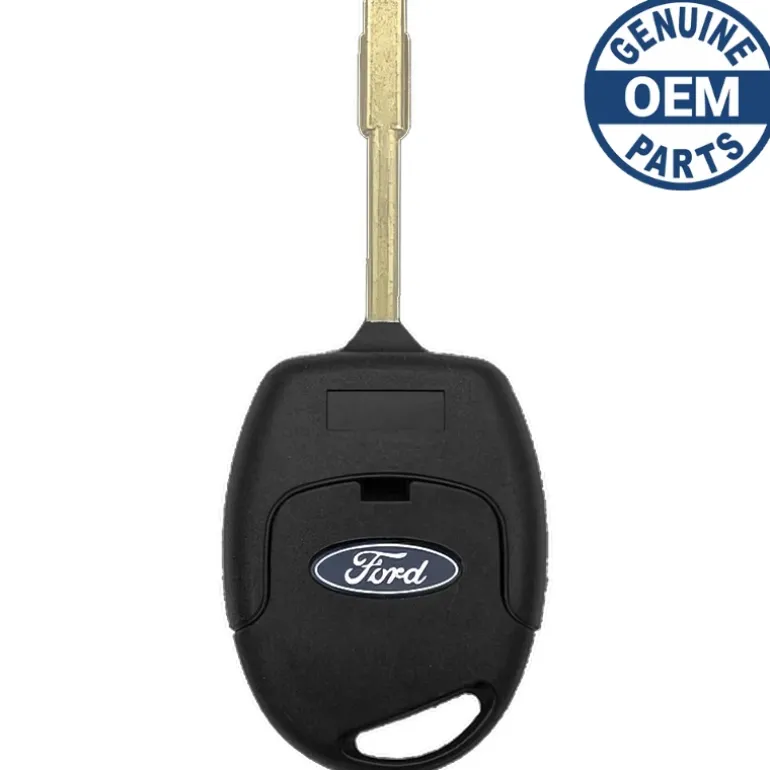

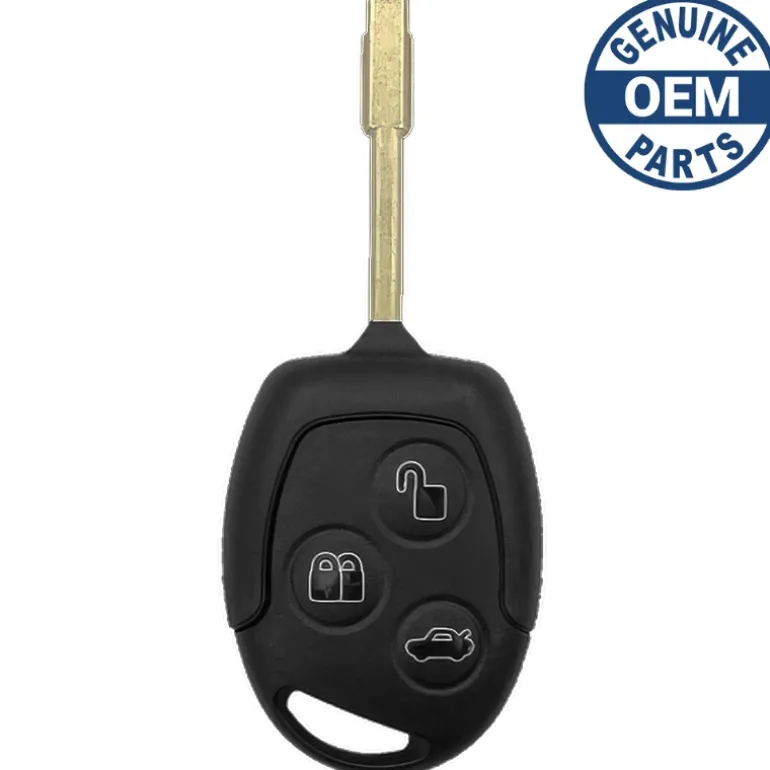

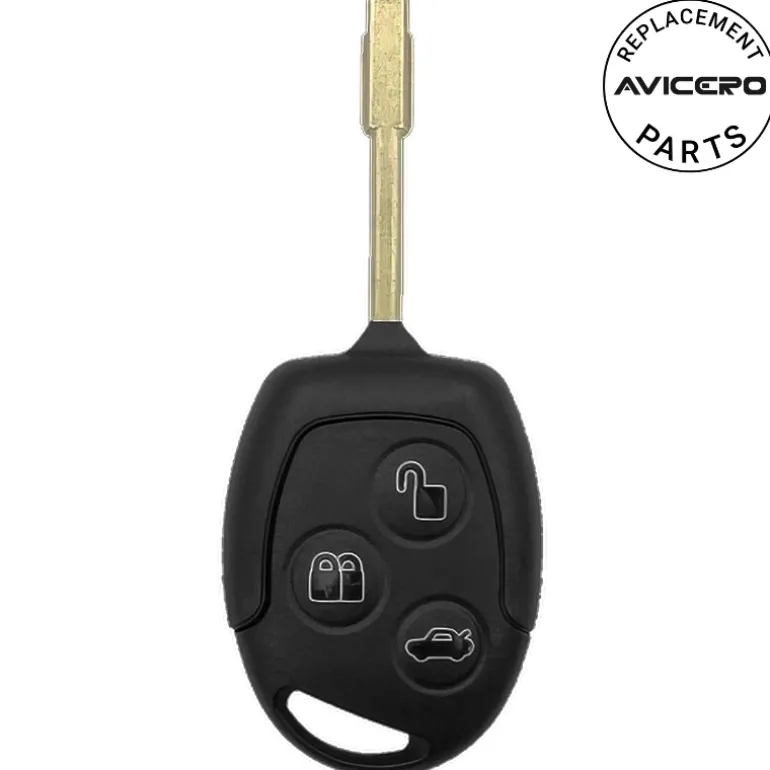

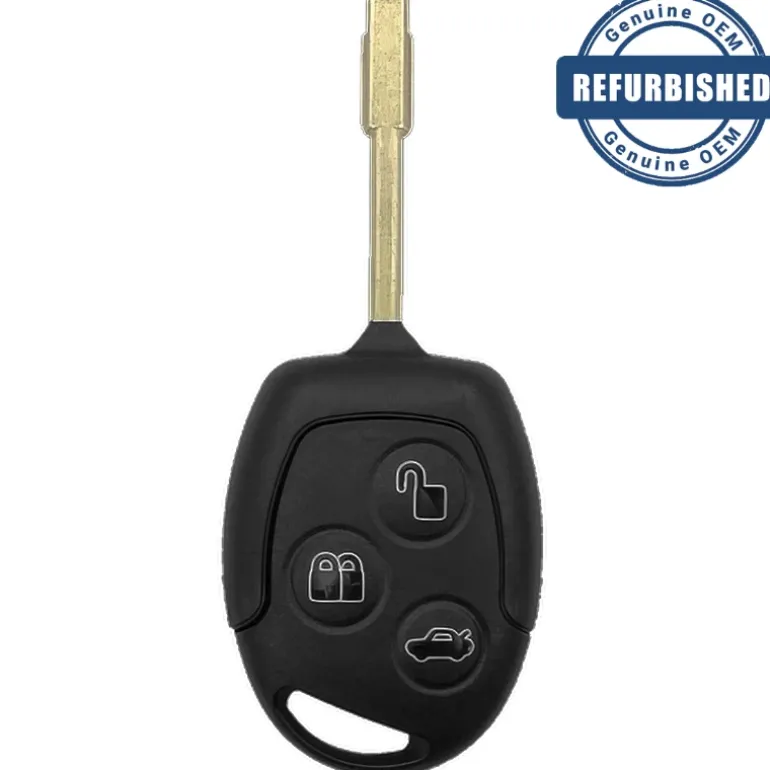

2011 Ford Transit Connect Remote Head Key FCC: KR55WK47899, PN: 4S6T-15K601-CA 5913139 164-R8042 EK: 5914117

All vehicles that use this remote are onboard programmable, meaning you can program the vehicle to accept new remotes yourself without any special tools or knowledge. Remote is tested before shipping, guaranteed to work with free technical support and new battery.

Remote For Ford:

This remote has anFCC ID KR55WK47899. Strattec Part Number 5913139. Ford Part Number 4S6T-15K601-CA and 164-R8042. It sends it’s signals on a frequency of 315Mhz.

Programming Procedure:

• NOTE: A maximum of 8 Remote Keyless Entry (RKE) transmitters can be programmed to the vehicle. Programming must be done at the same time for all RKE transmitters.

1. Use the door lock control switch to electronically unlock the door locks. NOTES: There is no audible or visual indication that programming mode has been entered.
2. Turn the ignition from the OFF to RUN position 4 times in rapid succession (within 6 seconds), with the fourth turn ending in OFF. NOTES: If no action is taken within 10 seconds after a transmitter has been programmed, the programming sequence ends.
3. Within 10 seconds, press any button on the RKE transmitter to be programmed. After the first RKE transmitter is programmed, press a button on each subsequent transmitter to be programmed (each within 10 seconds of each other).
4. Exiting the programming mode is accomplished if one of the following occurs: The key transitions to the RUN position; 10 seconds have passed since entering programming mode or since the last RKE transmitter was programmed; The maximum number (8) of RKE transmitters have been programmed.
5. Check the operation of the transmitter. If the door locks do not respond for the programmed RKE transmitter(s), wait several seconds and press the button again. If the door locks still fail to respond, refer to Handles, Locks, Latches and Entry Systems in your owner?? manual.

The following vehicles can use this remote when equipped with the factory keyless entry system:

Ford Transit (2010-2013) and Ford Fiesta (2010-2017).
