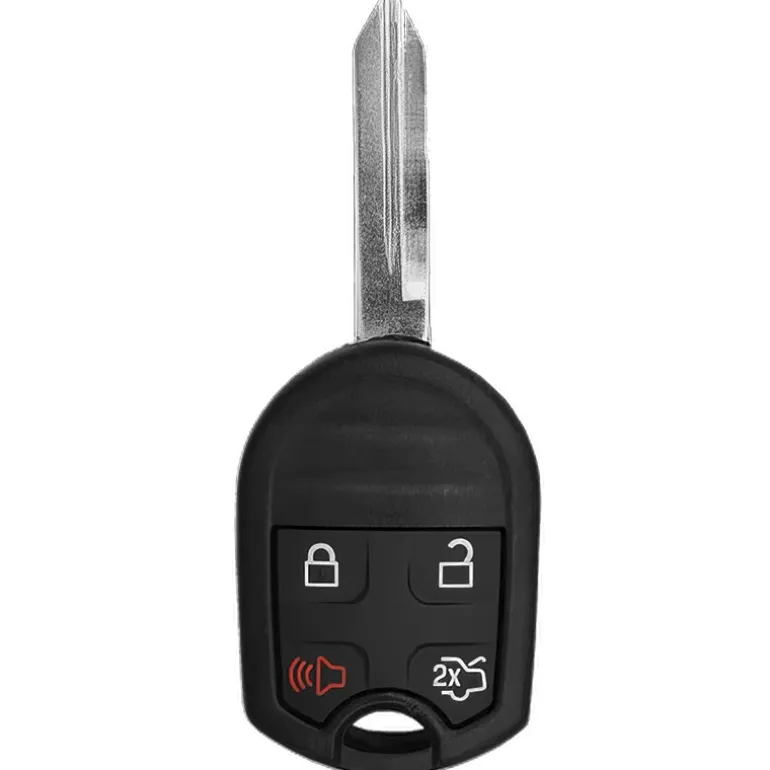

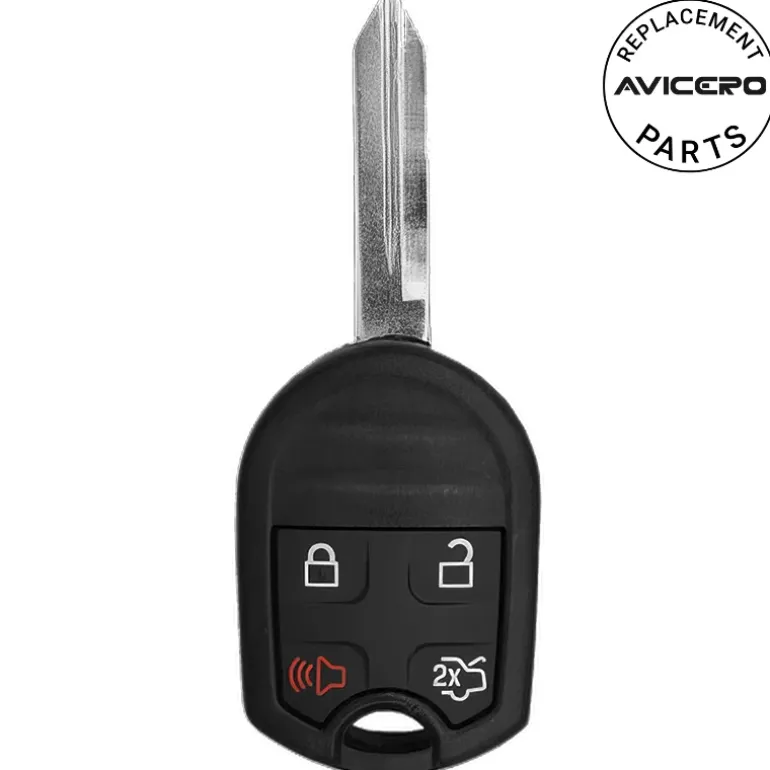

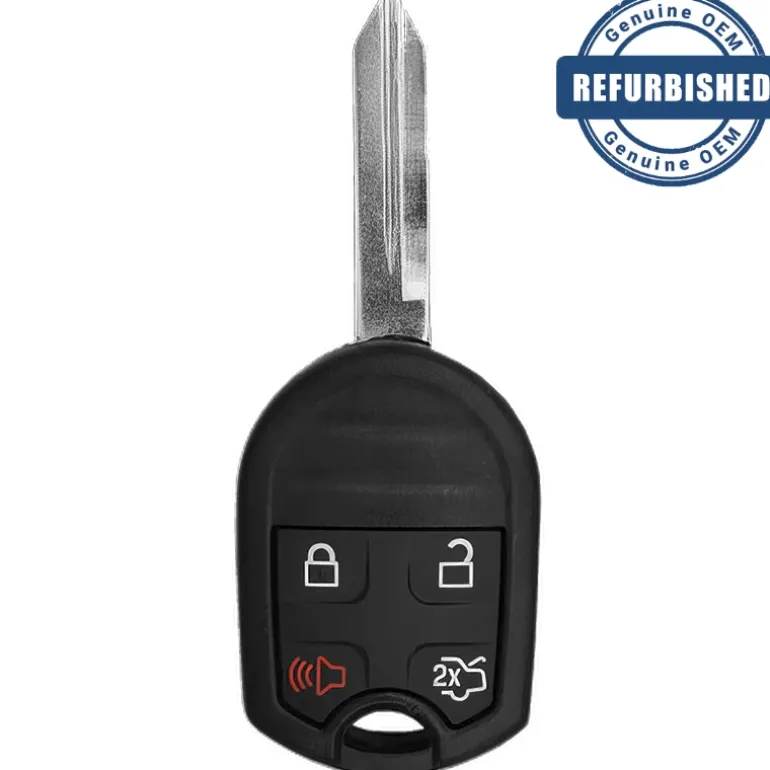

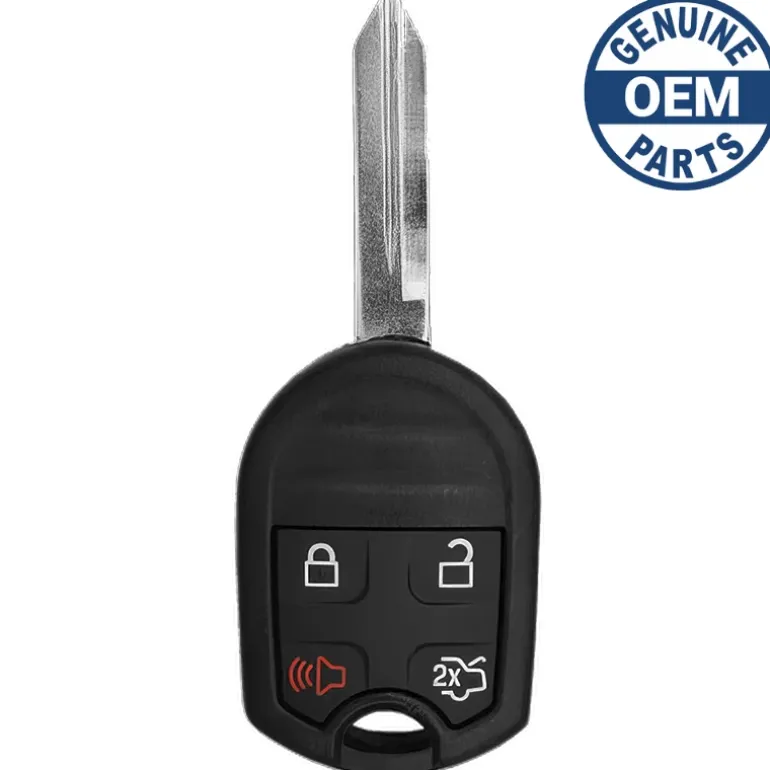

2013 Ford Mustang Remote Head Key PN: 5921293,164-R8021

This is tested and guaranteed to work. This remote sends it’s signals on a frequency of 315Mhz. This has 4 buttons. If there are two keys already working with the vehicle, this can be programmed via onboard procedure. When there isn’t 2 already working keys an automotive locksmith is required for programming.

Remote For Ford:

Red Boss logo. Factory keyless entry remote head key transmitter with FCC ID CWTWB1U793, OUCD6000022

The Ford part number is 164-R8021.

The Strattec part number is 5921293.

Programming Procedure:

1. Insert the first previously programmed coded keys into the ignition.
2. Turn the ignition from the 1 (LOCK) position to the 3 (RUN) position. Keep the ignition in the 3 (RUN) position for at least 3 seconds, but no more than 10 seconds.
3. Turn the ignition to the 1 (LOCK) position and remove the first coded key from the ignition.
4. Within 10 seconds of turning the ignition to the 1 (LOCK) position, insert the second previously coded key into the ignition.
5. Turn the ignition from the 1 (LOCK) position to the 3 (RUN) position. Keep the ignition in the 3 (RUN) position for at least 3 seconds, but no more than 10 seconds.
6. Turn the ignition to the 1 (LOCK) position and remove the second coded key from the ignition.
7. Within 20 seconds of turning the ignition to the 1 (LOCK) position and removing the previously programmed coded key, insert the new un-programmed key (new key/valet key) into the ignition.
8. Turn the ignition from the 1 (LOCK) position to the 3 (RUN) position. Keep the ignition in the 3 (RUN) position for at least 6 seconds.
9. Remove the newly programmed coded key from the ignition.

The following vehicles can use this remote when equipped with the factory keyless entry system:

Ford Mustang Boss 302 (2012-2014).
