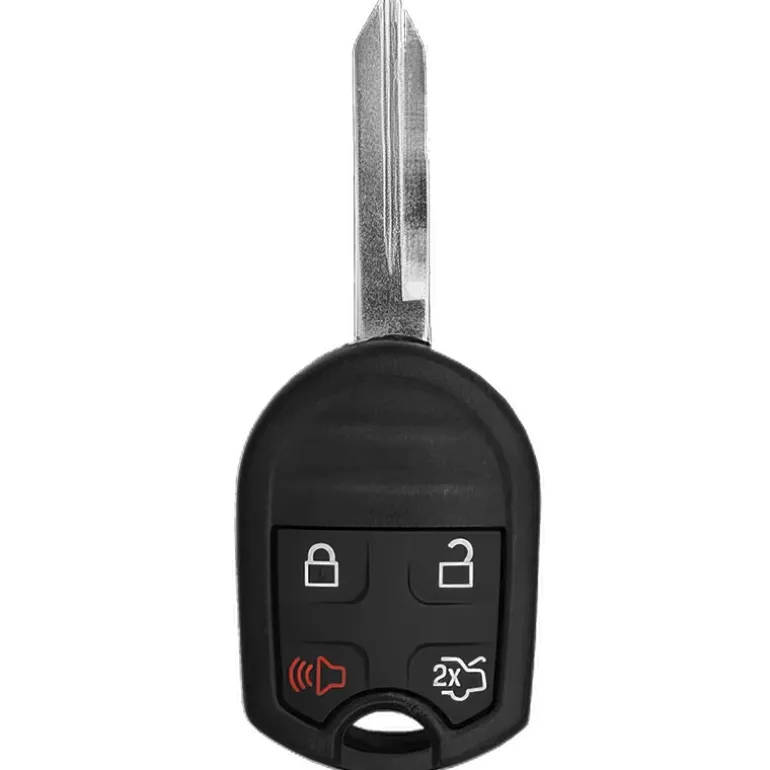

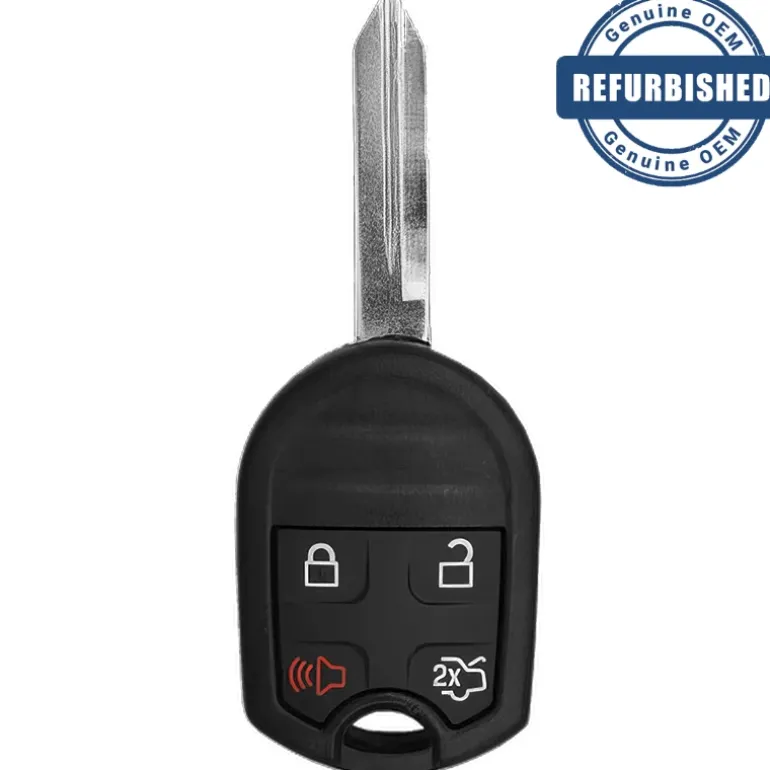

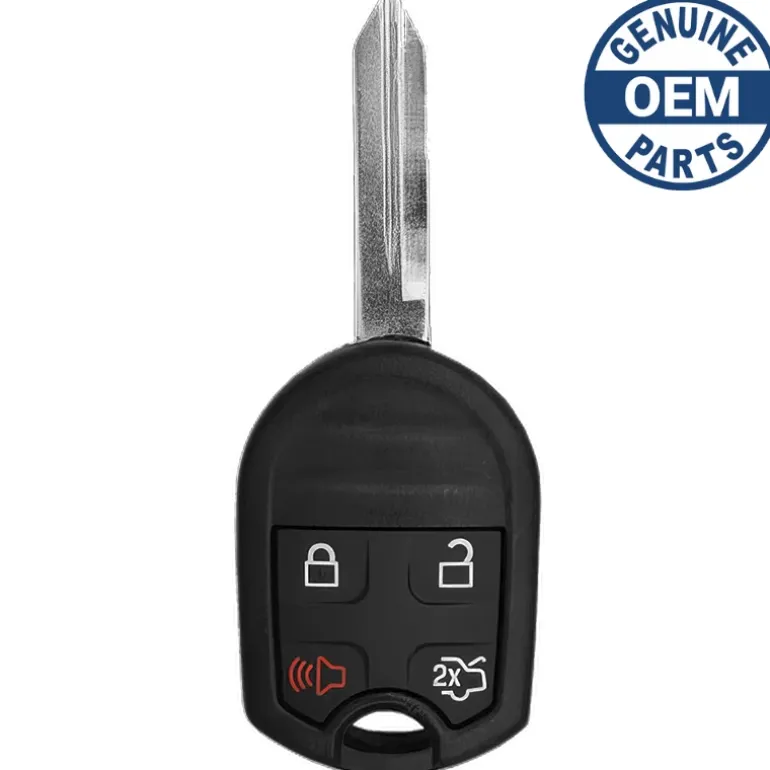

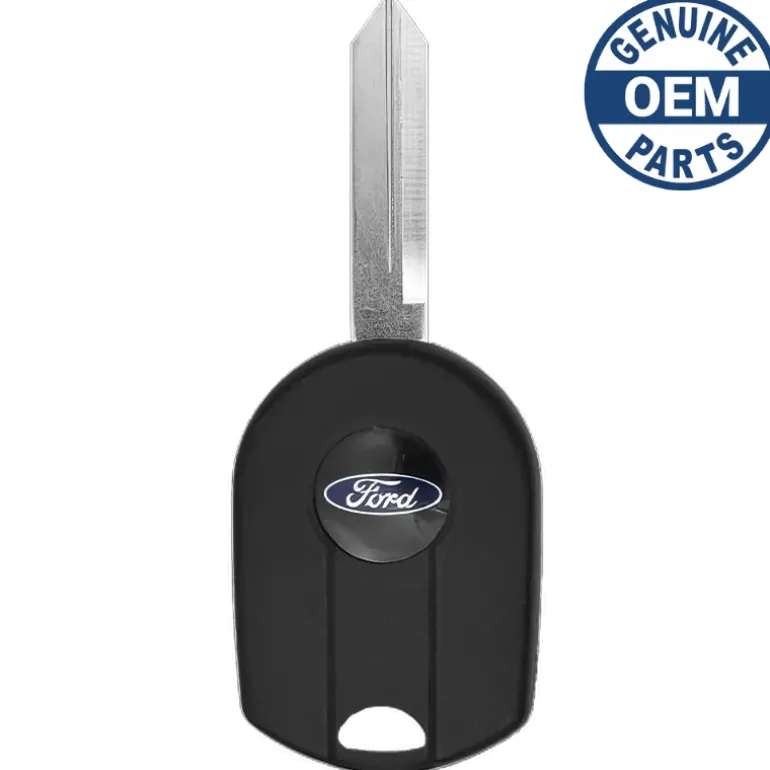

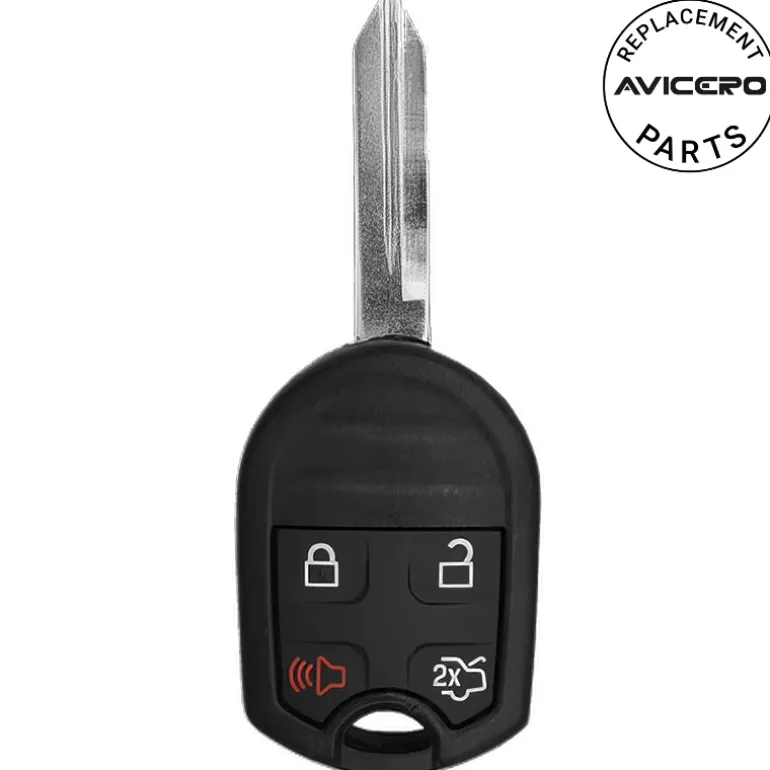

2013 Ford Mustang Shelby Remote Head Key PN: 164-R7996

This is tested and guaranteed to work. This has 4 buttons. This remote sends it’s signals on a frequency of 315Mhz. If there are two keys already working with the vehicle, this can be programmed via onboard procedure. Free phone tech support is available if needed.

Remote For Ford:

Factory keyless entry remote head key transmitter with FCC ID CWTWB1U793 or OUCD6000022.

The Ford part number is 164-R7996.

The Strattec part number is 5922051.

Programming Procedure:

1. Insert the first previously programmed coded keys into the ignition.
2. Turn the ignition from the 1 (LOCK) position to the 3 (RUN) position. Keep the ignition in the 3 (RUN) position for at least 3 seconds, but no more than 10 seconds.
3. Turn the ignition to the 1 (LOCK) position and remove the first coded key from the ignition.
4. Within 10 seconds of turning the ignition to the 1 (LOCK) position, insert the second previously coded key into the ignition.
5. Turn the ignition from the 1 (LOCK) position to the 3 (RUN) position. Keep the ignition in the 3 (RUN) position for at least 3 seconds, but no more than 10 seconds.
6. Turn the ignition to the 1 (LOCK) position and remove the second coded key from the ignition.
7. Within 20 seconds of turning the ignition to the 1 (LOCK) position and removing the previously programmed coded key, insert the new un-programmed key (new key/valet key) into the ignition.
8. Turn the ignition from the 1 (LOCK) position to the 3 (RUN) position. Keep the ignition in the 3 (RUN) position for at least 6 seconds.
9. Remove the newly programmed coded key from the ignition.

The following vehicles can use this remote when equipped with the factory keyless entry system:

Ford Mustang (2013-2014).
