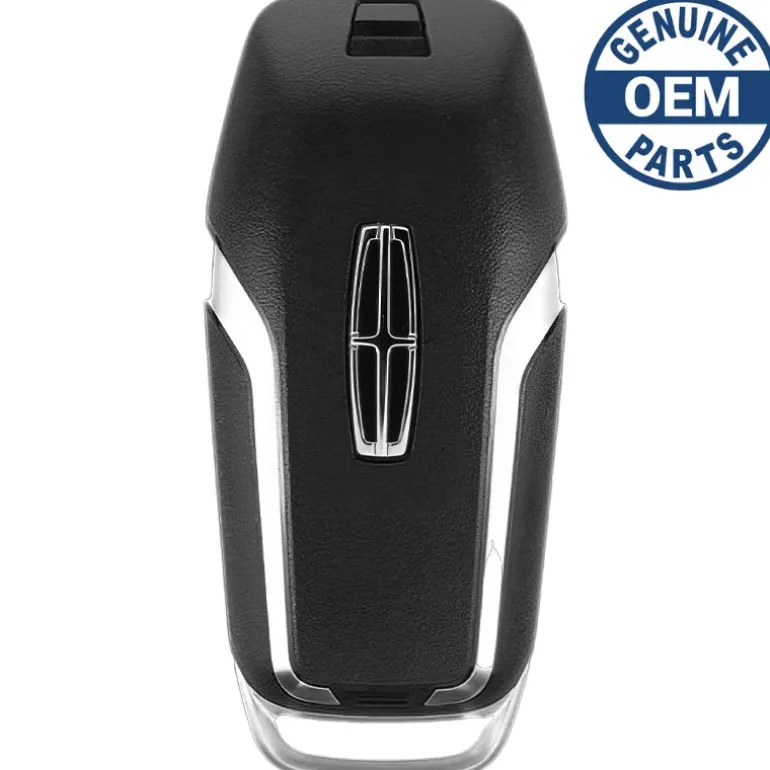

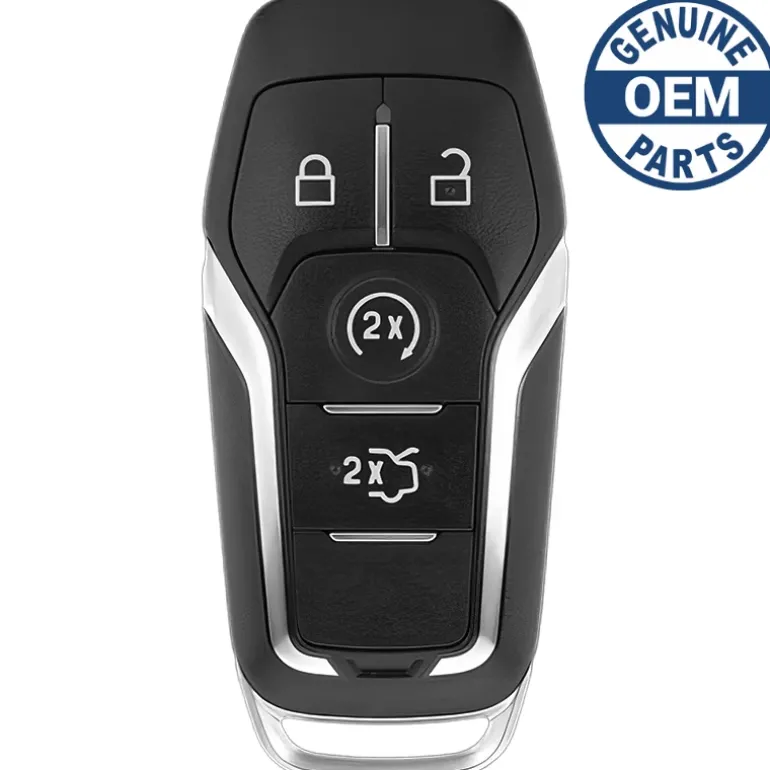

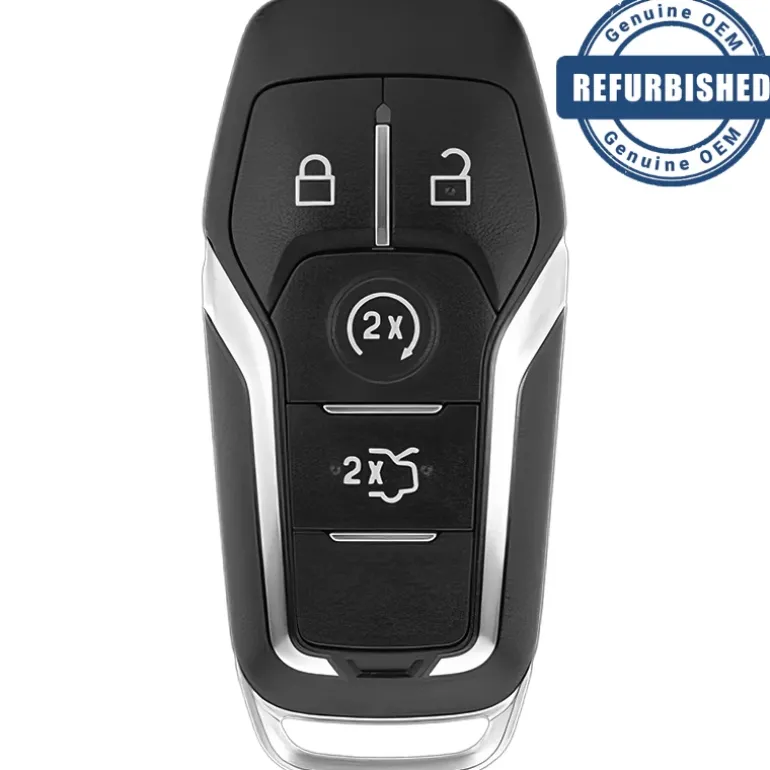

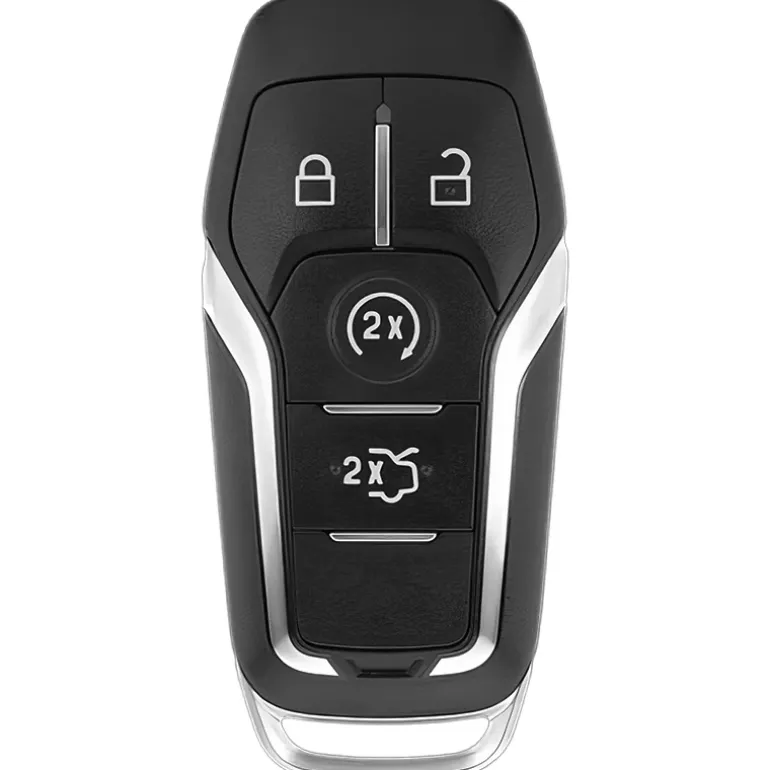

2013 Lincoln MKZ Smart Key Fob PN: 164-R7990, 5923897

Extended warranty is available on the checkout page.

Factory keyless entry smart key transmitter with FCC ID A2C31244700. The Ford part numbers: 164-R7990, DP5T-15K601-EE. The Strattec part number is 5923897. This is a Gen 4 Lincoln PEPS fob. This is tested and guaranteed to work. This has 4 buttons. This includes the emergency key K4223891.

Programming Procedure

Notes: An LED on the remote control provides status feedback of remote start or stop
commands. LED Status Solid Green means Remote start or extension successful. Solid
Red means Remote stop successful; engine off. Blinking Red means Remote start or
stop failed. Blinking Green means Waiting for status update. You must press each
button within three seconds of each other. Your vehicle will not remote start if you do not
follow this sequence.

PROGRAMMING A SPARE INTELLIGENT ACCESS KEY

NOTE: You can program a maximum for four intelligent access keys to your vehicle. You
must have two previously programmed intelligent access keys inside your vehicle and
the new unprogrammed intelligent access keys readily accessible. See a qualified
locksmith to have the spare key programmed if two previously programmed keys are not
available. Make sure that your vehicle is off before beginning this procedure. Make sure
that you close all the doors before beginning and that they remain closed throughout the
procedure. Perform all steps within 30 seconds of starting the sequence. Stop and wait
for at least one minute before starting again if you perform any steps out of sequence.
Read and understand the entire procedure before you begin.
1. Place a programmed intelligent access key in the backup slot in the center
console. The key ring must be at the top with the buttons facing toward the rear.
2. Wait 5 seconds, and then press the START/STOP button.
3. Remove the intelligent access key.
4. Within 10 seconds, place a second programmed intelligent access key in the
backup slot and press the START/STOP button.
5. Wait 5 seconds, and then press the START/STOP button again.
6. Remove the intelligent access key.
7. Wait 5 seconds, then place the unprogrammed intelligent access key in the
backup slot and press the START/STOP button. Programming is now complete.
Verify the remote control functions operate and your vehicle starts with the new
intelligent access key. If programming was not successful, wait 10 seconds and
repeat Steps 1 through 7.
