Before Purchasing
Important:Please make sure that your smart key fob looks identical and matches any of the part numbers or FCC IDs listed below. Contact Us with your VIN if you don’t have an existing remote for comparison.
Specifications

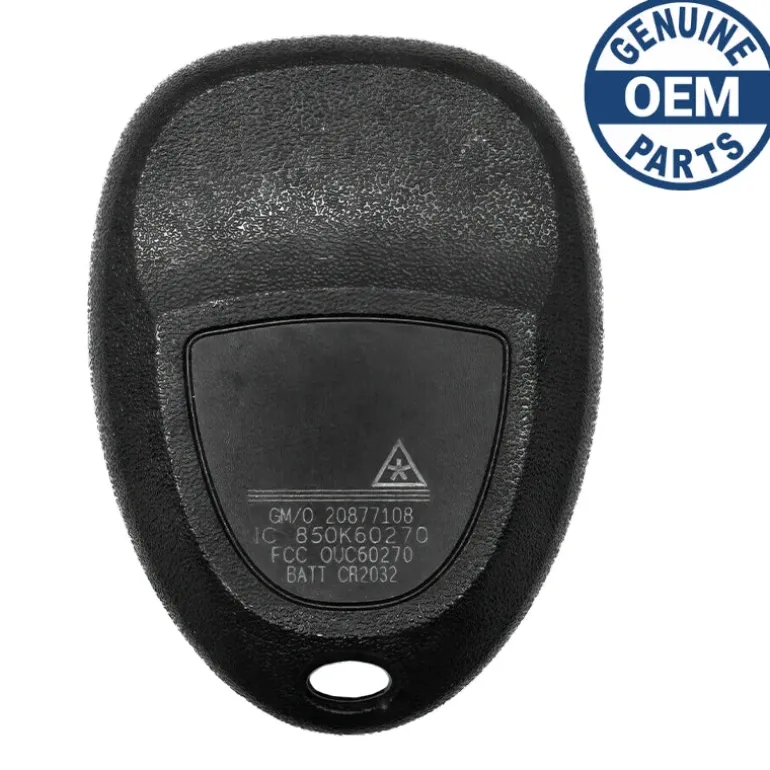

Part Numbers: 15883405 and 20877108
FCC ID: OUC60221 and OUC60270

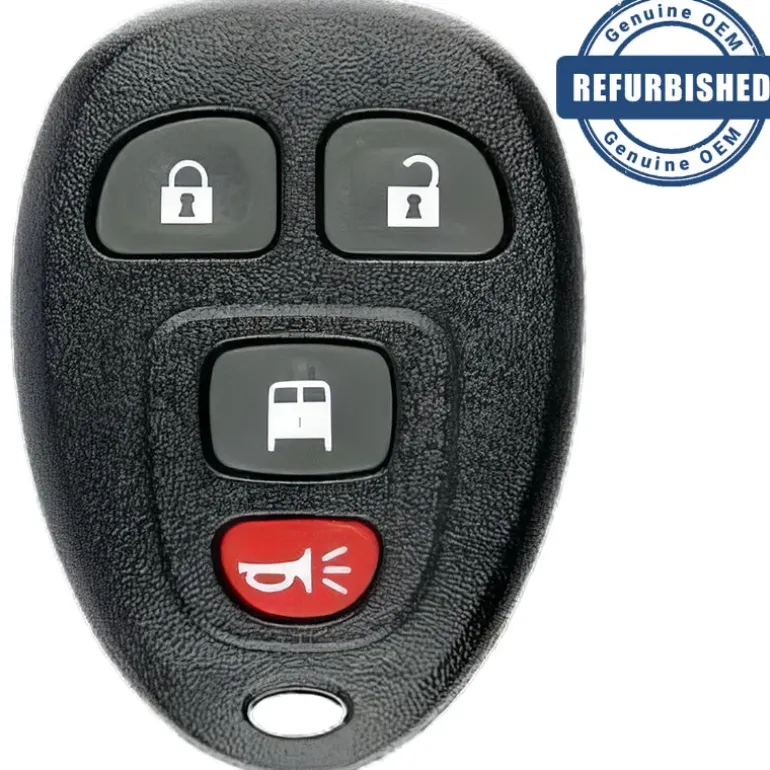

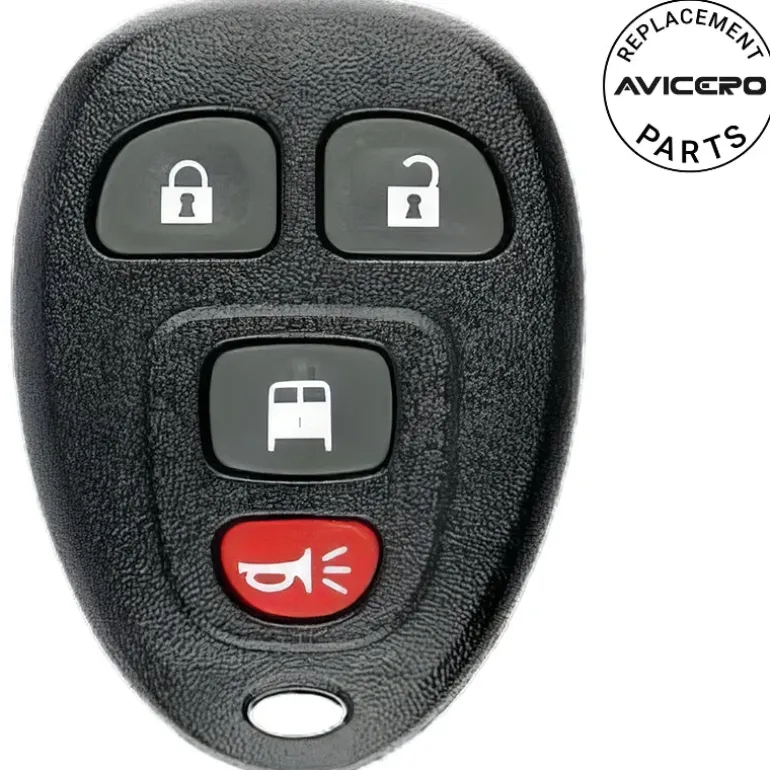

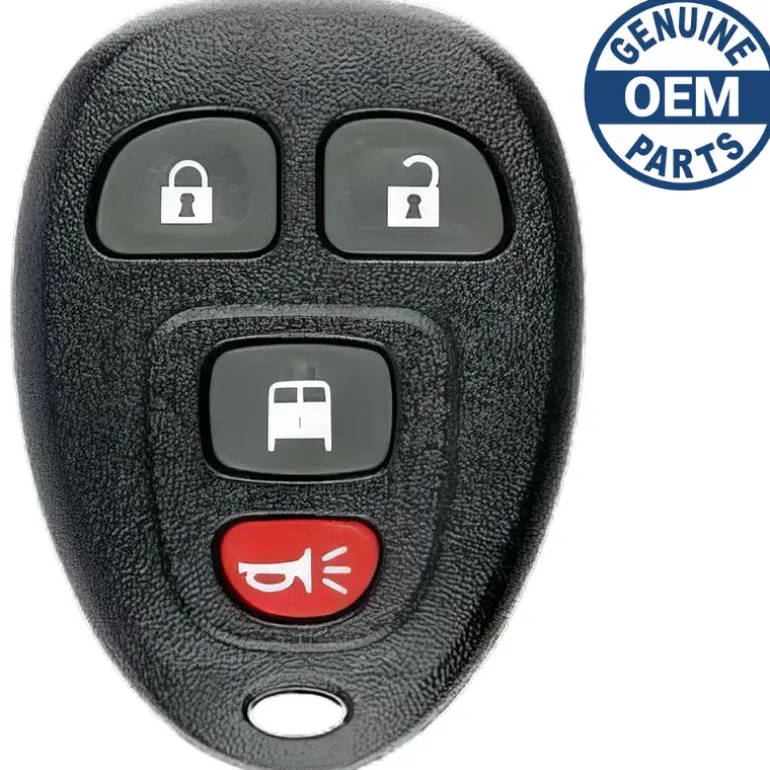

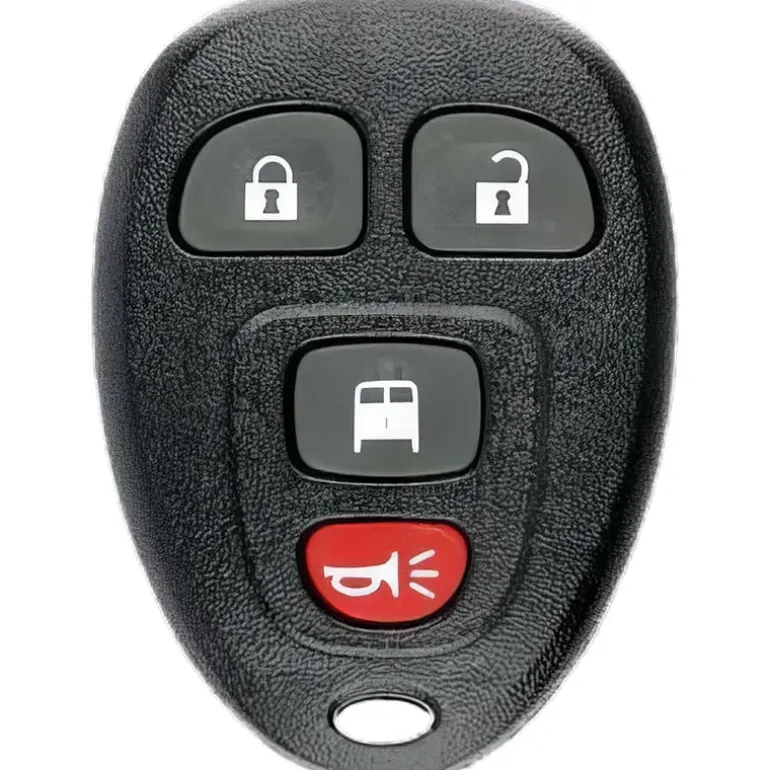

Buttons: Lock, Unlock, Rear Van Door, and Panic
Frequency: 315 MHz
Remote Programming:
Battery: CR2032 (included)
Compatibility
2008-2015 Chevy Express and GMC Savanna vans that have a power lock on the rear hatch but not side doors. The original FCC ID of this remote was OUC60270 with a part number of 15883405. That was superceded by FCC ID OUC60221 part number 20877108. The remote is tested for proper signal before sending to you. Free tech support is available for programming. Programming Procedure:
For 2011-2015 Express, 2011-2019 Savana.
These vehicles are not onboard programmable. You will need a local automotive locksmith to program your vehicle to accept the new remote.
For 2008-2010 Express, 2008-2010 Savana.
Insert the ignition key and turn to the ON position (position just before you crank the vehicle) so you can access the (DIC).This display allows you to match Remote Keyless Entry (RKE) transmitters to our vehicle. To match an RKE transmitter to your vehicle: 1. Press the vehicle information button until PRESS ??TO RELEARN REMOTE KEY displays.2. Press the set/reset button until REMOTE KEY LEARNING ACTIVE is displayed.3. Press and hold the lock and unlock buttons on the first transmitter at the same time for about 15 seconds. On vehicles with memory recall seats, the first transmitter learned will match driver 1 and the second will match driver 2. A chime will sound indicating that the transmitter is matched.4. To match additional transmitters at this time, repeat Step 3. Each vehicle can have a maximum of eight transmitters matched to it.5. To exit the programming mode, you must cycle the key to LOCK/OFF.
