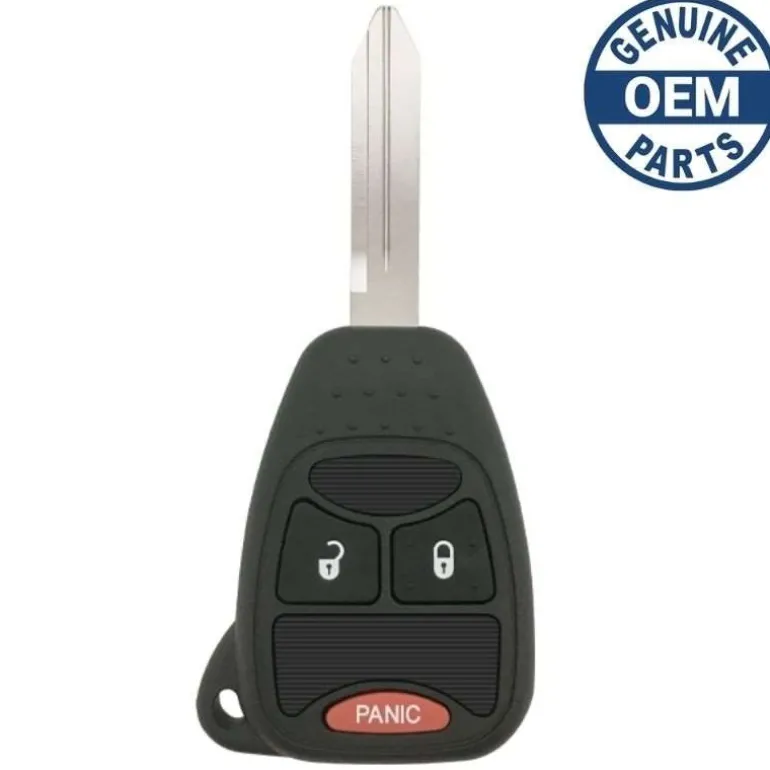

2014 Jeep Wrangler Remote Head Key FCC ID: OHT692713AA PN: 04589517AB

Remote For Jeep:

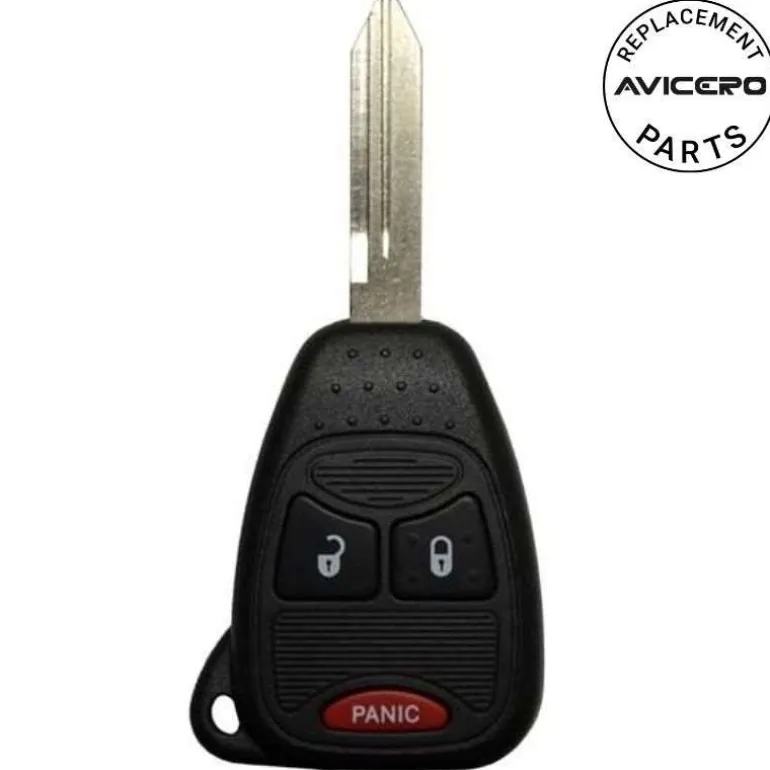

This remote features 3 buttons: Lock, Unlock, and Panic. This remote sends it’s signals on a frequency of 315Mhz. This remote will work for your vehicle if your vehicle is equipped with factory keyless entry.

Programming Procedure:

Make sure you have two keys that will start the vehicle before beginning the procedure.

1. Cut the new key to match your existing keys.
2. Insert the first valid key into the ignition and turn the ignition on for more than 3 seconds but less than 15 seconds. Turn the ignition off and remove the first key.
3. Within 15 seconds, use the second valid key to turn the ignition to on. After 10 seconds a chime will sound and the theft alarm light will begin to flash. Turn the ignition to off and remove the second key.
4. Insert the newly cut invalid key into the ignition and turn the ignition to on within 60 seconds. After 10 seconds a single chime will sound. The theft alarm light will stop flashing, then it will turn on for 3 seconds; then it will turn off. The new key has been validated and will be able to start the vehicle. If it was a remote head key then the remote will now operate the keyless entry system. Repeat this procedure for up to 8 keys.

The following vehicles can use this remote when equipped with the factory keyless entry system:

2017 Jeep Compass and 2007-2018 Jeep Wrangler.
