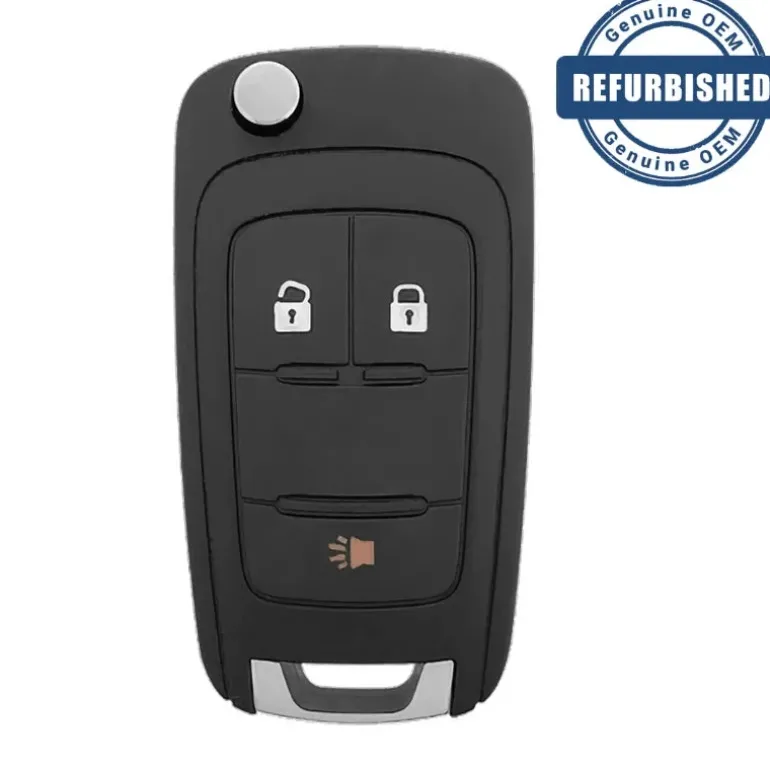

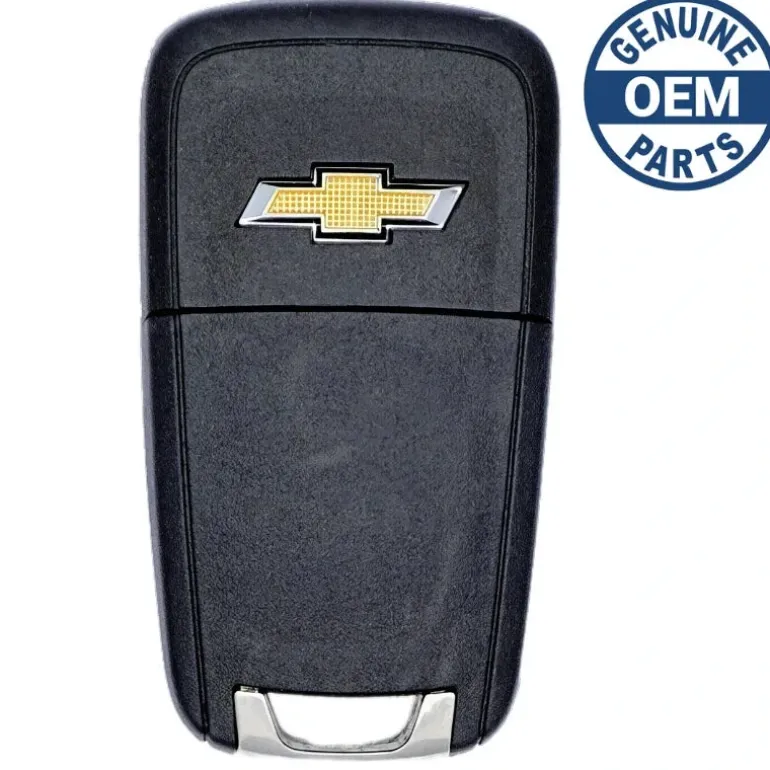

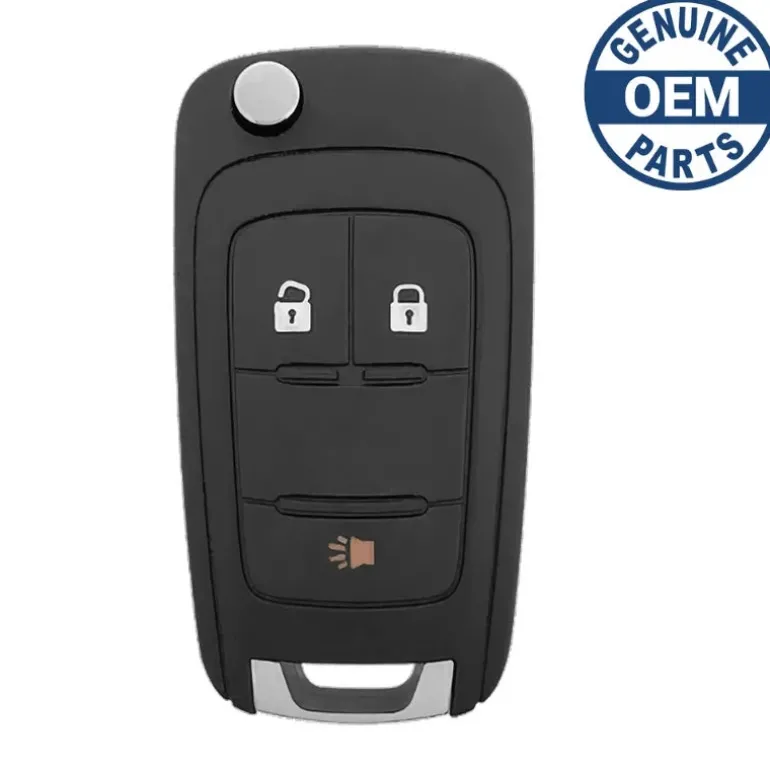

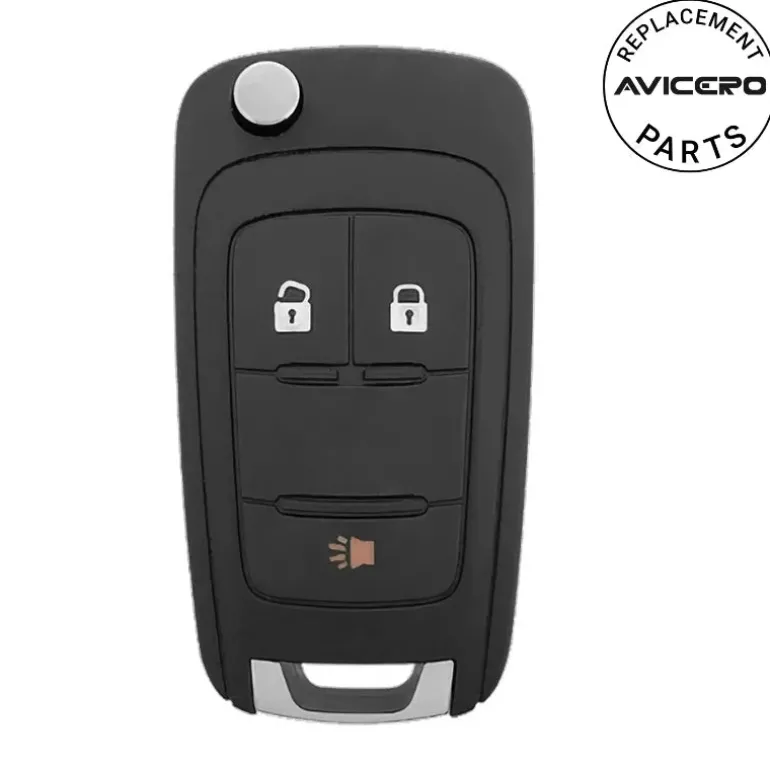

2016 Chevrolet Sonic Flipkey Remote PN: 20873621, 20934736, 20835406, 5913598

Important:Please make sure that your flipkey remote looks identical and matches any of the part numbers or FCC IDs listed below. Contact Us with your VIN if you don’t have an existing remote for comparison.

Part Numbers: 20873621, 20934736, 20835406, and 5913598

FCC ID: OHT01060512

Buttons:

Frequency:

Remote Programming:

Transponder Programming:

Chip ID:

Battery: (included)

Flipkey Blade:

(included)

1. With a previously learned master key, turn ON the ignition, with the engine OFF.
2. Turn OFF the ignition and remove the key.
3. Within 10 seconds of turning OFF the ignition, insert the key to be learned and turn ON the ignition. The vehicle has now learned the new key.

Notes:

• To initiate, this procedure requires that a learned master key be available.
• A total of 10 keys may be programmed to a single vehicle.
• This procedure adds keys only. The procedure does not erase previously learned keys.
• The keys to be learned must duplicate the mechanical cut of the current key.
• If more than one valet key is to be learned, immediately precede each valet key with a learned master key.
