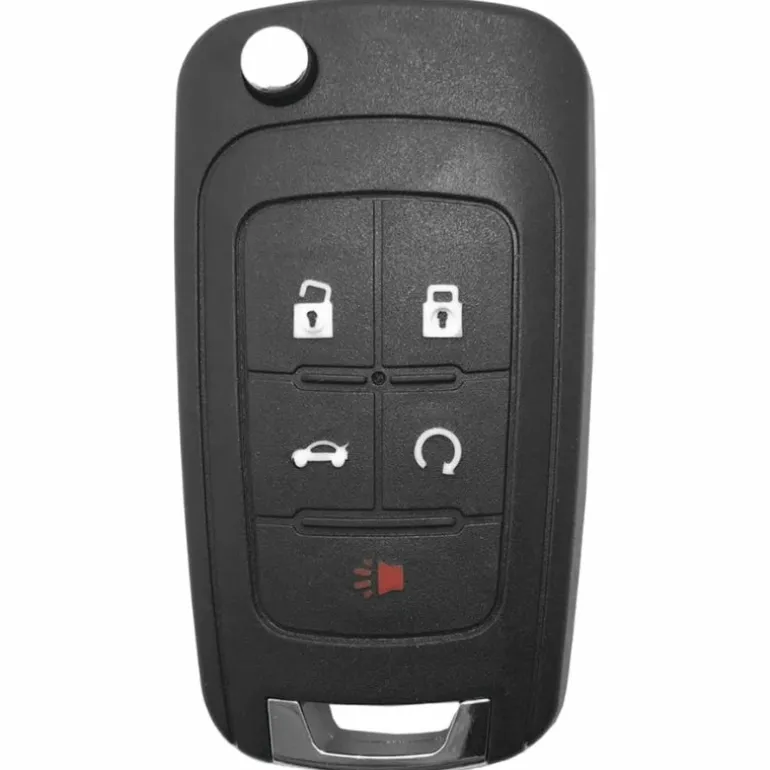

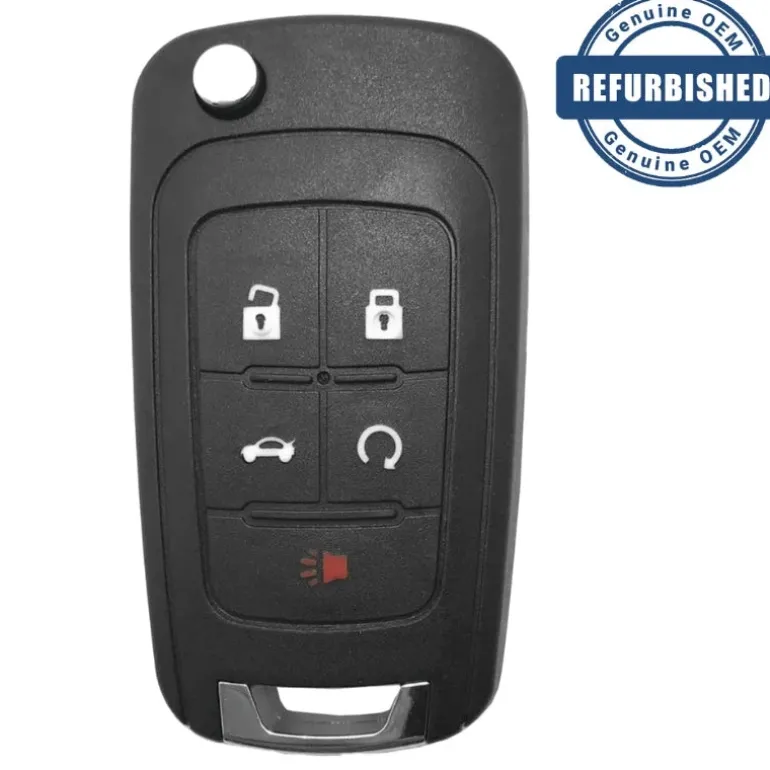

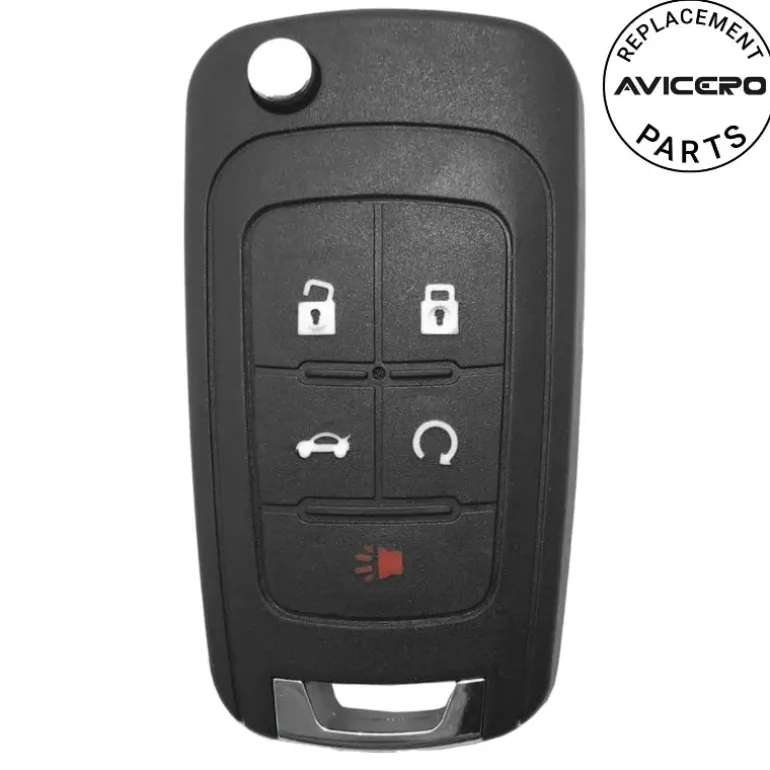

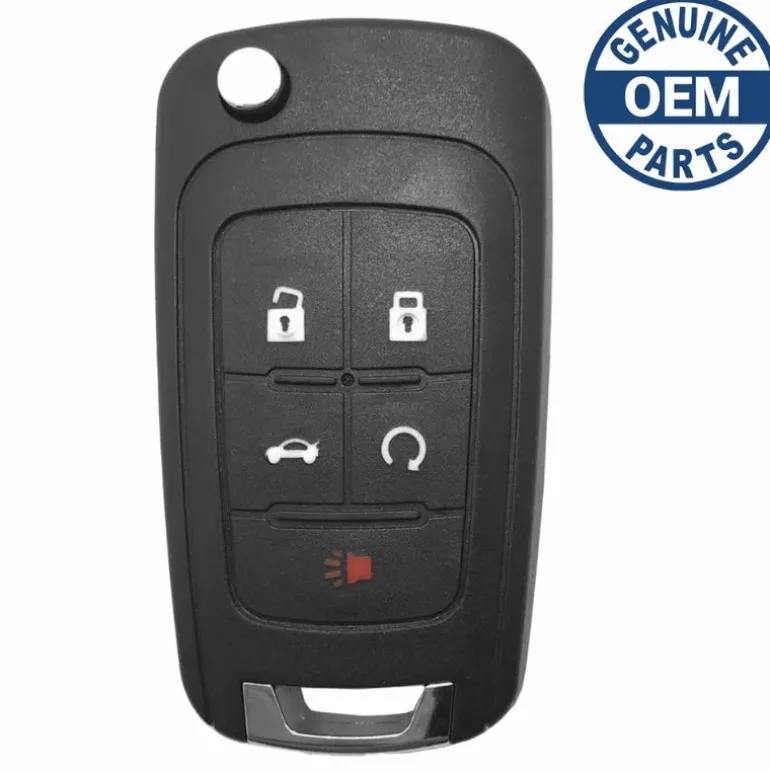

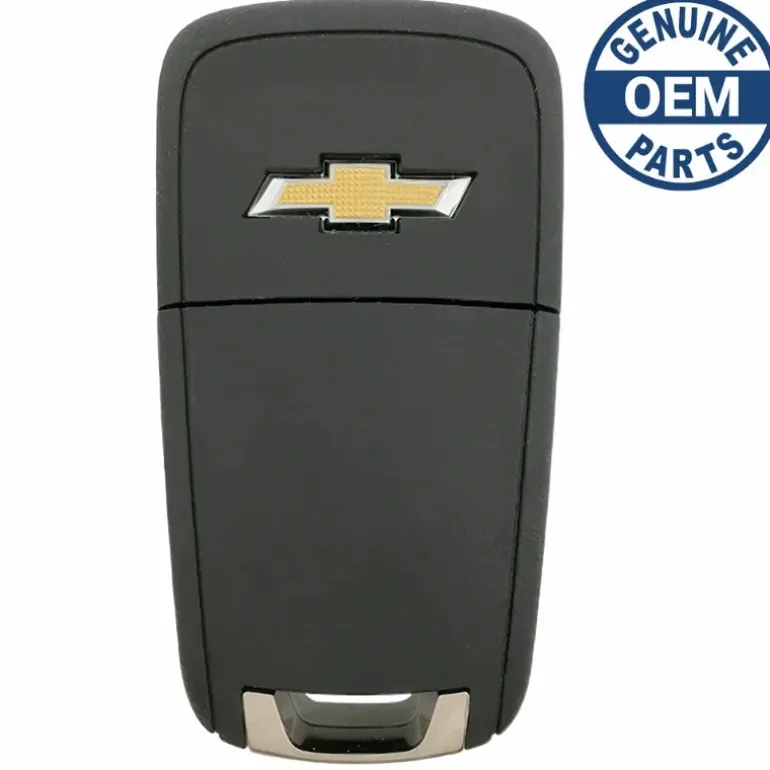

2019 Chevrolet Impala PEPS Flipkey PN: 5921873 13584829

All vehicles that use this remote are onboard programmable, meaning you can program the vehicle to accept new remotes yourself without any special tools or knowledge. Free phone tech support is available if needed.

Programming Procedure:

Programming Transmitters to the Vehicle:
– Only keyless access transmitters programmed to the vehicle will work.
– The vehicle can be reprogrammed so that lost or stolen transmitters no longer work.
– Any remaining transmitters will need to be reprogrammed. each vehicle can have up to five transmitters matched to it.

Programming with a recognized transmitter:
To program, the vehicle must be off and all of the transmitters, both currently recognized and new, must be with you.

1. Place the recognized transmitter(s) in the cup holder.
2. Insert the vehicle key of the new transmitter into the key lock cylinder located on the outside of the driver door and turn the key to the unlock position five times within ten seconds. The driver information center (dic) displays ??eady for remote #2, 3, 4 or 5.??BR>3. Place the new transmitter into the transmitter pocket. The transmitter pocket is located inside the center console storage area under the cup holder. The cup holder will need to be pulled out to access the transmitter pocket.
4. Press the ignition. when the transmitter is learned, the dic display will show that it is ready to program the next transmitter.
5. Remove the transmitter from the transmitter pocket and press the unlock button.

To program additional transmitters, repeat steps 3 through 5. when all additional transmitters are programmed, press and hold the ignition for 5 seconds to exit the programming mode.

Programming without a recognized Transmitter:
You can program up to five transmitters. This procedure will take approximately 30 minutes to complete. The vehicle must be off and all of the transmitters you wish to program must be with you.

1. Insert the vehicle key of the new transmitter into the key lock cylinder located on the outside of the driver door and turn the key to the unlock position five times within ten seconds. The driver information center (dic) displays ??emote learn Pending, Please wait.??BR>2. Wait for ten minutes until the dic displays ??ress engine start Button To learn??and then press the ignition. The dic displays will again show ??emote learn Pending, Please wait.??BR>3. Repeat step 2 two additional times. After the third time all previously known transmitters will no longer work with the vehicle. Remaining transmitters can be relearned during the next steps. The dic should now show ??eady for remote #1.??BR>4. Place the new transmitter into the transmitter pocket. The transmitter pocket is located inside the center console storage area under the upholder. The upholder will need to be pulled out to access the transmitter pocket.
5. Press the ignition. When the ignition is learned, the dic display will show that it is ready to program the next transmitter.
6. Remove the transmitter from the transmitter pocket and press the unlock button.

To program additional transmitters, repeat steps 4 through 6. when all additional transmitters are programmed, press and hold the ignition for 5 seconds to exit the programming mode.

Remote For Chevrolet:

FCC ID: OHT05918179.

GM Part Number: 13500319.

Strattec Part Number: 5921873.

Condition: OEM New

Brand: Chevrolet

Buttons: 5 (Lock, Unlock, Trunk, Remote Start, Panic). Have an automotive locksmith cut the key to work your vehicle. Then use the included instructions to add the new remote key to your vehicle. Works on: 2012-2016 Chevrolet Cruze with push button start and remote start, 2014-2016 Chevrolet Impala with push button start and remote start, 2014-2016 Chevrolet Malibu with push button start and remote start.

Remote is tested on a keyless entry tester to make sure we send you a working remote. Transponder is also verified to be in an “unlocked” state, meaning it is ready for vehicle programming.

The following vehicles can use this remote when equipped with the factory keyless entry system:

Chevrolet Cruze (2012-2015), Chevrolet Impala (2014-2016), Chevrolet Malibu (2013-2016).
