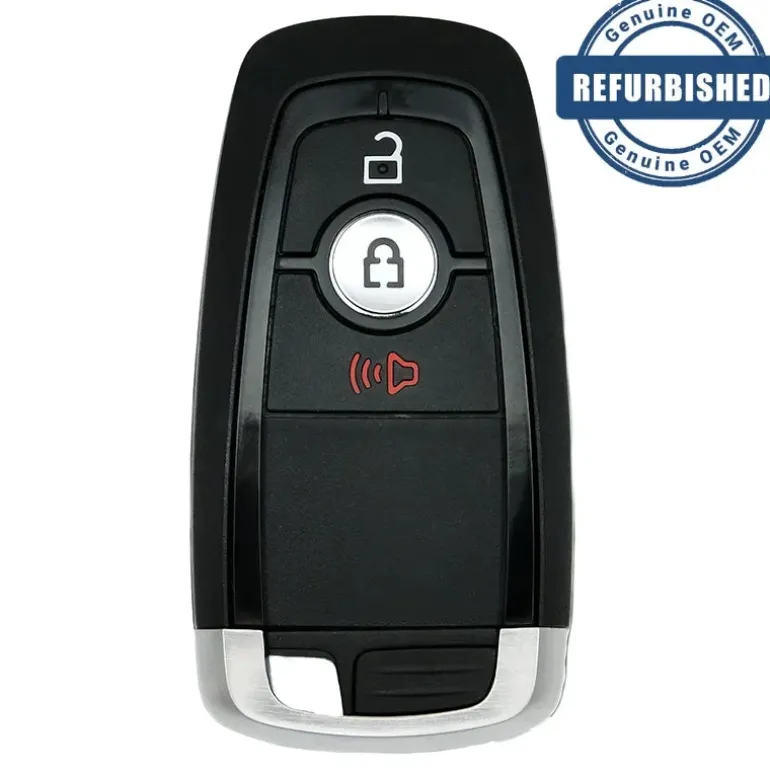

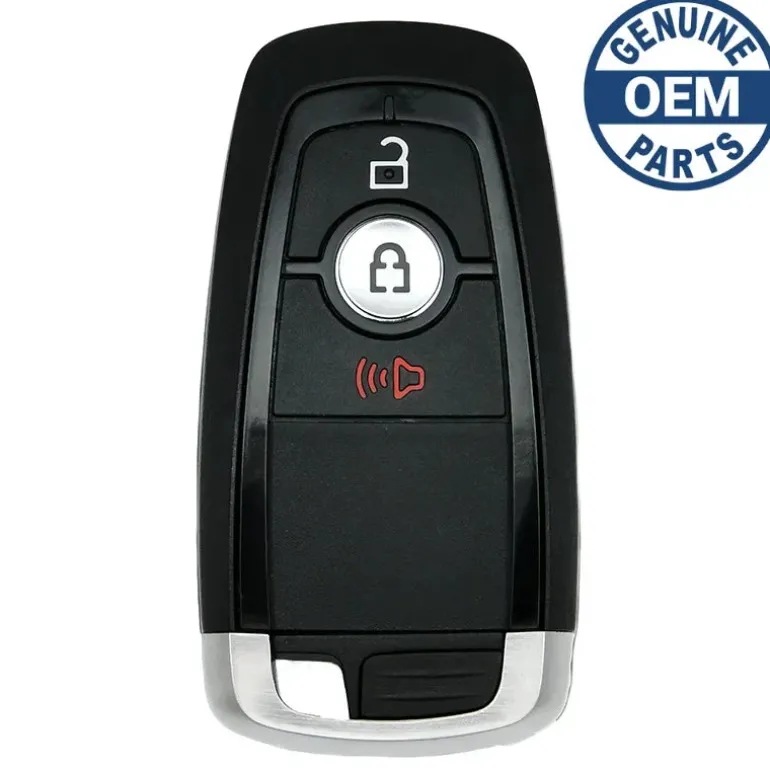

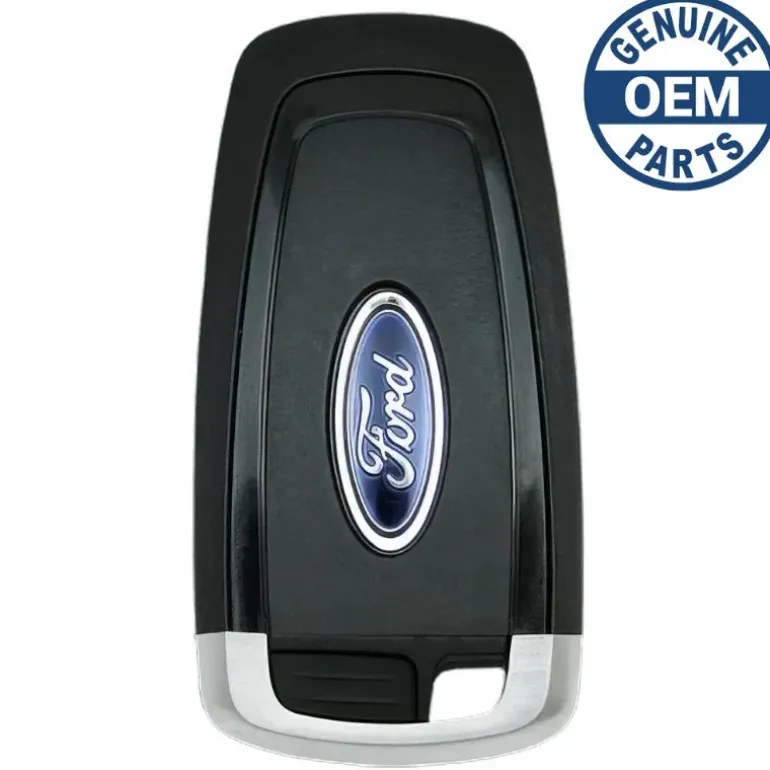

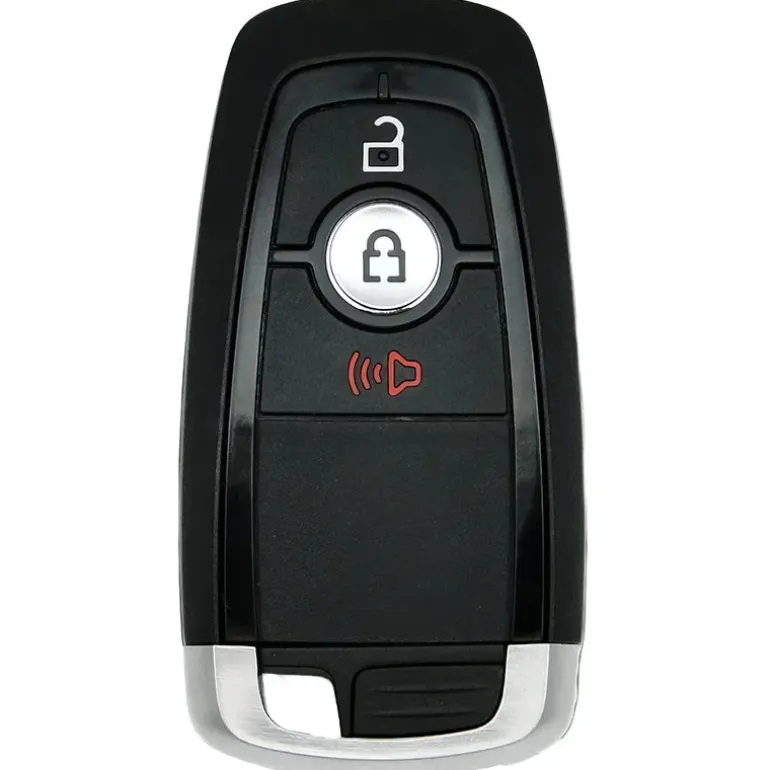

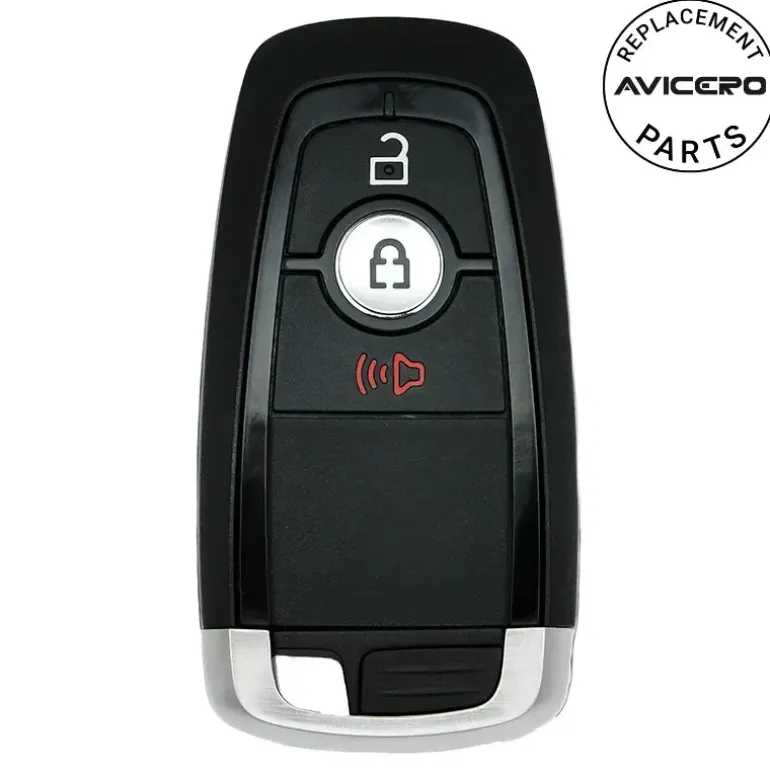

2020 Ford Ranger Smart Key Fob PN:164-R8163,5929508

2020 Ford Ranger Smart Key Fob PN:164-R8163,5929508

111,99 $

Color

Clear

SKU: SKU63rmen0EFf Categories: Ford, Ford Motor Group, Remotes, Shop By Make, Shop By Type, Smart Key Remotes Tags: Aftermarket New, Ford, OEM New, OEM Refurbished Brand: Ford

🚨 Stop! Ensure Compatibility Before Ordering!

Important: Some key fobs may look identical but have different internal components. If there are multiple versions of your key fob, you must verify the part number and FCC ID listed in the specifications to ensure compatibility. If only one option exists for your vehicle, VIN verification is not required.

⚠️ When to Provide Your VIN:

If you’re unsure or if multiple versions exist for your model, we recommend verifying with your VIN. You can enter it in the checkout note field, and we will verify it for you before processing your order.

Specifications

Part Numbers: 164-R8163 and 5929508

FCC ID: M3N-A2C93142300

Buttons:

Frequency: 315 mhz

Remote Programming: By Transponder

Transponder Programming: Scan Tool

Chip ID: HITAG PRO

Battery: (included)

Emergency Key: (included)

Programming Procedure #317

NOTE: A maximum of four intelligent access keys can be programmed to your vehicle. If you would like to replace a previously programmed access key with a new access key, or if you already have four access keys programmed to your vehicle, you must take your vehicle and all access keys to your authorized dealer to be erased and reprogrammed.

ADDING SPARE INTELLIGENT ACCESS KEYS:
You must have two previously programmed intelligent access keys inside the vehicle and the new un-programmed intelligent access keys readily accessible. If two previously programmed keys are not available, you must take your vehicle to your local automotive locksmith to have the spare key(s) programmed.
Ensure that the vehicle is off before beginning this procedure. Ensure that all doors are closed before beginning this procedure and that all doors remain closed throughout the procedure. Perform this procedure exactly as described below, and perform all steps within 30 seconds of starting the sequence. If any steps are performed out of sequence, stop and wait at least one minute before starting again. Please read and understand the entire procedure before you begin.

Place the new un-programmed intelligent access key in the pocket inside the center console utility compartment.
Press the driver or passenger power door unlock control three times.
Press and release the brake pedal one time.
Press the driver or passenger power door lock control three times.
Press and release the brake pedal one time. The indicator on the Start/Stop button should begin to rapidly flash, indicating that the programming mode has been entered and two programmed intelligent access keys have been detected in the vehicle.
Within one minute, press the start/stop button. A message will be displayed on the message center indicating that the new Intelligent Access Key was programmed. If four intelligent access keys have already been programmed to your vehicle, you cannot program anymore and the message. MAX # OF KEYS LEARNED will be displayed on the
message center.
Remove Intelligent Access Key from utility compartment pocket and press the unlock or lock control on the newly programmed intelligent access keys to exit programming mode.
Verify that the remote entry functions operate (lock, unlock) and that the vehicle starts with new Intelligent Access Key. If the Intelligent Access Key has been successfully programmed, it can be used to activate the Intelligent Access with Push Button Start feature and can be used to start your vehicle.
