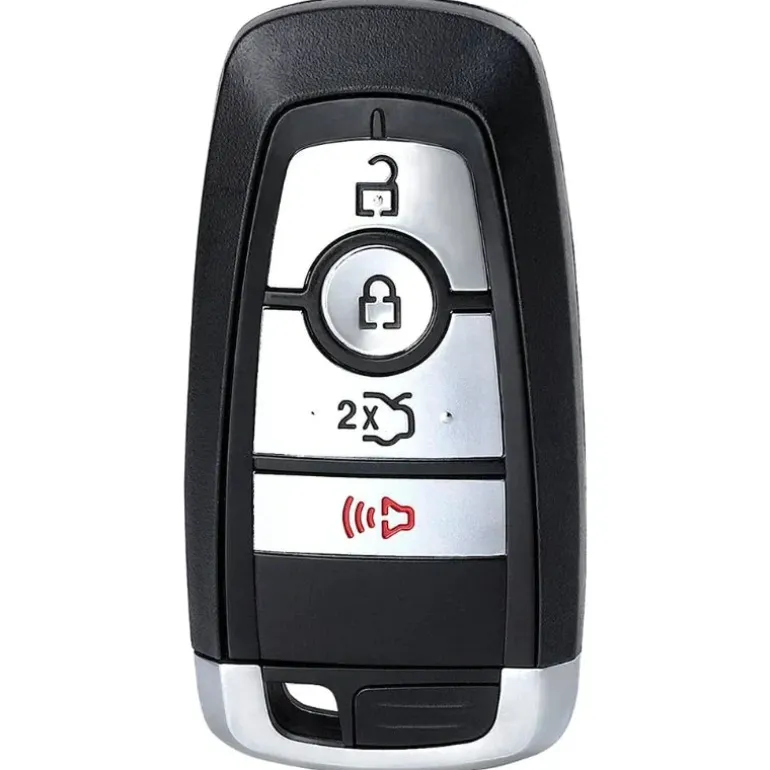

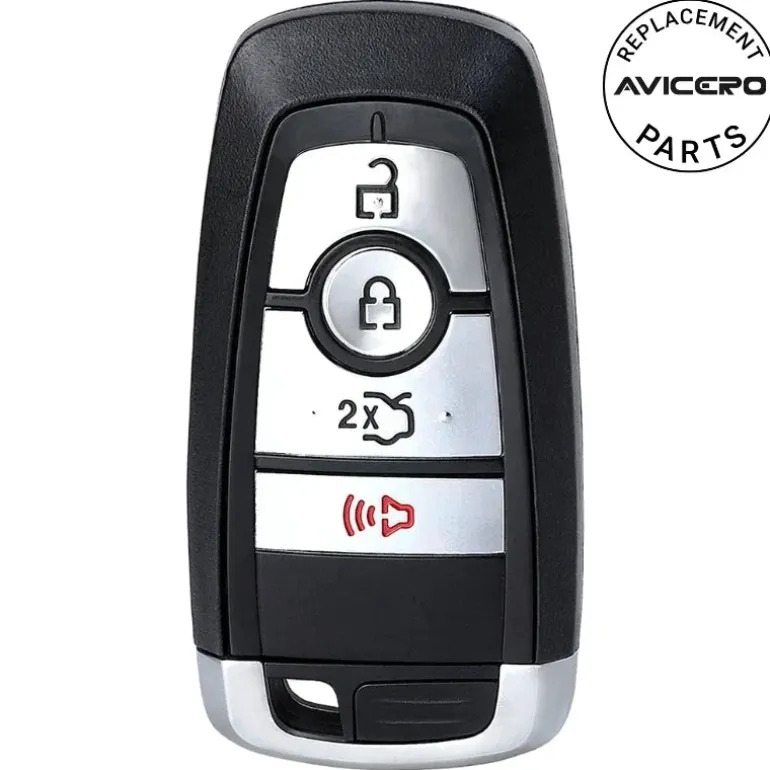

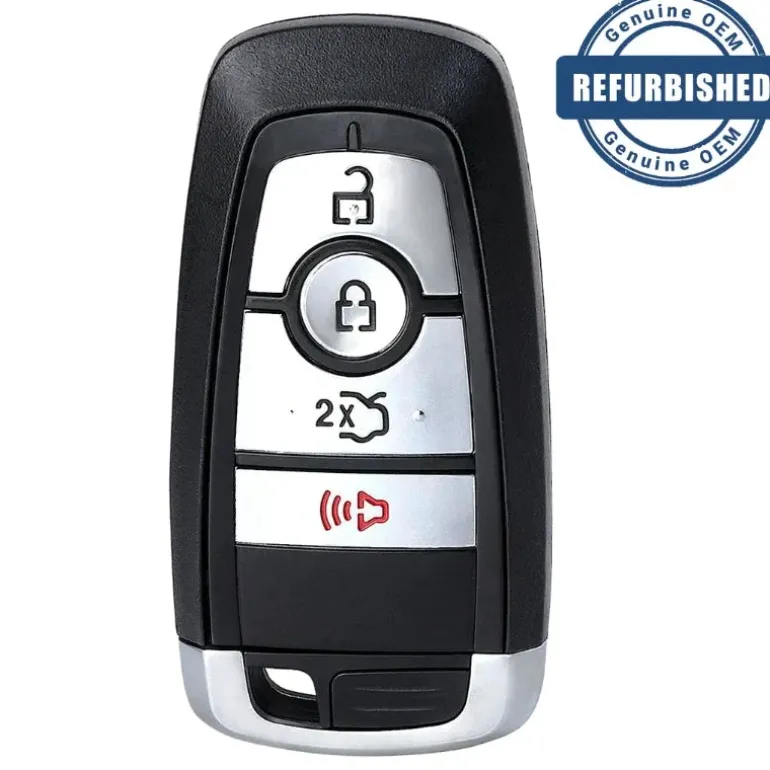

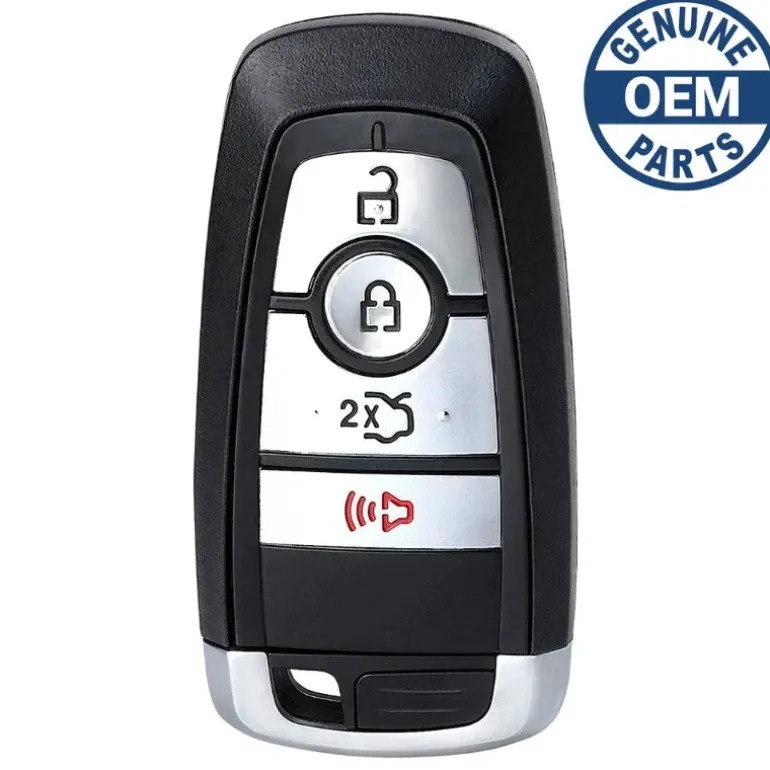

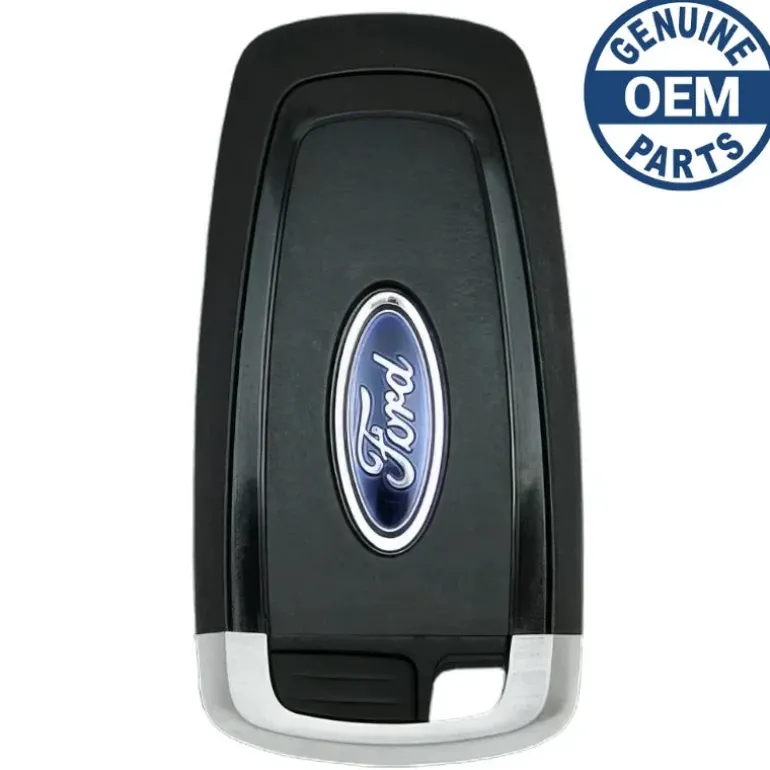

2021 Ford Edge Smart Key Fob PN: 164-R8150, 5929506

Part Numbers: 164-R8150, 5929506, and HS7T-15K601-AC

FCC ID: M3N-A2C93142300

Buttons: Lock, Unlock, Trunk, and Panic

Frequency: 315 Mhz

Remote Programming: Onboard

Transponder Programming: Onboard if 2 working exist

Chip ID: NXP HITAG-PRO ID49 128 Bit

Battery: CR2450 (included)

Emergency Key: (included)

PROGRAMMING A SPARE INTEGRATED KEYHEAD TRANSMITTER

You must have two previously programmed coded keys and the new unprogrammed key readily accessible. See an automotive locksmith to have the spare key programmed if two previously programmed coded keys are not available. You can use the link below to locate a local licensed automotive locksmith.

1. Remove the key blade from the transmitter.
2. Remove the rubber covering (A) from the cup holder. With the buttons facing upward and the unlock button facing the front of your vehicle, place the first intelligent access key into the backup slot (B).
3. Press the push button ignition switch.
4. Wait five seconds and then press the push button ignition switch again.
5. Remove the intelligent access key.
6. Within 10 seconds, place a second programmed intelligent access key in the backup slot and press the push button ignition switch.
7. Wait five seconds and then press the push button ignition switch again.
8. Remove the intelligent access key.
9. Wait five seconds, then place the unprogrammed intelligent access key in the backup slot and press the push button ignition switch.

Programming is now complete. Check that the remote-control functions operate, and your vehicle starts with the new intelligent access key. If programming was unsuccessful, wait 10 seconds and repeat steps 1 through 7.

If the key has been successfully programmed it will start your vehicle and operate the remote entry system (if the new key is an integrated keyhead transmitter).
