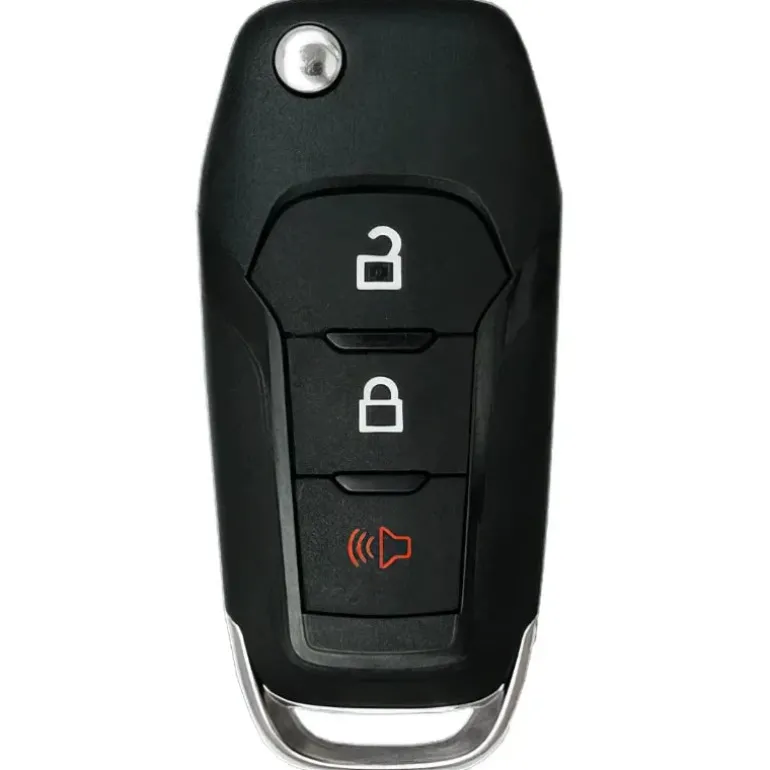

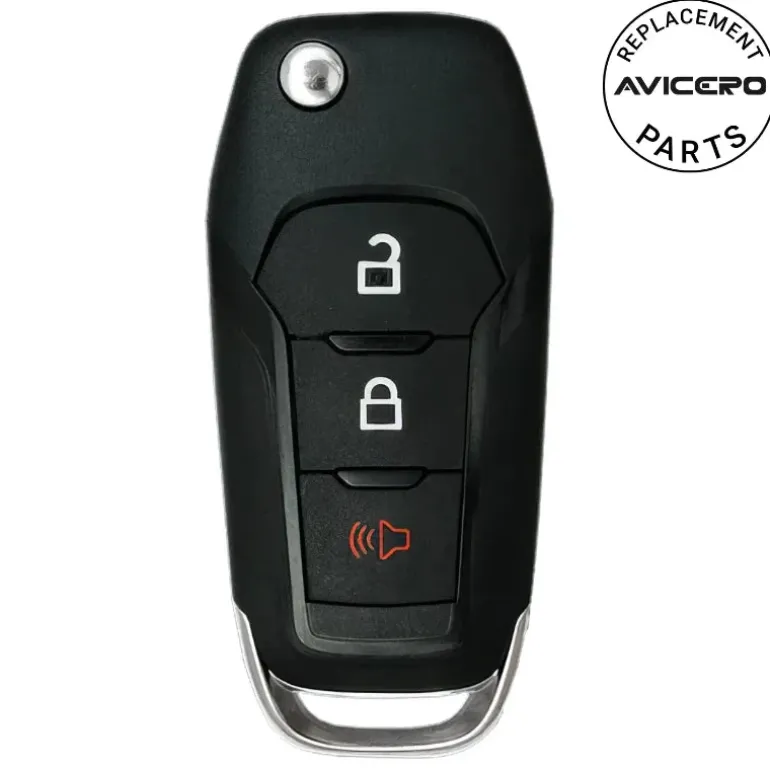

2022 Ford Explorer Flipkey Remote PN: 5923667, 164-R8130

FCC ID: N5F-A08TAA.

RotundaPart Number: 164-R8130.

Strattec Part Number: 5923667.

Condition: Brand New Aftermarket (No Logo)

Brand: Avicero

This flipkey remote has 3 buttons, tested and guaranteed to work.

Programming Procedure:

Only use integrated keyhead transmitters or standard SecuriLock_ keys. You must have two previously programmed coded keys and the new unprogrammed key readily accessible. See your authorized dealer to have the spare key programmed if two previously programmed coded keys are not available.

Read and understand the entire procedure before you begin.

1. Insert the first previously programmed coded key into the ignition.
2. Turn the ignition from off to on. Keep the ignition on for at least three seconds, but no more than 10 seconds.
3. Turn the ignition off and remove the first coded key from the ignition.
4. After three seconds but within 10 seconds of turning the ignition off, insert the second previously coded key into the ignition.
5. Turn the ignition from off to on. Keep the ignition on for at least three seconds, but no more than 10 seconds.
6. Turn the ignition off and remove the second previously programmed coded key from the ignition.
7. After three seconds but within 10 seconds of turning the ignition off and removing the previously programmed coded key, insert the new unprogrammed key into the ignition.
8. Turn the ignition from off to on. Keep the ignition on for at least six seconds.
9. Remove the newly programmed coded key from the ignition. If the key has been successfully programmed it will start the engine and operate the remote entry system (if the new key is an integrated keyhead transmitter). If it was not programmed successfully, wait 10 seconds and repeat Steps 1 through 8. If you are still unsuccessful, bring your vehicle to your authorized dealer.

The following vehicles can use this remote when equipped with the factory keyless entry system:

Ford EcoSport (2018-2020), Ford Escape (2020), Ford Explorer (2016-2017), Ford F-150 (2015-2020), Ford F-250 Super Duty (2015-2020), Ford F-350 Super Duty (2015-2020).
