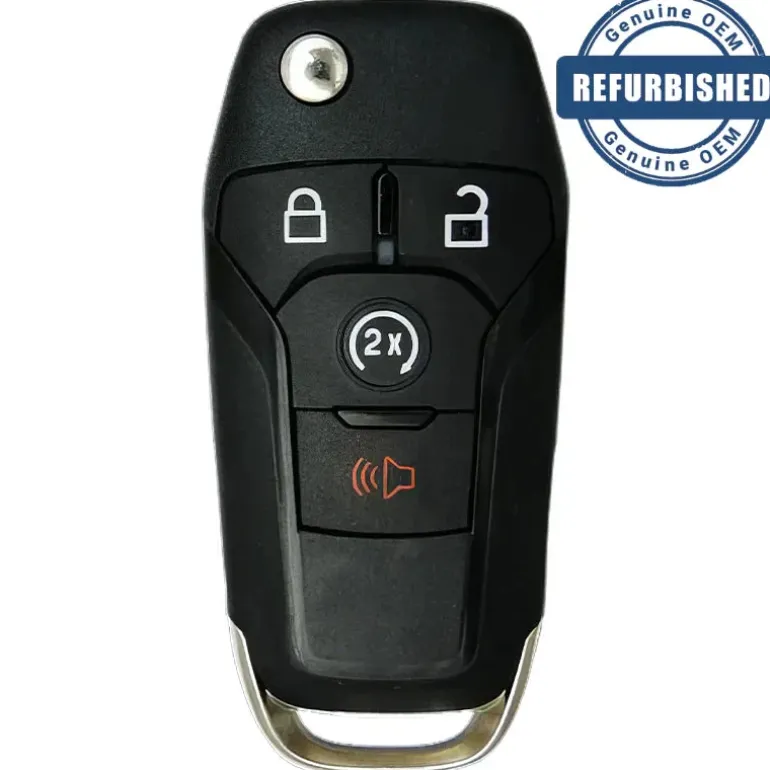

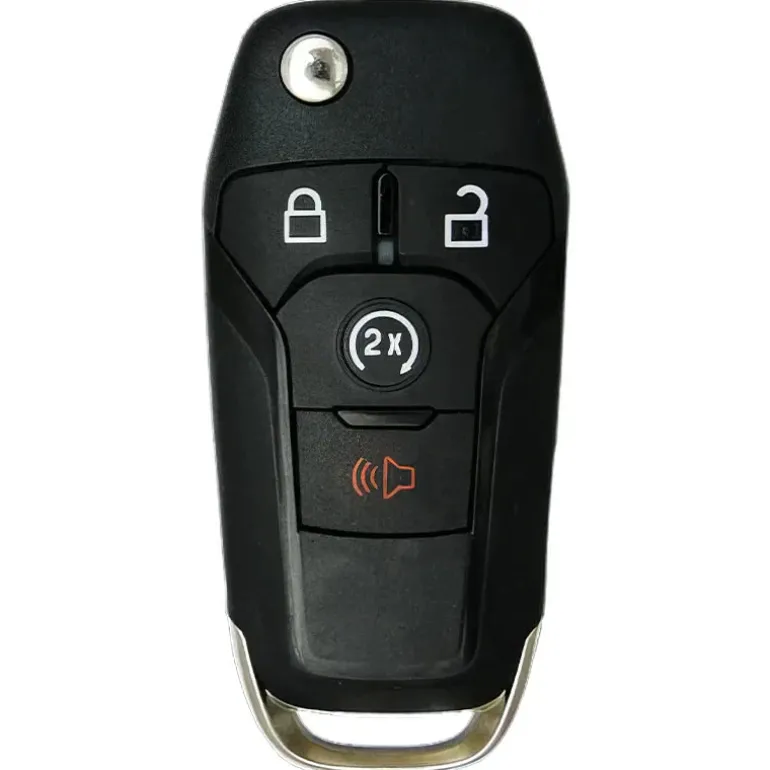

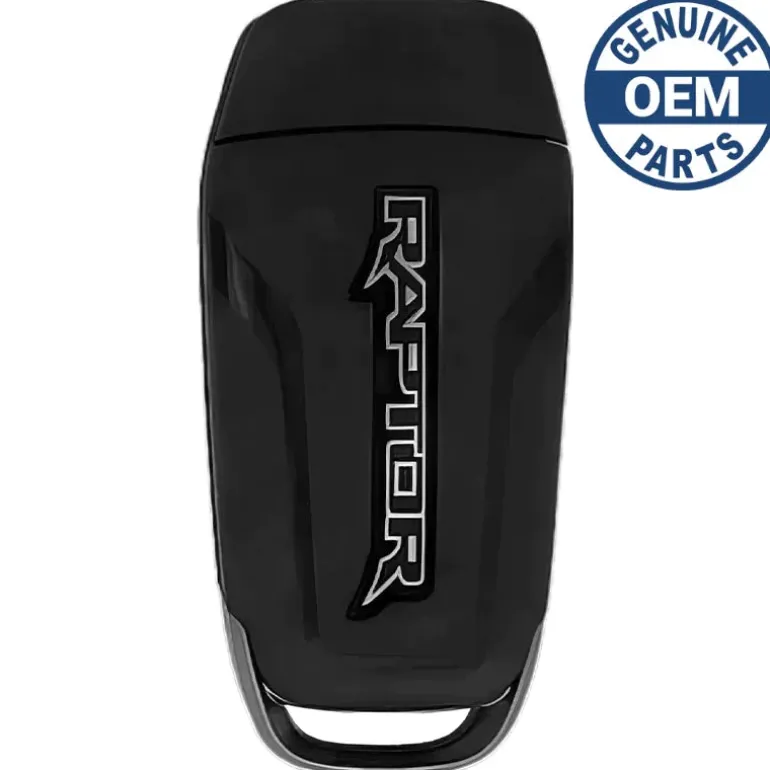

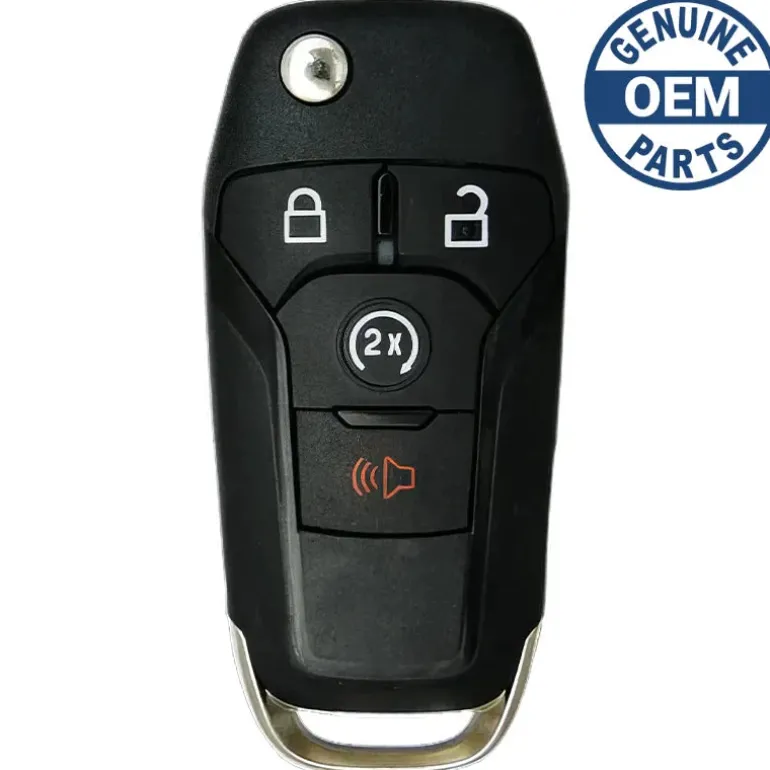

2022 Ford F-150 Raptor Smart Flip Key PN: 164-R8189

Important:Please make sure that your flipkey remote looks identical and matches any of the part numbers or FCC IDs listed below. Contact Us with your VIN if you don’t have an existing remote for comparison.

Part Numbers: 164-R8189 and 5933454

FCC ID: N5F-A08TDA

Buttons: Lock, Unlock, Remote Start, and Panic

Frequency: 902 MHz

Remote Programming:

Transponder Programming:

Chip ID:

Battery: CR2032 (included)

Flipkey Blade:

(included)

KEY PROGRAMMING – PROGRAM A KEY USING TWO PROGRAMMED KEYS

NOTES:
• This procedure works only if 2 or more programmed keys are available. If 2 programmed keys are not available, refer to Key Programming Using Diagnostic Equipment in your owner’s manual.

1. Insert the first programmed PATS key into the ignition and turn the key from the OFF position to the RUN position (maintain the key in the RUN position for approximately 3 seconds).
2. Turn the first key to the OFF position and remove the key from the ignition.
3. Within 10 seconds of turning the key to the OFF position, insert a second programmed PATS key into the ignition and turn the key from the OFF position to the RUN position (maintain the key in the RUN position for approximately 3 seconds).
4. Turn the second key to the OFF position and remove the key from the ignition.
5. Within 10 seconds of turning the key to the OFF position, insert the new unprogrammed PATS key into the ignition and turn the key from the OFF position to the RUN position (maintain the key in the RUN position for approximately 3 seconds).
6. If it is desired to program additional key(s) (up to a total of 8 keys can be programmed), repeat steps 1 – 5 for each additional key.
