Astrostart Remote FCC: J5F-TX2000 PN: 310-052-300-00, 310-052-452-00 Six Solid Buttons Green/Red LED

Extended warranty is available on the checkout page.

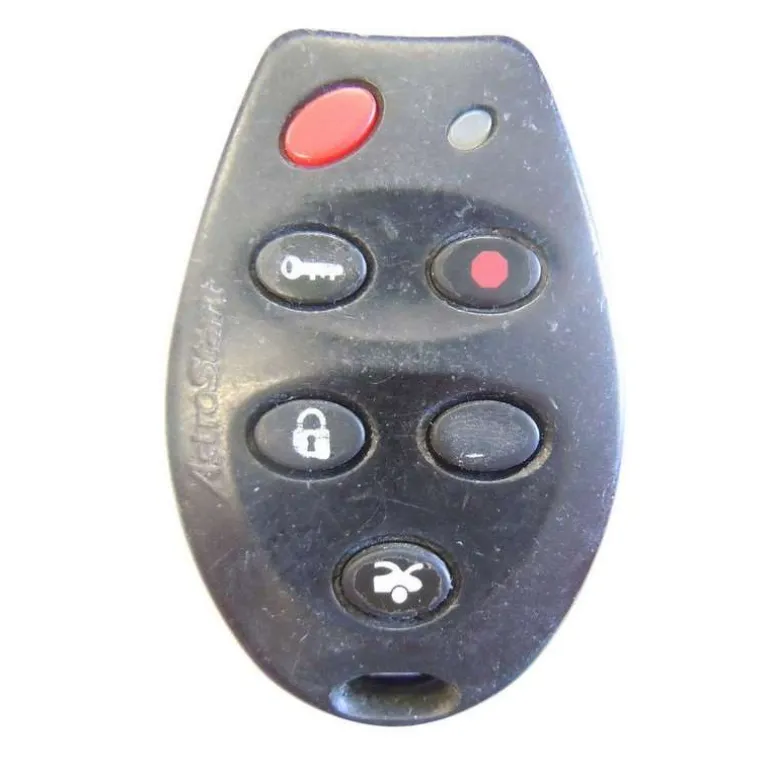

Remote with 6 Buttons Green/Red LED with Solid Buttons, No Sound

Brand: Astrostart

Condition: New

FCC ID: J5F-TX2000

Part Numbers: 310-052-300-00, 310-052-452-00

Four different remote controls can be programmed for a given vehicle. If a 5th remote is added the 1st is deleted. When the first code learned command is sent, all the old codes are cleared. Therefore, if you want to add a new remote, all the old ones must be programmed as well.

Programming procedure:
1. Open hood.
2. Place key in ignition and turn to RUN position.
3. Apply the brake once.
4. You now have 10 seconds to turn the key from RUN to STOP position 3
times.
5. If this sequence is correctly carried out, the control module flashes
parking lights.
6. Press any button on the new remote control (except the panic button).
When access code of new remote is memorized, the control module will
respond with 1 flash of the parking lights.
7. Repeat the above procedures for each remote control that has to be
programmed, up to four remotes.
8. Apply the brake.
9. New remotes are ready and now added to the system.
